Master Switch Test

Remove power window master switch. See MASTER POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See appropriate POWER WINDOW SWITCH CONTINUITY TEST table.

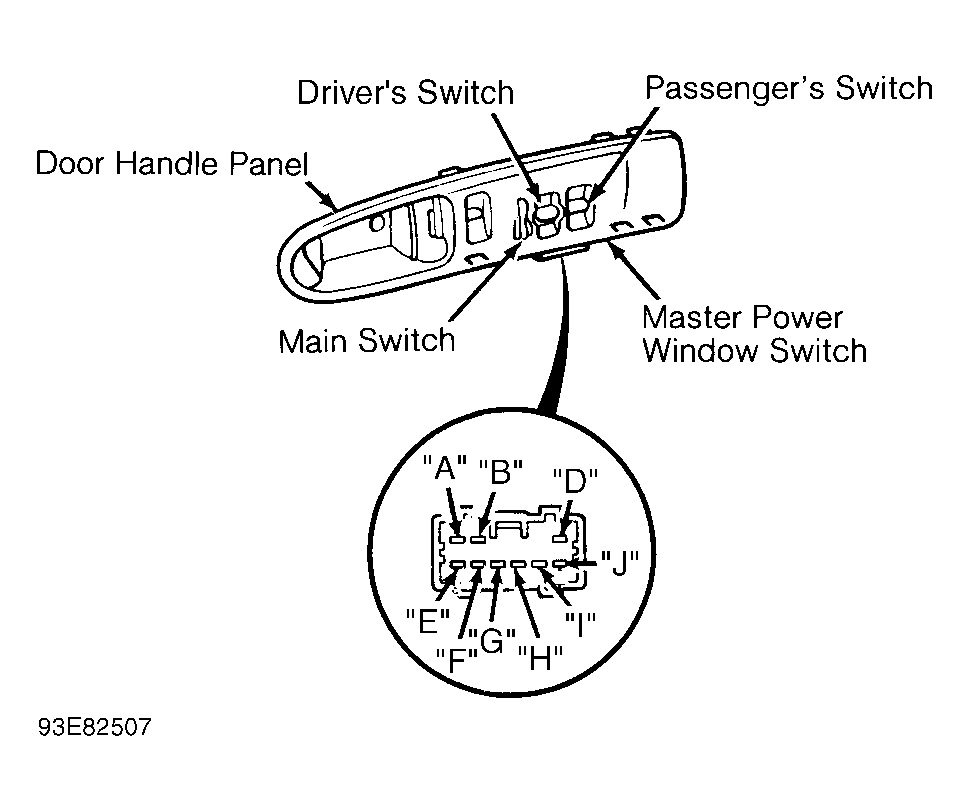

Fig 1: Identifying Power Window Switch Terminals (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

POWER WINDOW MASTER SWITCH TEST

Position

Main Switch

Pin Continuity

Driver's Switch

Off

⁽¹⁾

"B", "E" & "F"

⁽¹⁾

"F" & "G"

Down

⁽¹⁾

"E" & "G"

Down (AUTO)

⁽¹⁾

"E" & "G"

Passenger's Switch

Off

"A", "I" & "J"

Off

"I" & "J"

"D" & "I"; "A" & "J"

Off

"D" & "I"

Down

"A" & "I"; "D" & "J"

Off

"D" & "J"

⁽¹⁾	- Main switch position does not affect driver's switch operation.
