Passenger's Window Switch Test

Remove power window master switch. See MASTER POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. See Fig 1 . See appropriate POWER WINDOW PASSENGER SWITCH CONTINUITY TEST table.

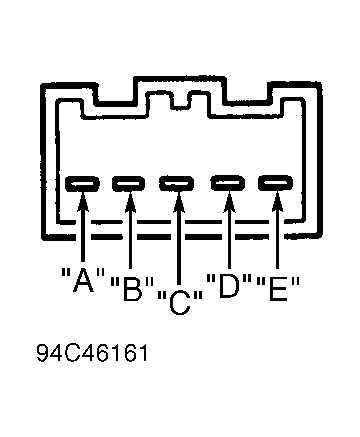

Fig 1: Passenger Power Window Switch Terminal ID (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

PASSENGER'S POWER WINDOW SWITCH TEST

Position		Pin Continuity
Prelude
Off		"B" & "C"; "D" & "E"
Up		"A" & "D"
Down		"A" & "C"
