Hazard Warning Switch Test

Remove center console trim panel. Remove retaining screw from switch. Slowly rotate switch clockwise and remove from console. Disconnect 6-pin connector. With hazard switch in specified position, use an ohmmeter to check continuity between switch terminals. See Fig 1 . If continuity is not as specified, replace hazard warning switch.

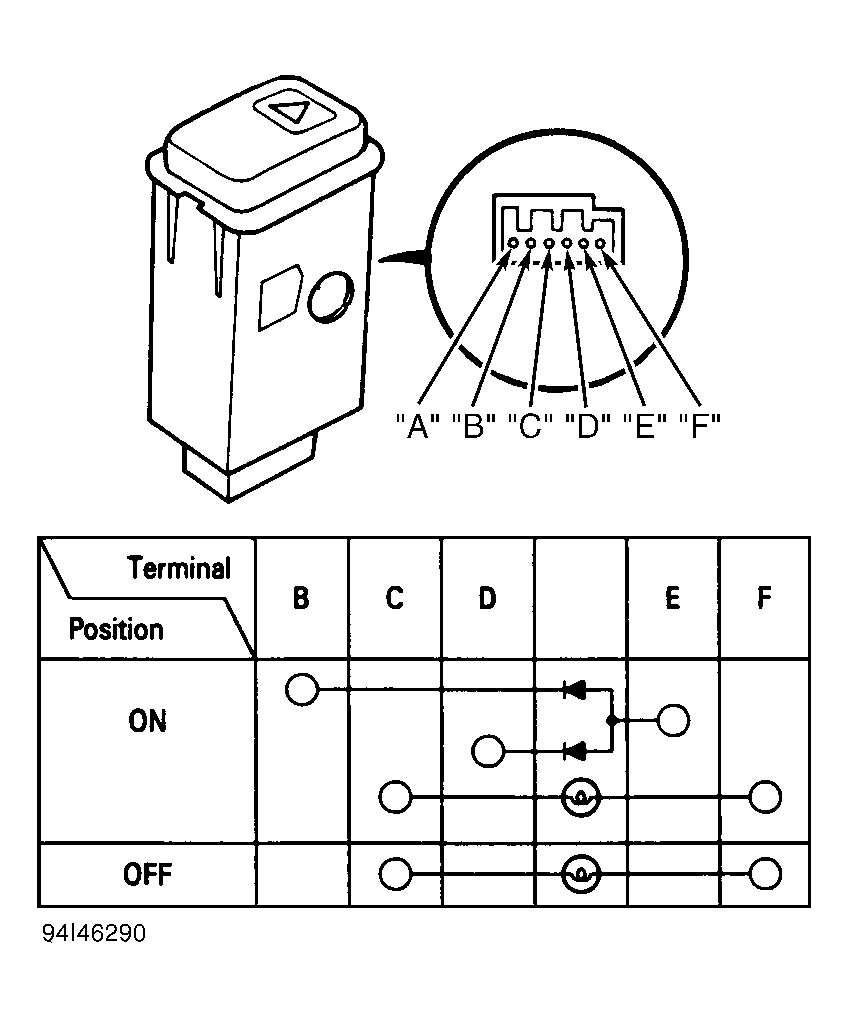

Fig 1: Testing Hazard Warning Switch (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
