Code 15 - Ignition Output Signal

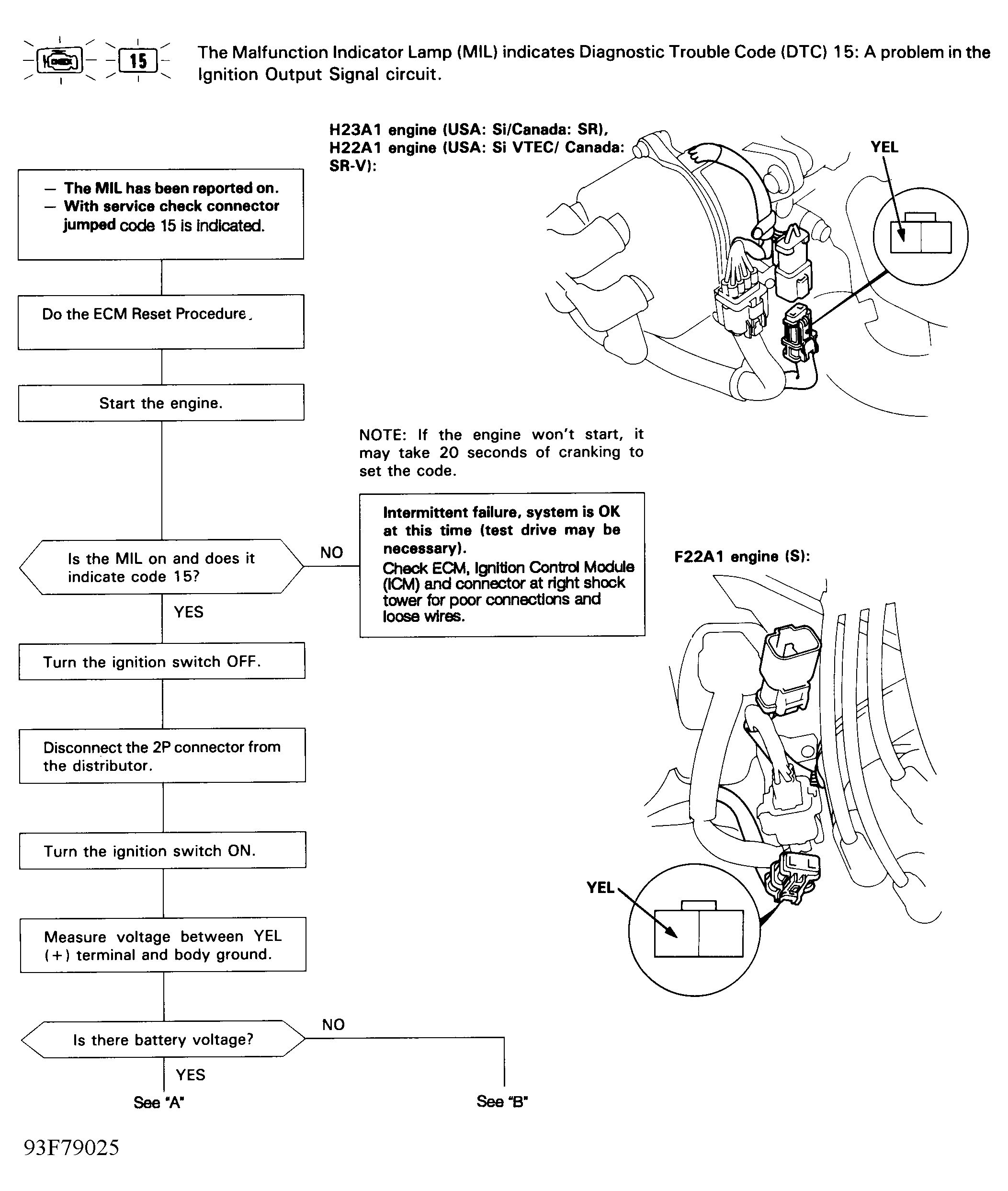

Fig 1: Code 15 Flow Chart (1 Of 2) Ignition Output Signal
G93F79025

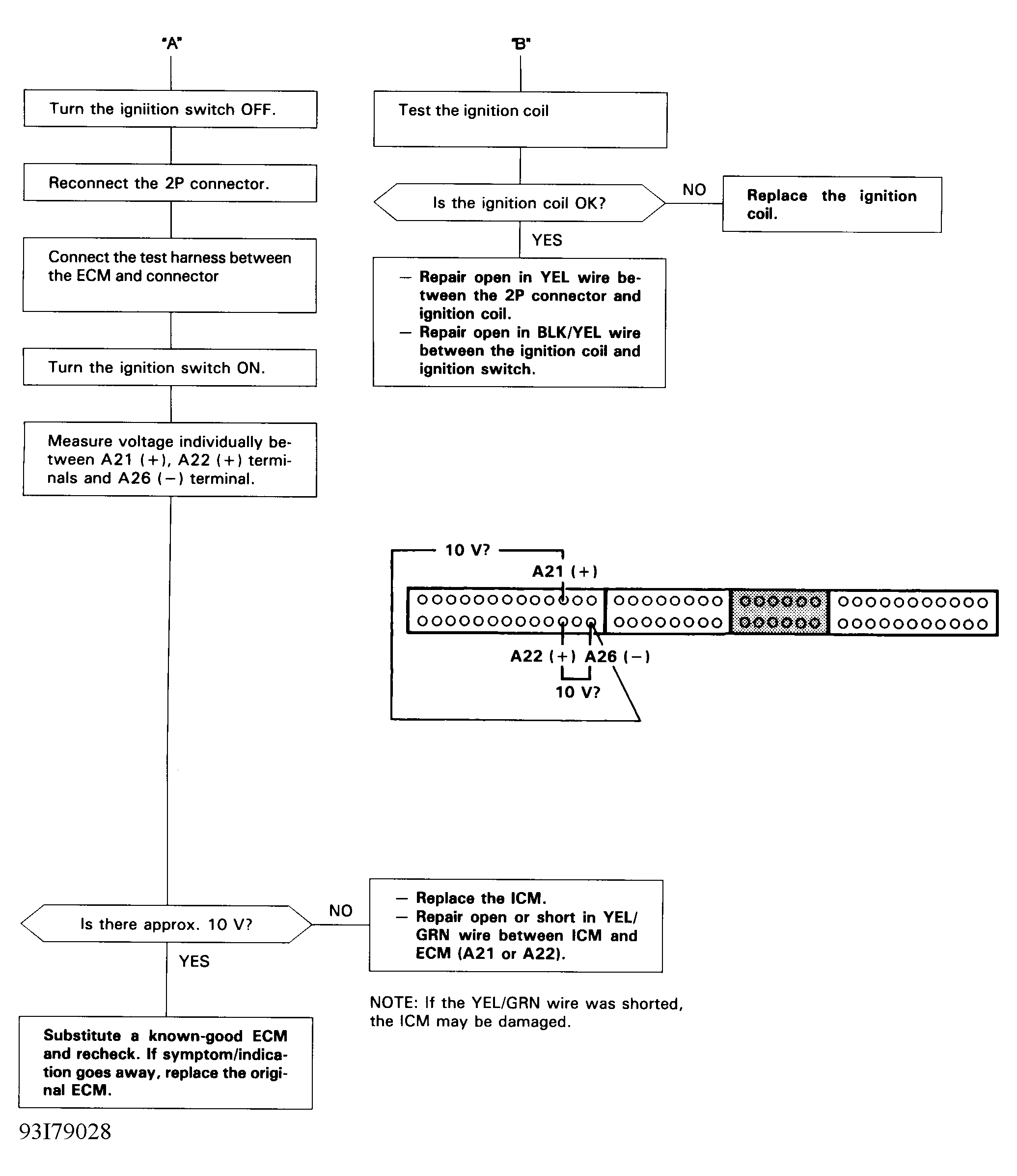

Fig 2: Code 15 Flow Chart (2 Of 2) Ignition Output Signal
G93I79028
