Engine Control Module

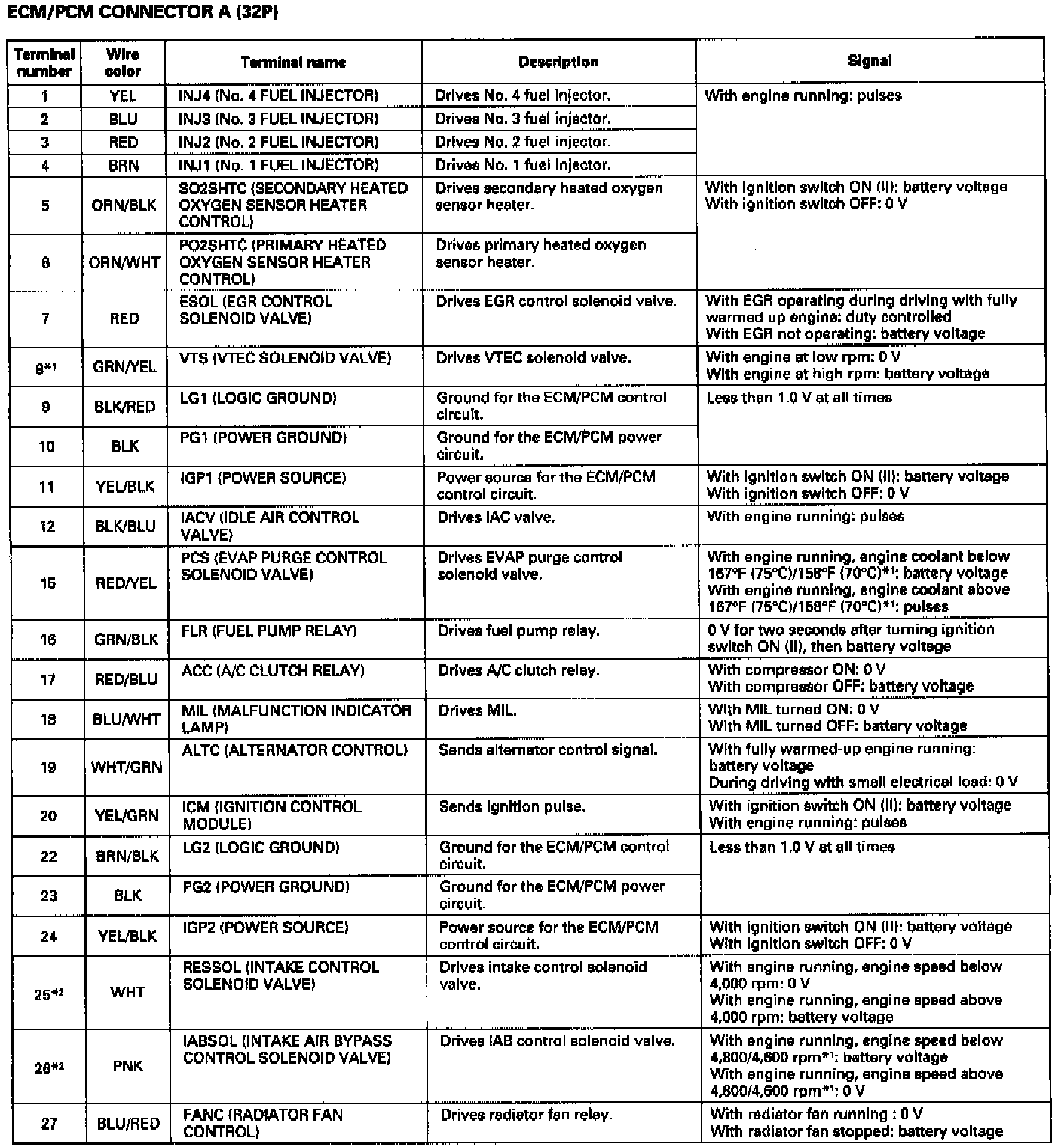

ECM/PCM CONNECTOR A (32P)

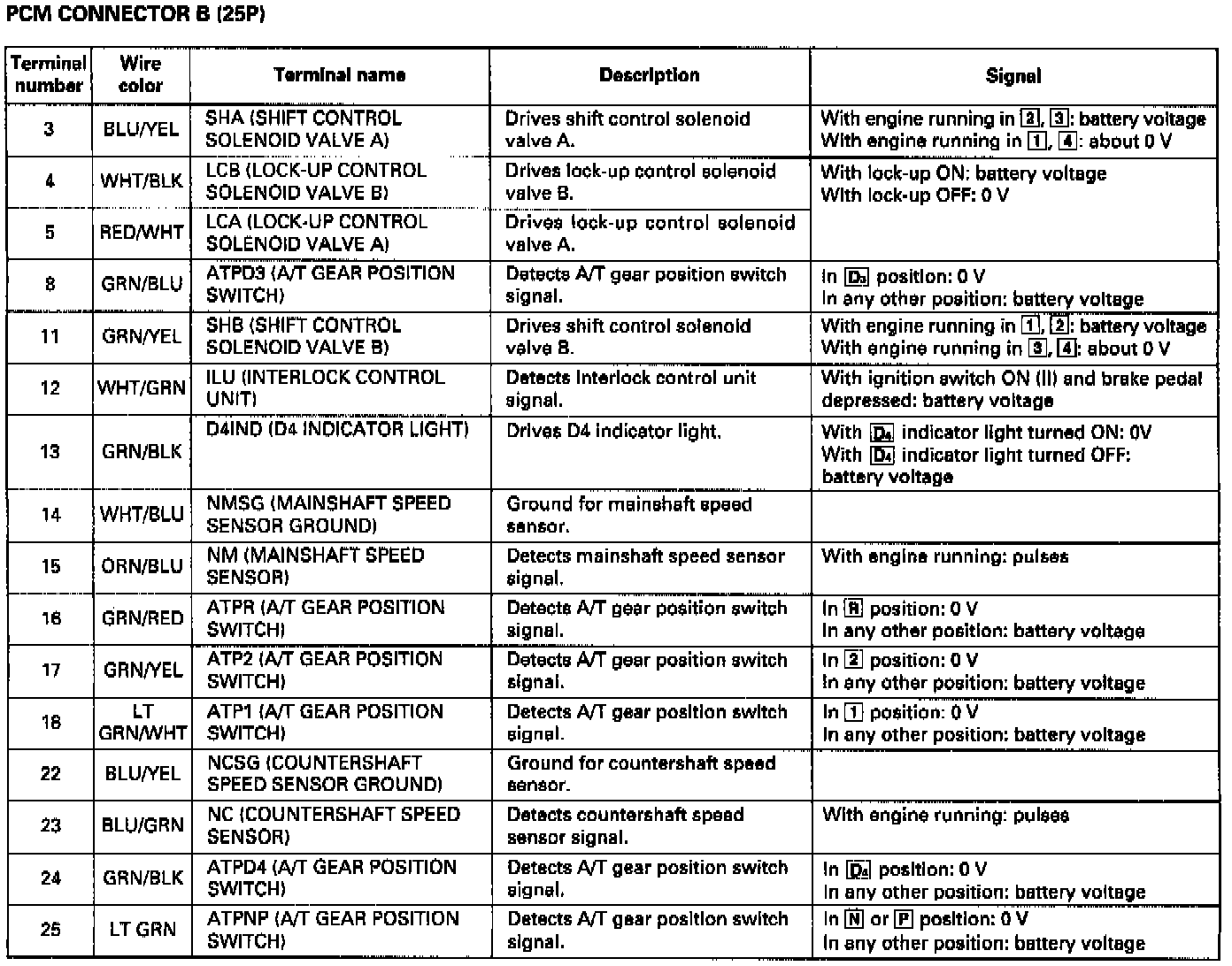

ECM/PCM CONNECTOR B (25P)

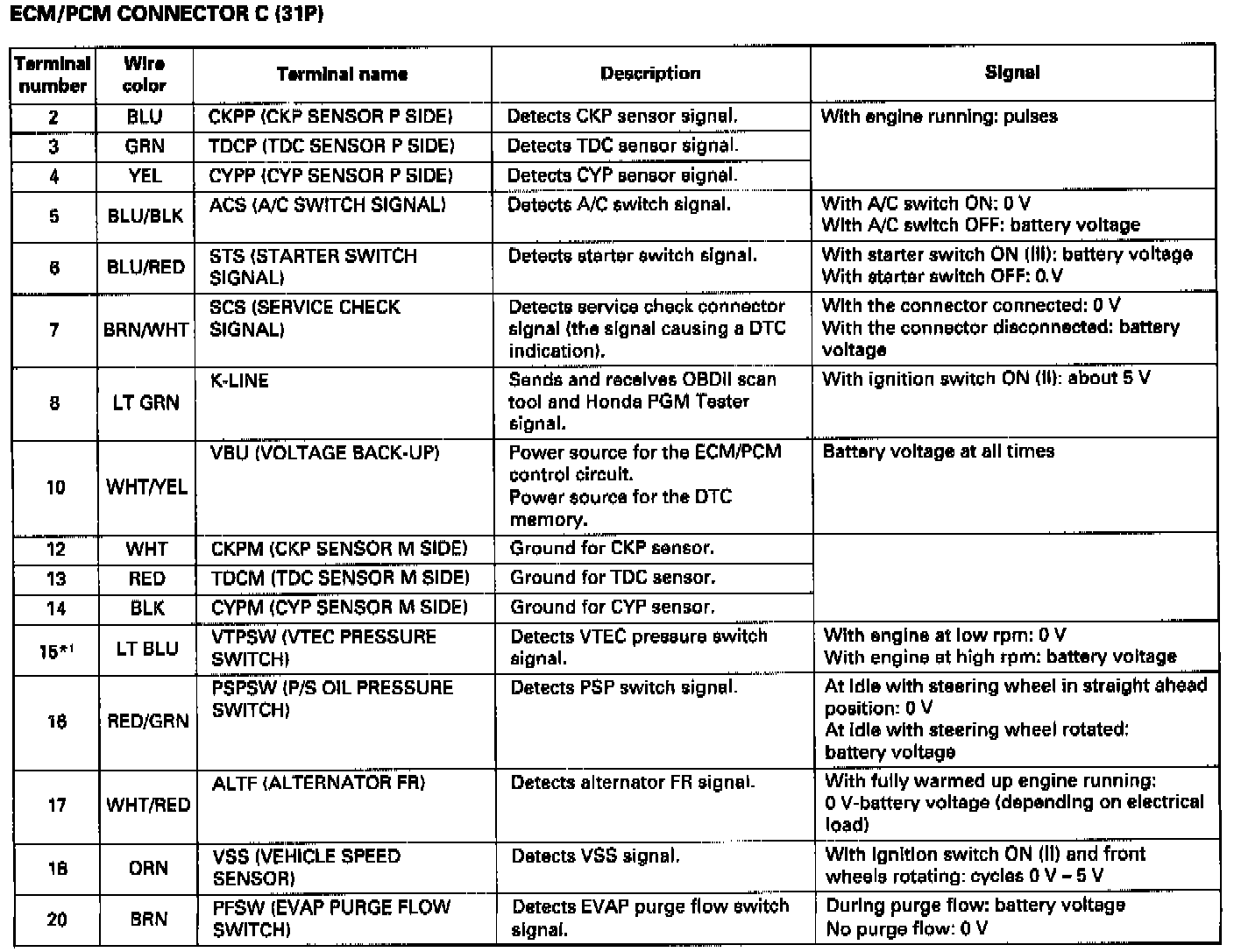

ECM/PCM CONNECTOR C (31P)

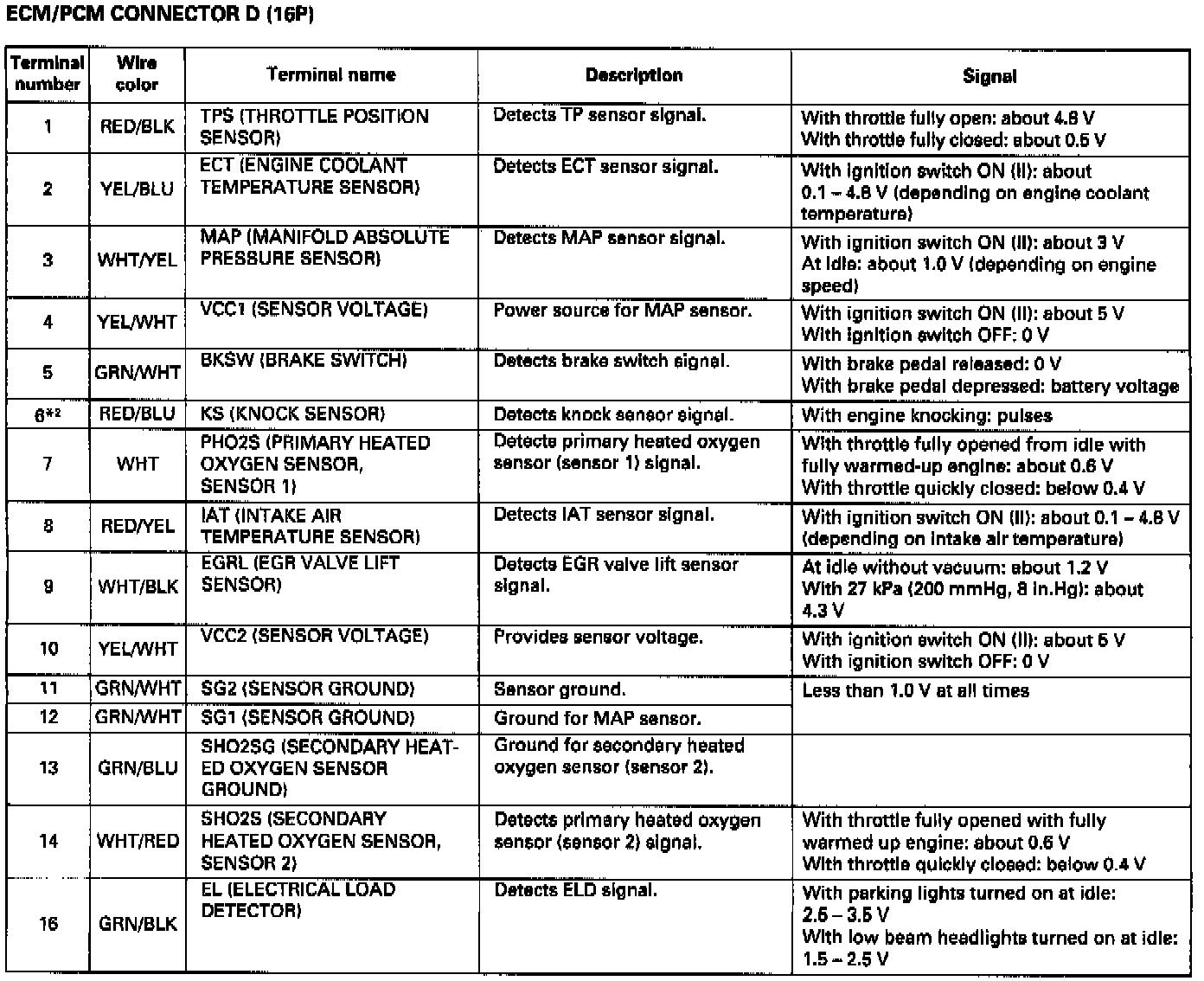

ECM/PCM CONNECTOR D (16P)

NOTE: Standard battery voltage is 12 V.

*1: H22A1 engine (USA: Si VTEC/Canada: SR-V)
*2: Except F22A1 engine (S)
