DTC P1361 - '01 Model: TDC Sensor 1 Circuit Intermittent Interruption, DTC P1362 - '01 Model: TDC Sensor 1 Circuit No Signal, DTC P1366 - '01 Model: TDC Sensor 2 Circuit Intermittent Interruption, DTC P1367 - '01 Model: TDC Sensor 2 Circuit No Signal

  1. Reset the PCM (see HOW TO RESET THE PCM ).
  2. Start the engine.

    Is DTC P1361, P1362, P1366, or P1367 indicated?

    1. YES:  Go to step 3.
    2. NO:  Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the TDC1/TDC2 sensor and the PCM.
  3. Turn the ignition switch OFF.
  4. Disconnect the TDC1/TDC2 sensor 4P connector.
  5. Measure resistance between the terminals of indicated sensor (see table).

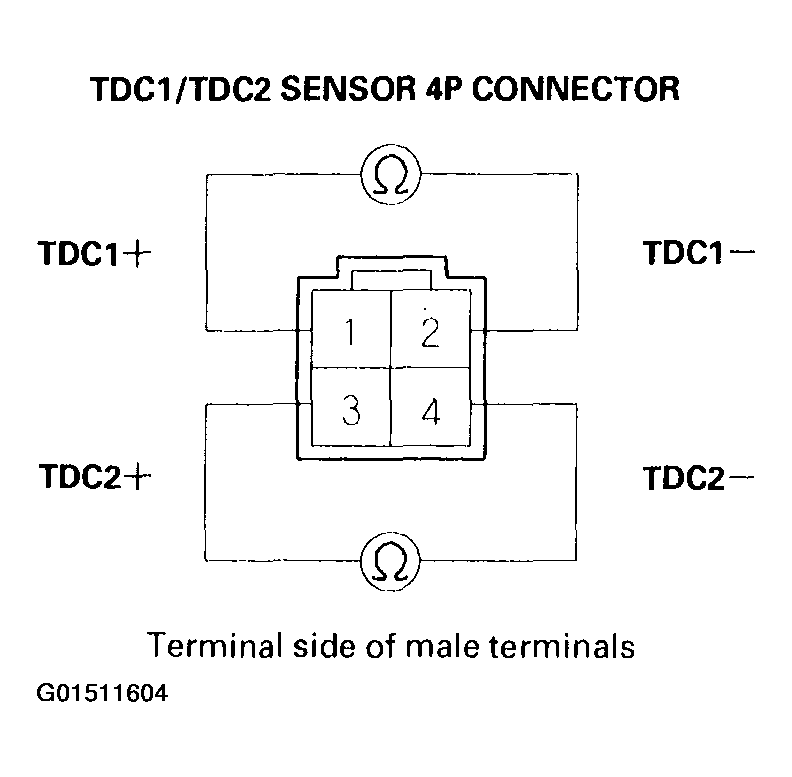

    Fig 1: Measuring Resitance Between Terminals TDC1/TDC2 (1 Of 2)
    G01511604Courtesy of AMERICAN HONDA MOTOR CO., INC.

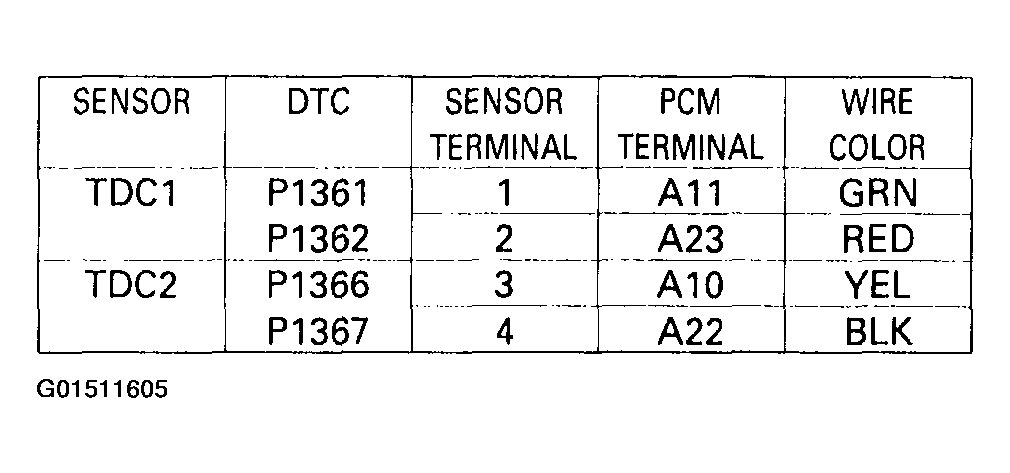

    Fig 2: Measuring Resitance Between Terminals TDC1/TDC2 (2 Of 2)
    G01511605Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there 1,850-2,450 ohms?

    1. YES:  Go to step 6.
    2. NO:  Replace the TDC1/TDC2 sensor (see CMP (TDC) Sensor Replacement ).
  6. Check for continuity to body ground on both terminals of the indicated sensor individually.

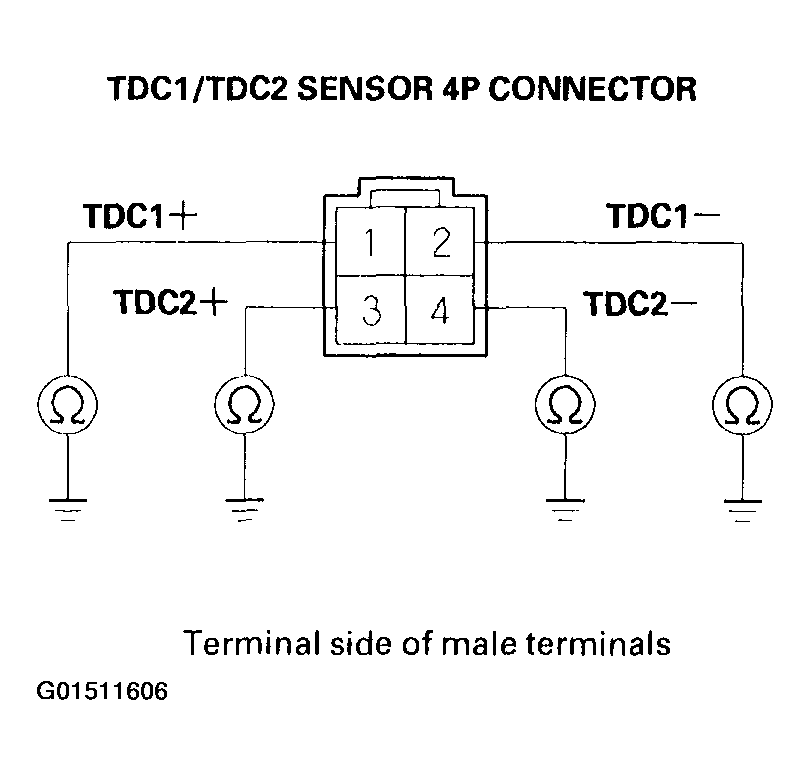

    Fig 3: Checking For Continuity To Body Ground On Both Terminals Of The Indicated Sensor Individually
    G01511606Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity ?

    1. YES:  Replace the TDC1/TDC2 sensor (see CMP (TDC) Sensor Replacement ).
    2. NO:  Go to step 7.
  7. Reconnect the TDC1/TDC2 sensor 4P connector.
  8. Disconnect PCM connector A (31P).
  9. Measure resistance between the terminals of the indicated sensor on the PCM connector (see table).

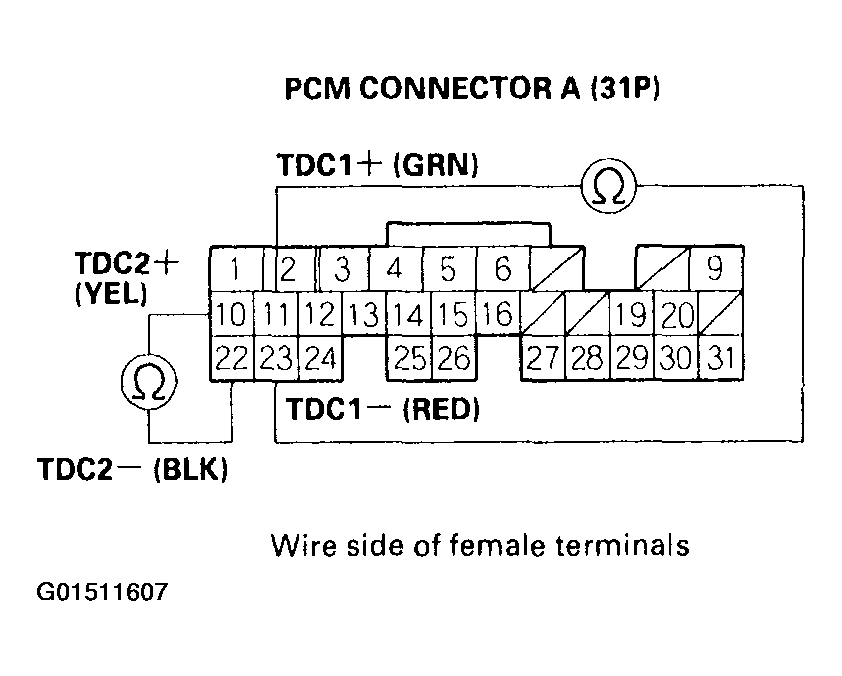

    Fig 4: Measuring Resitance Between Terminals TDC1/TDC2 (1 Of 2)
    G01511607Courtesy of AMERICAN HONDA MOTOR CO., INC.

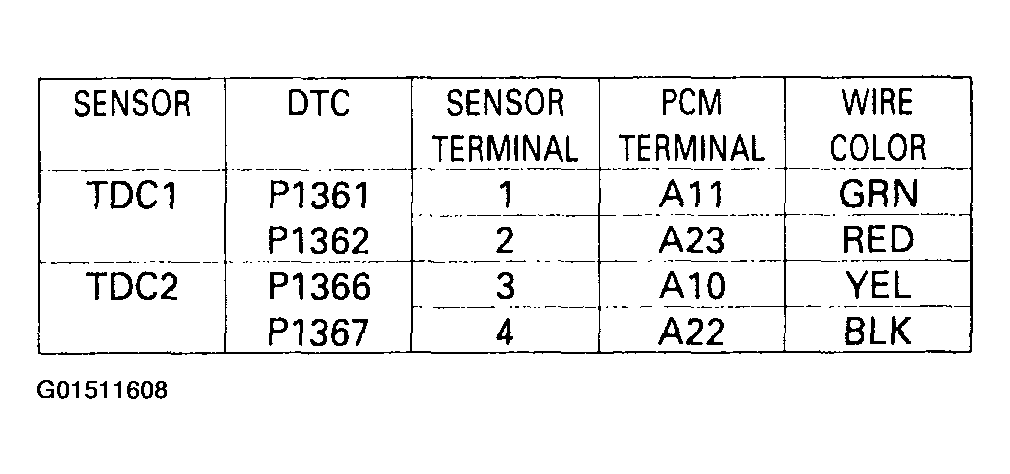

    Fig 5: Measuring Resitance Between Terminals TDC1/TDC2 (2 of 2)
    G01511608Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there 1,850-2,450 ohms?

    1. YES:  Go to step 10.
    2. NO:  Repair open in the indicated sensor wires (see table).
  10. Check for continuity between body ground and PCM connector terminal A10 and/or A11 individually.

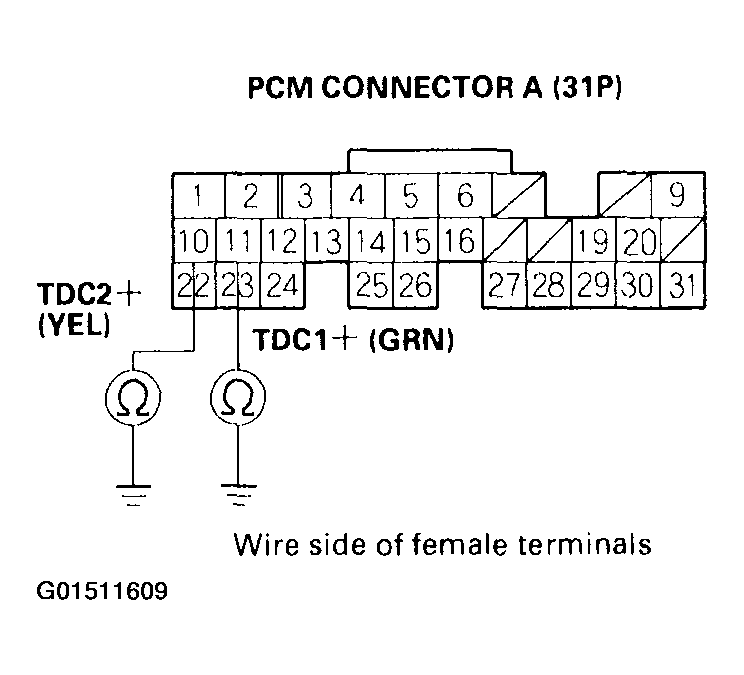

    Fig 6: Checking For Continuity Between Body Ground & PCM Connector Terminal A10 And/Or A11 Individually
    G01511609Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES:  Repair short in the indicated sensor wires (see table).
    2. NO:  Substitute a known-good PCM and recheck (see HOW TO SUBSTITUTE THE PCM FOR TESTING PURPOSE ). If the symptom/indication goes away, replace the original PCM.
