Frame Repair Chart
>>
Top View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Top View

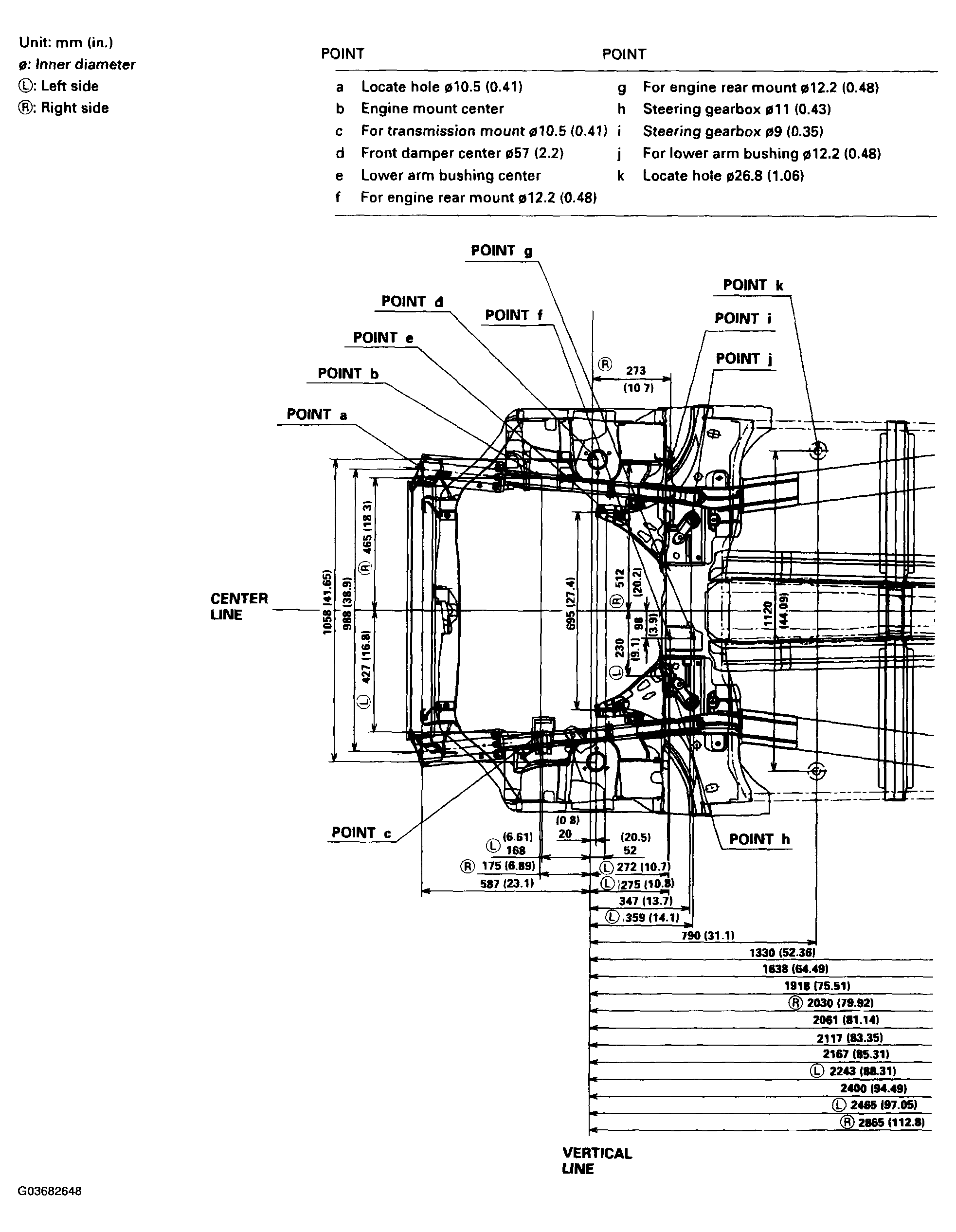

Fig 1: Identifying Top View Frame (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

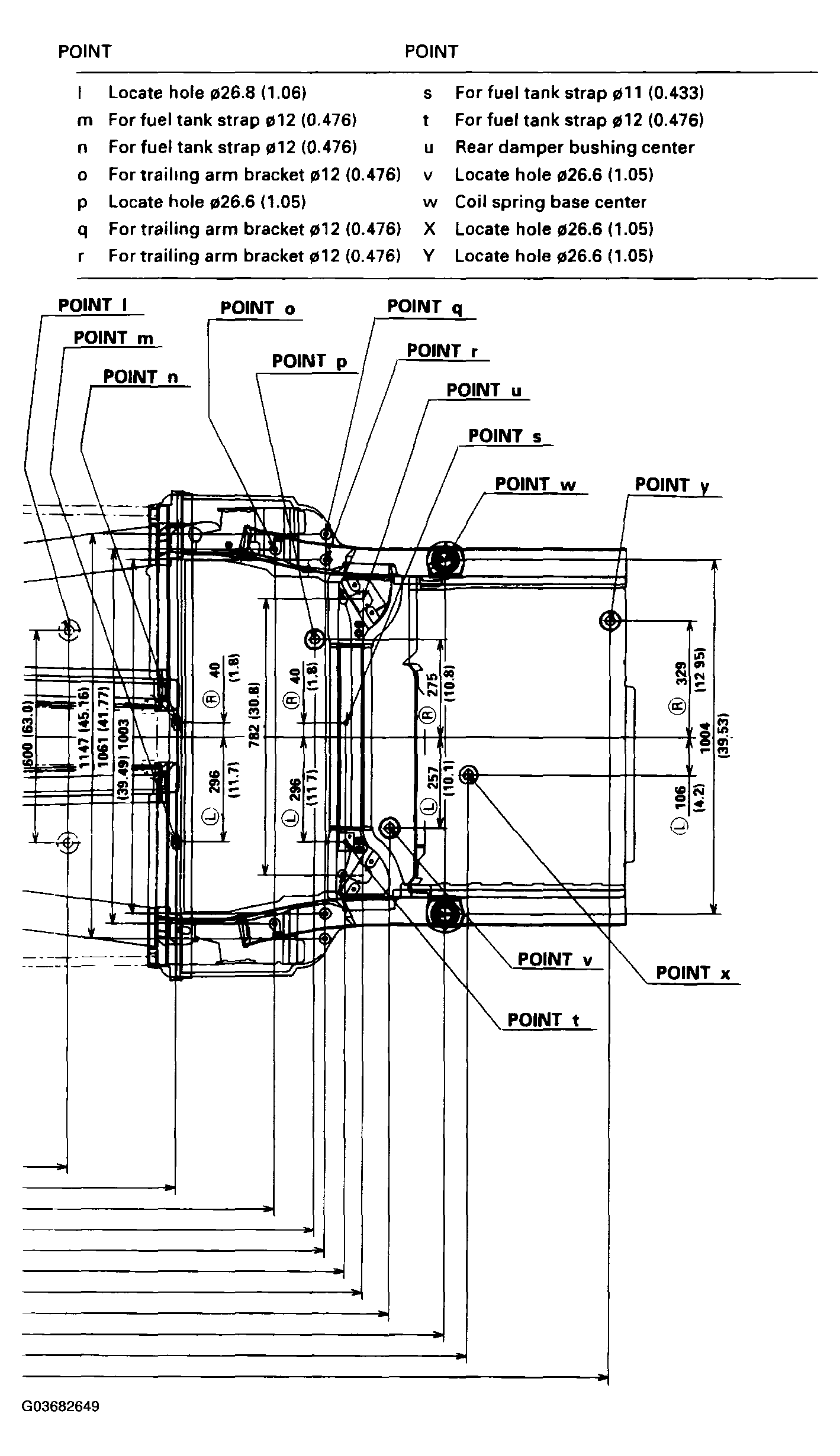

Fig 2: Identifying Top View Frame (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
