IMA Case Replacement
NOTE:
IMA wires are located in this area. Make sure you read the Service Precautions (see SERVICE PRECAUTIONS
) before performing repairs or service.
NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the body.
- Remove these items:
- Battery module (see BATTERY MODULE REMOVAL/INSTALLATION )
- PCU (see POWER CONTROL UNIT (PCU) REMOVAL/INSTALLATION )
- Rear trim panel (see TRIM REMOVAL/INSTALLATION - CARGO AREA )
- Quarter trim panel (see TRIM REMOVAL/INSTALLATION - REAR QUARTER PANEL AREA )
- Middle floor panel (see MIDDLE FLOOR PANEL REPLACEMENT )

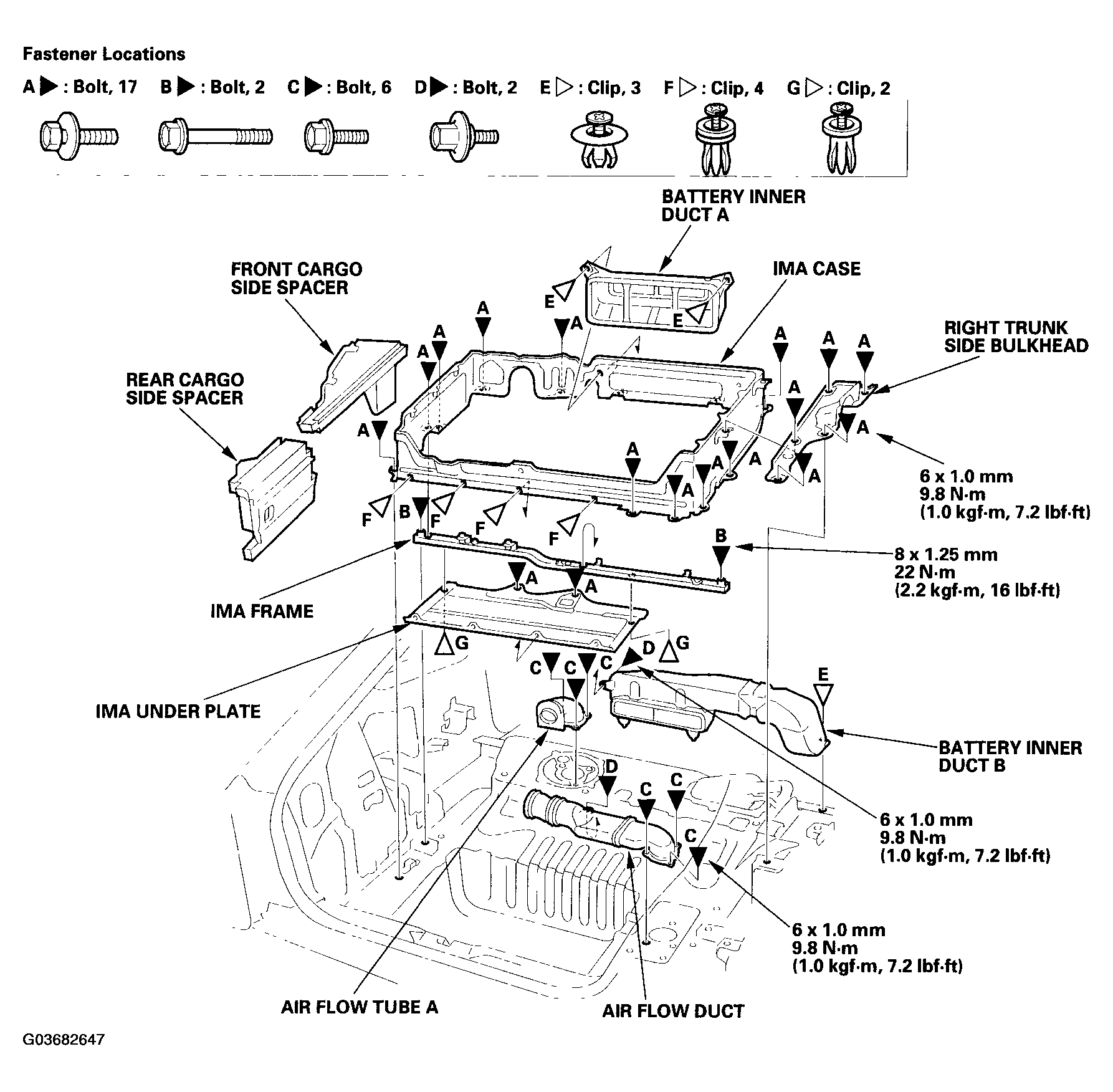

- Remove the IMA case as shown.
- Install the IMA case in the reverse order of removal, and check for damaged or stress-whitened clips, and replace them with new ones.
