DTC P0340 - '03-04 Models: CMP Sensor A No Signal, DTC P0341 - '03-04 Models: CMP Sensor A Intermittent Interruption, DTC P0365 - '03-04 Models: CMP Sensor B No Signal, DTC P0366 - '03-04 Models: CMP Sensor B Intermittent Interruption

  1. Reset the PCM (see HOW TO RESET THE PCM ).
  2. Start the engine.

    Is DTC P0340, P0341, P0365, or P0366 indicated?

    1. YES:  Go to step 3.
    2. NO:  Intermittent failure, system is OK at this time. Check for poor connections or loose terminals at the CMP sensor A/B and at the PCM.
  3. Turn the ignition switch OFF.
  4. Disconnect the CMP sensor A/B 4P connector.
  5. Measure resistance between the terminals of the indicated sensor (see table).

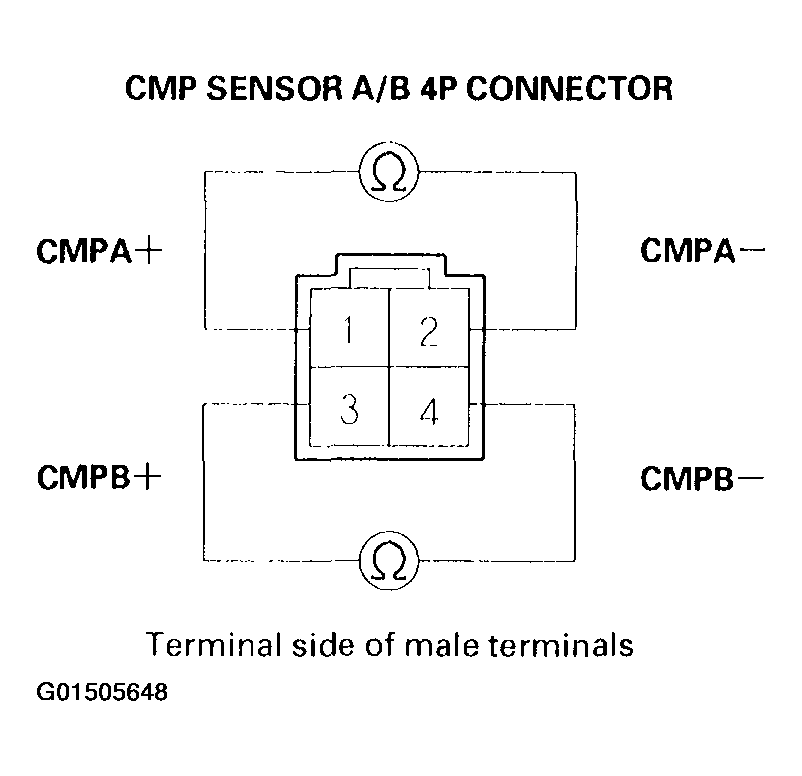

    Fig 1: Measuring Resistance Between The Terminals Of The Indicated Sensor (1 Of 2)
    G01505648Courtesy of AMERICAN HONDA MOTOR CO., INC.

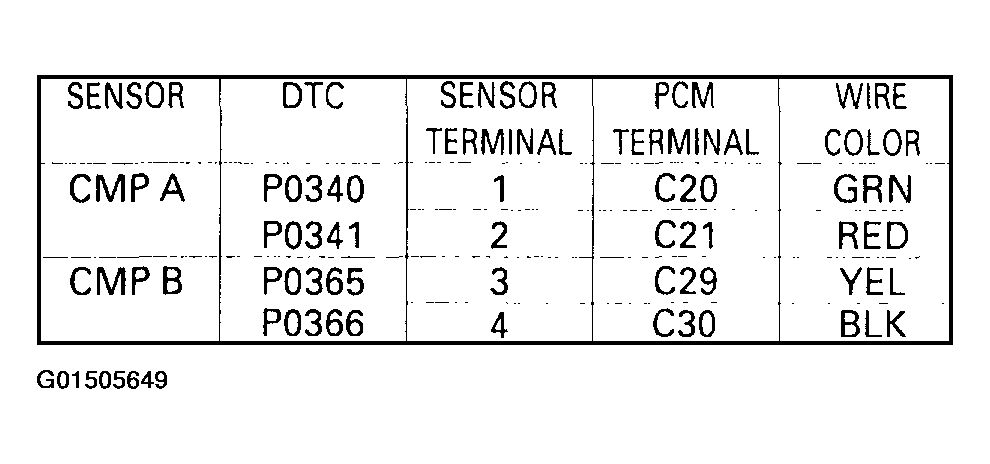

    Fig 2: Measuring Resistance Between The Terminals Of The Indicated Sensor (2 Of 2)
    G01505649Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there 1,850-2,450 k ohms?

    1. YES:  Go to step 6.
    2. NO:  Replace the CMP sensor A/B (see CMP (TDC) Sensor Replacement ).
  6. Check for continuity to body ground on both terminals of the indicated sensor individually.

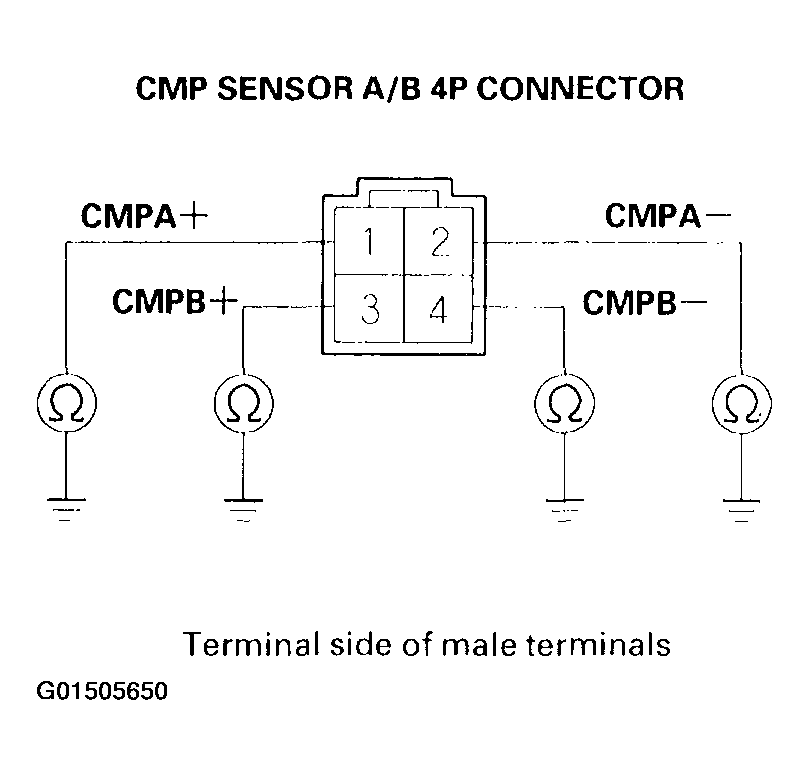

    Fig 3: Checking For Continuity To Body Ground On Both Terminals Of The Indicated Sensor Individually
    G01505650Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES:  Replace the CMP sensor A/B (see CMP (TDC) Sensor Replacement ).
    2. NO:  Go to step 7.
  7. Reconnect the CMP sensor A/B 4P connector.
  8. Disconnect PCM connector C (31P).
  9. Measure resistance between the terminals of the indicated sensor on the PCM connector.

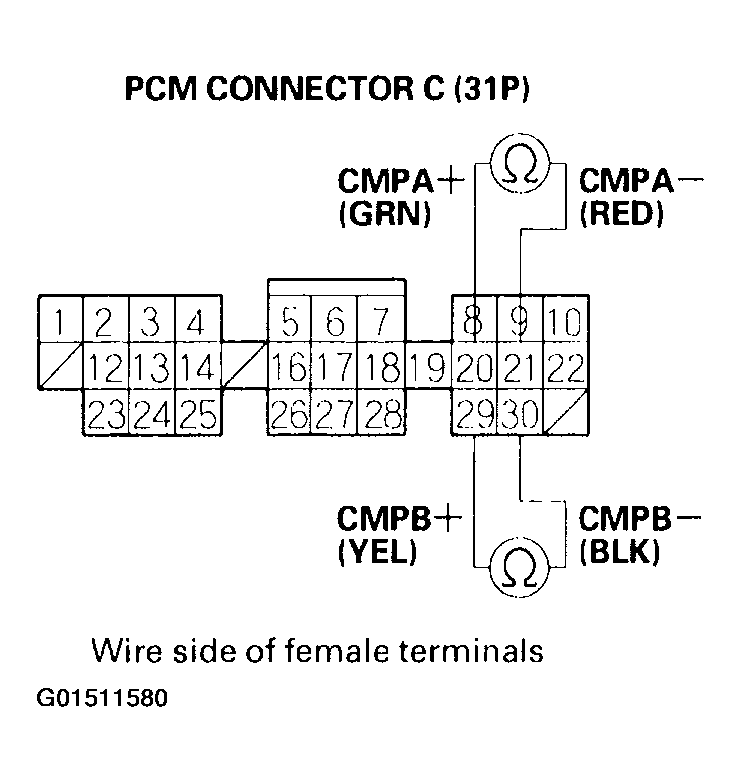

    Fig 4: Measuring Resistance Between The Terminals Of The Indicated Sensor On The PCM Connector (1 Of 2)
    G01511580Courtesy of AMERICAN HONDA MOTOR CO., INC.

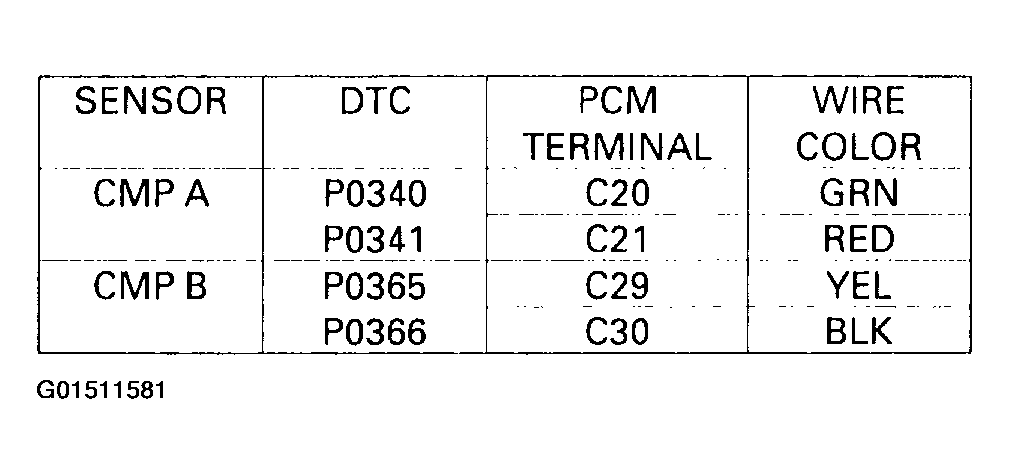

    Fig 5: Measuring Resistance Between The Terminals Of The Indicated Sensor On The PCM Connector (2 Of 2)
    G01511581Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there 1,850-2,450 ohms?

    1. YES:  Go to step 10.
    2. NO:  Repair open in the indicated sensor wires (see table).
  10. Check for continuity between body ground and PCM connector terminals C20 and/or C29 individually.

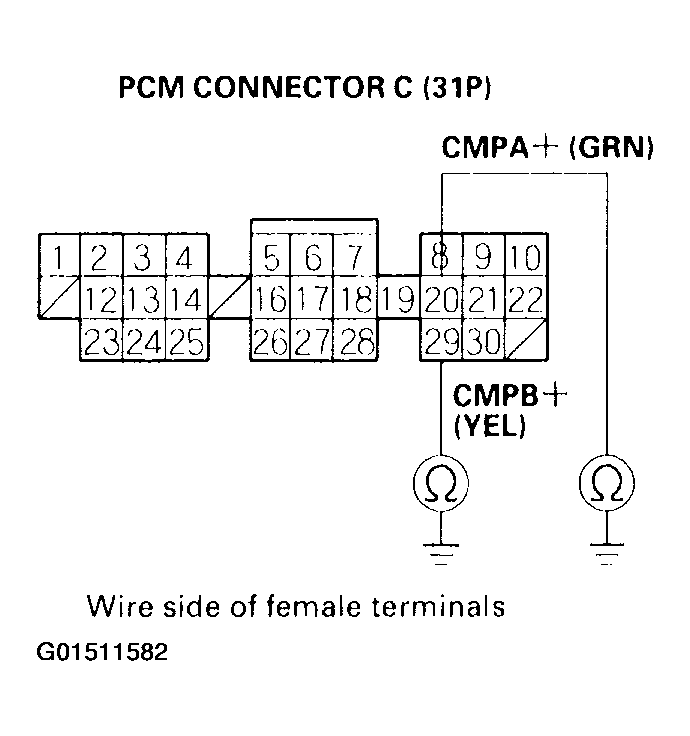

    Fig 6: Checking For Continuity Between Body Ground & PCM Connector Terminals C20 And/Or C29 Individually
    G01511582Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is there continuity?

    1. YES:  Repair short in the indicated sensor wires.
    2. NO:  Substitute a known-good PCM and recheck (see HOW TO SUBSTITUTE THE PCM FOR TESTING PURPOSE ). If the symptom/indication goes away, replace the original PCM.
