Keyless or Keyless and Security Control Unit (LX); Security Control Unit ('99-'00 EX) (Honda Accessory) Connector End View

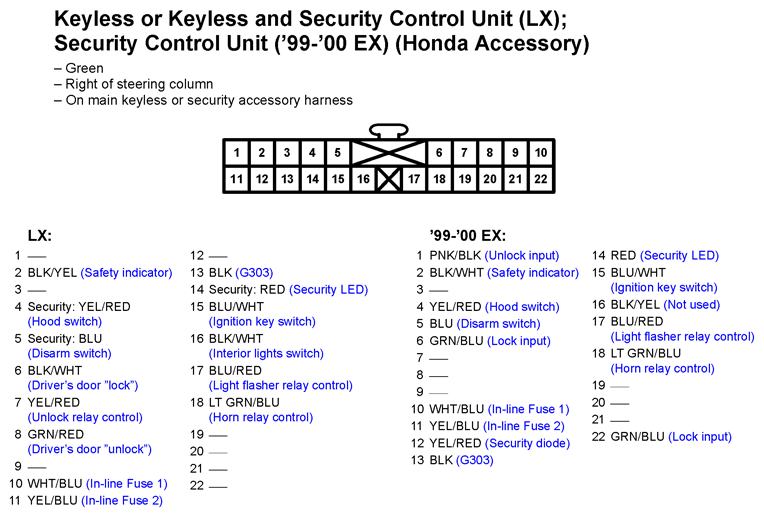

Fig 1: Keyless or Keyless and Security Control Unit (LX); Security Control Unit ('99-'00 EX) (Honda Accessory) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.
