System Structure: Indicators
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

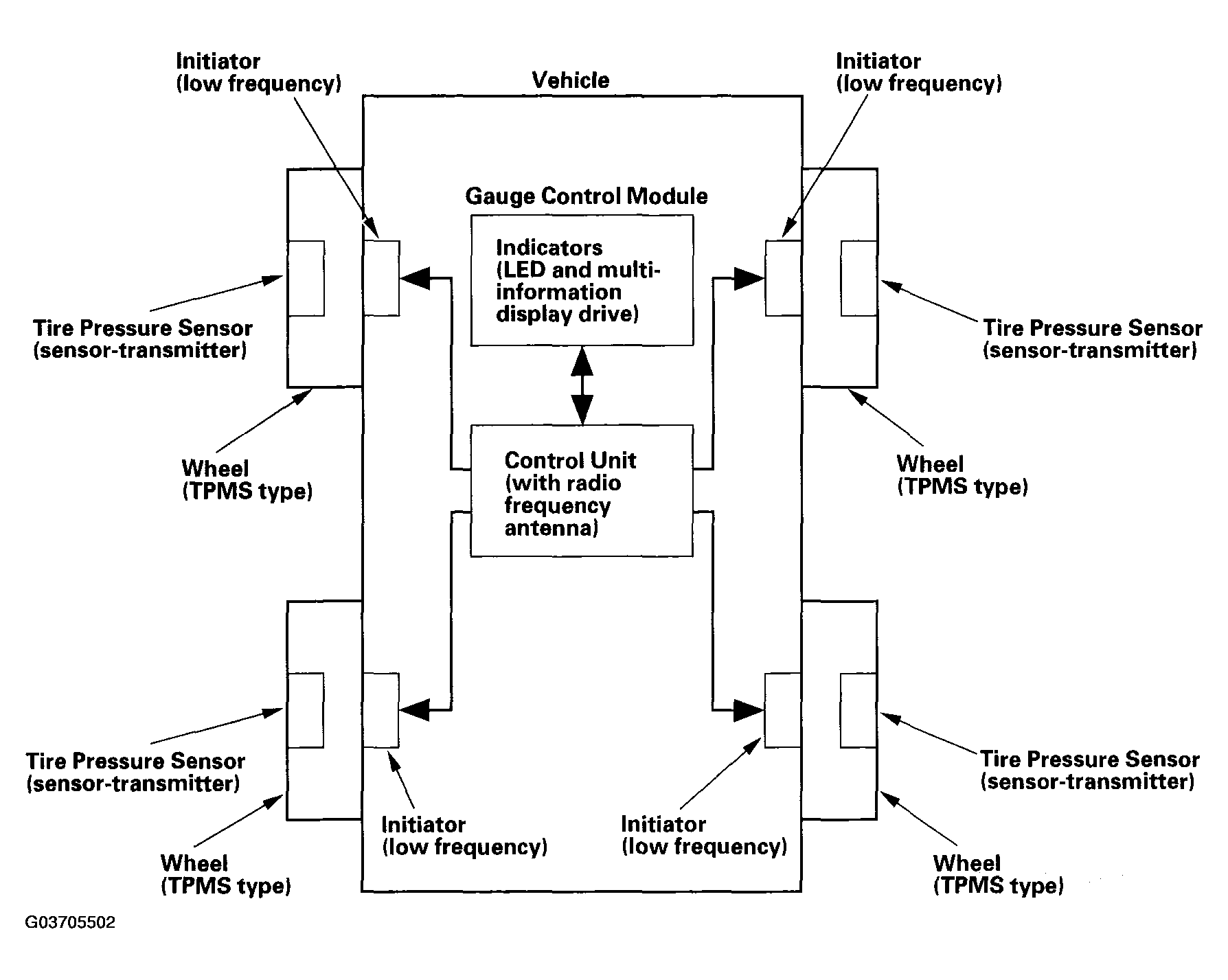

All indicators are in the gauge control module: The low pressure indicator (LED indicator), tire(s) indicators (on the multi-information display) to show which tire is affected, and the TPMS indicator (on the multi-information display) that comes on only if there's a problem with the system. When two or more tire pressures are low, the low pressure indicator comes on about 5 seconds before the appropriate tire(s) indicator. Once low pressure is detected, the system scans all four pressure sensors to ensure that it turns on the correct tire indicator.
