TPMS Control Unit Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the TPMS control unit mounting bracket is not bent or twisted as this may affect its communication with the initiators and the tire pressure sensors.

Remove the headliner (see HEADLINER REMOVAL/INSTALLATION ).
Disconnect the TPMS control unit connectors (A).

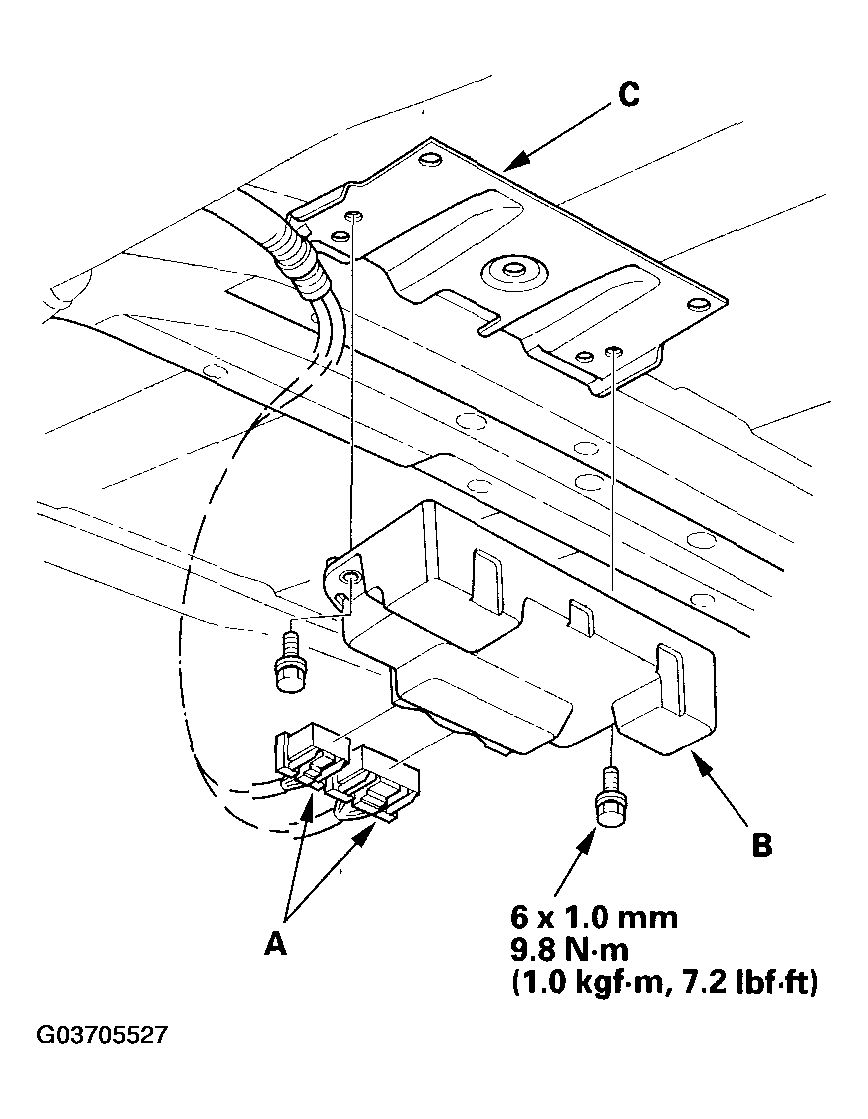

Fig 1: Disconnecting TPMS Control Unit Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the TPMS control unit (B) from the bracket (C).
Install the TPMS control unit in the reverse order of removal.
Connect the HDS, and memorize the pressure sensor IDs (see MEMORIZING A TIRE PRESSURE SENSOR ID ). Do not memorize the IDs automatically.
