Pressure intensifying mode

TCS NO valve closed, TCS NC valve open, inlet valve open, outlet valve closed, pump motor ON.

The reservoir and master cylinder fluid is pumped out by the pump, through the damping chamber, to the front caliper.

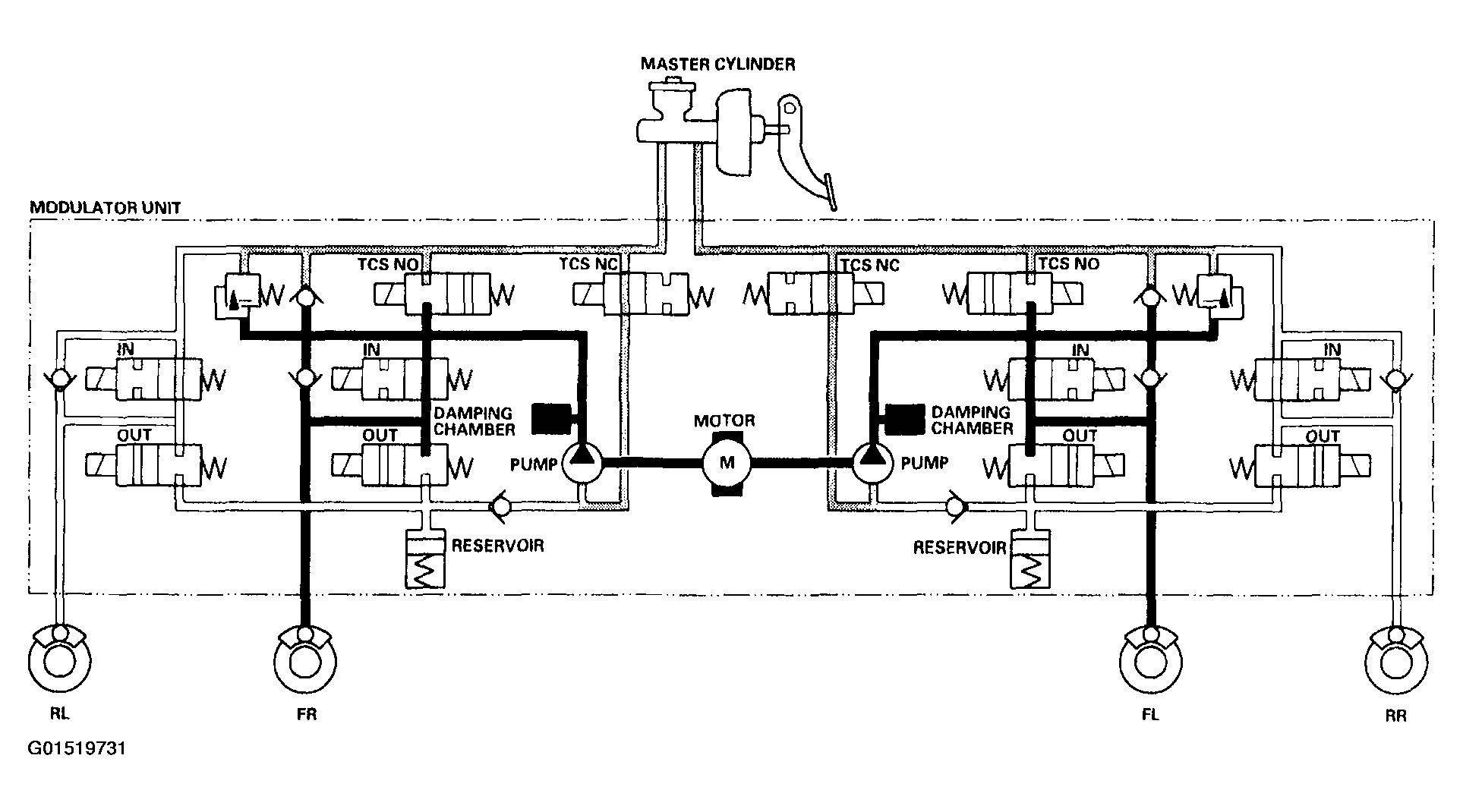

Fig 1: Pressure Intensifying Mode Fluid Schematic

Courtesy of AMERICAN HONDA MOTOR CO., INC.
