Pressure reducing mode

TCS NO valve closed, TCS NC valve open, front inlet valve closed, front outlet valve open, pump motor ON.

Caliper fluid flows through the outlet valve to the reservoir.

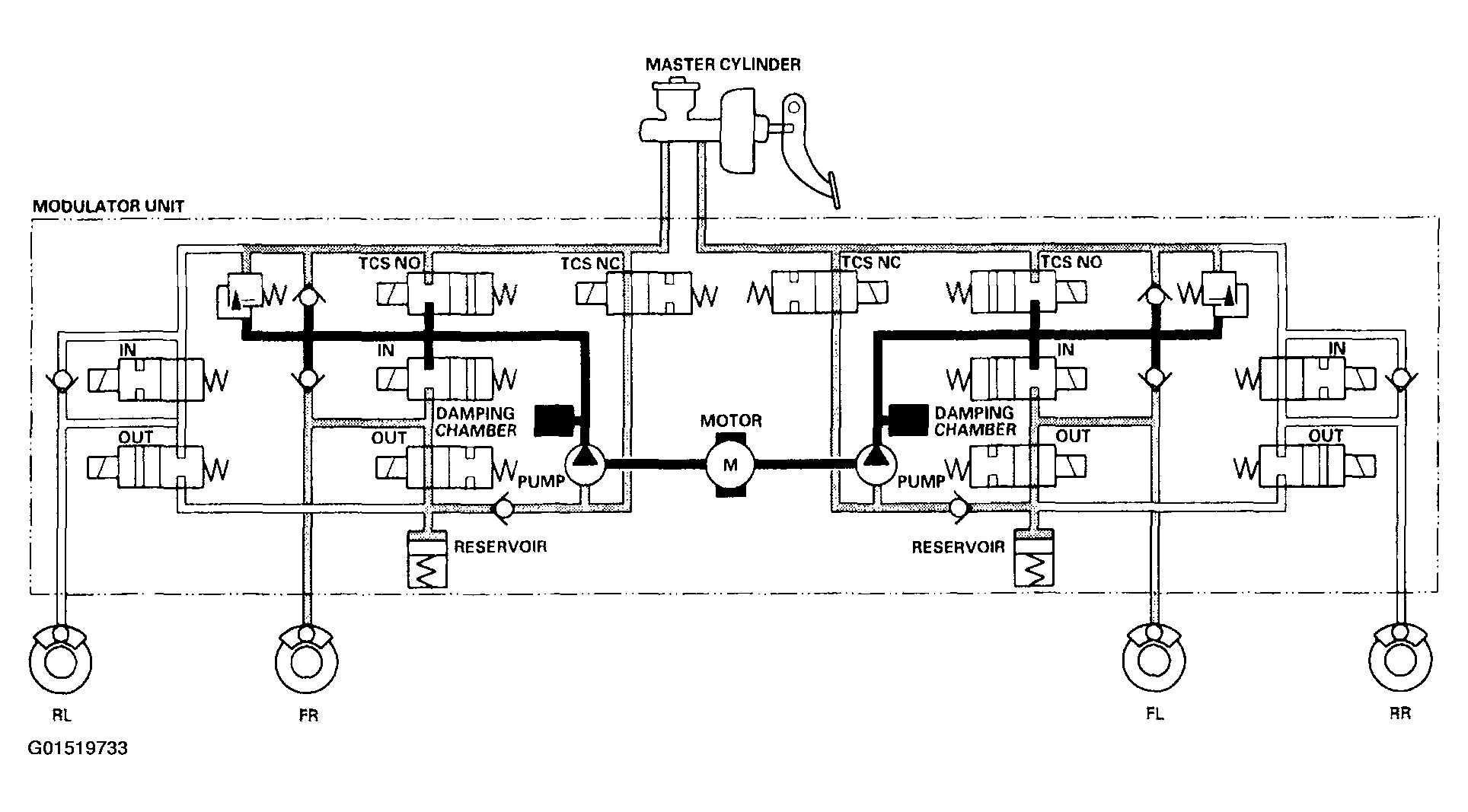

Fig 1: Pressure Reducing Mode Fluid Schematic

Courtesy of AMERICAN HONDA MOTOR CO., INC.
