Pressure retaining mode

TCS NO valve closed, TCS NC valve open, inlet valve closed, outlet valve closed, pump motor ON.

Front caliper fluid is retained by the inlet valve and outlet valve.

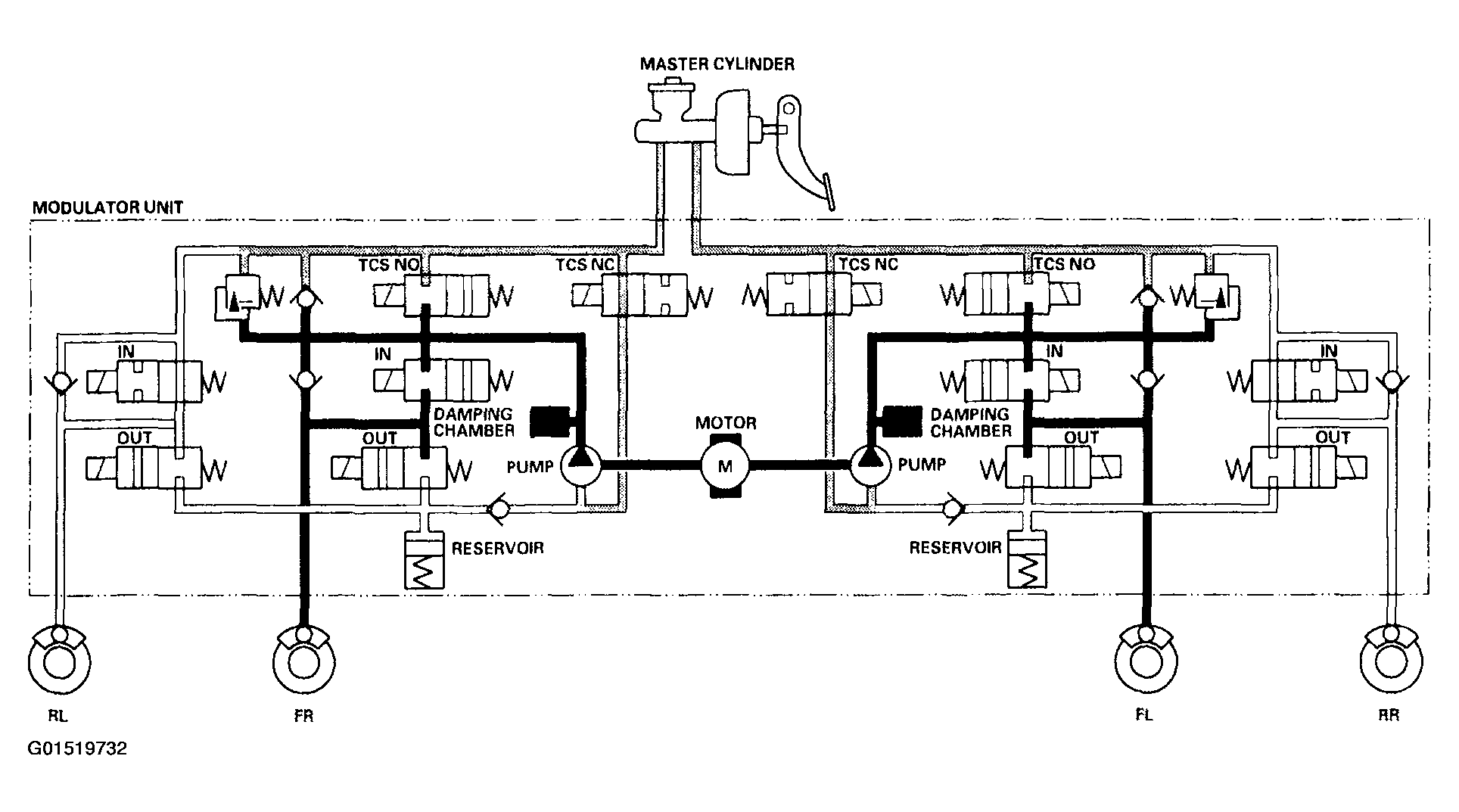

Fig 1: Pressure Retaining Mode Fluid Schematic

Courtesy of AMERICAN HONDA MOTOR CO., INC.
