Climate Control Panel (EX, EX-L Navigation) Connector End View

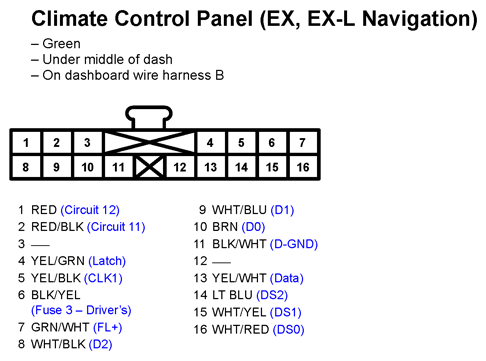

Fig 1: Climate Control Panel (EX, EX-L Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
