Bench Testing: Brushes

Measure the length of both brushes with vernier calipers. See Fig 1. If either is shorter than the service limit, replace the brush holder assembly. If the brush length is OK, go to ROTOR SLIP RING .

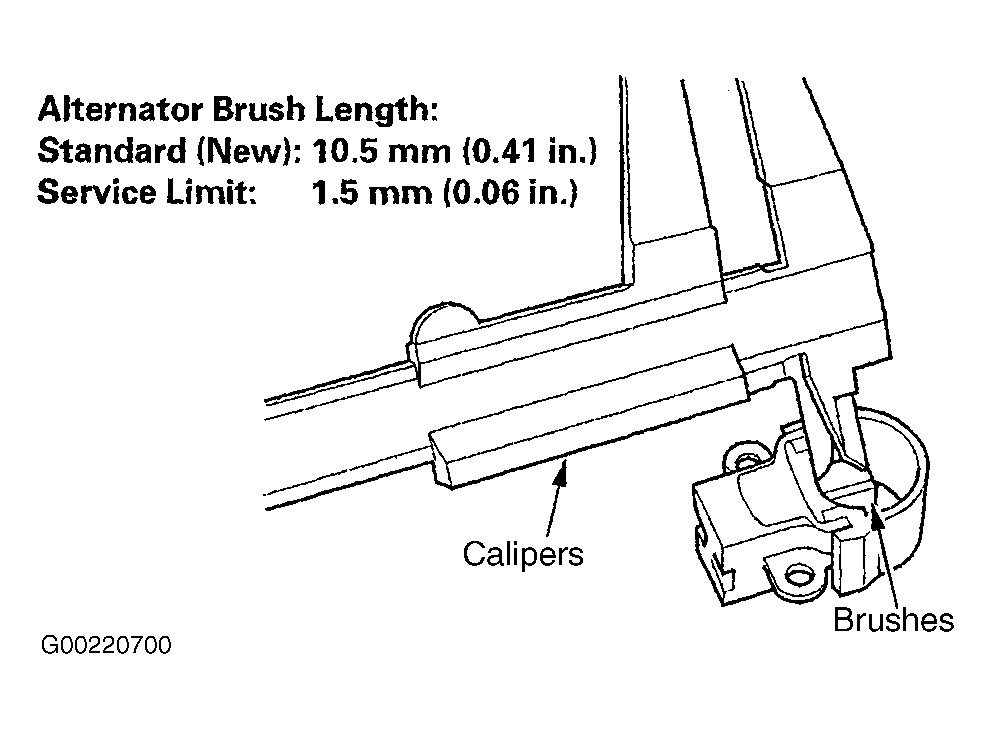

Fig 1: Measuring Alternator Brush Length

Courtesy of AMERICAN HONDA MOTOR CO., INC.
