PCM Data

You can retrieve data from the PCM by connecting the OBD II scan tool or HDS to the data link connector (DLC). The items listed in the table below conform to SAE recommended practice. The HDS also reads data beyond that recommended by SAE to this data may help you find the causes of intermittent problems.

NOTE:

The "operating values" listed are approximate and may vary depending on the environment and the individual vehicle.
Unless noted otherwise, "at idle speed" means idling with the engine completely warmed up, the transmission in park or neutral, and the A/C and all accessories turned off.

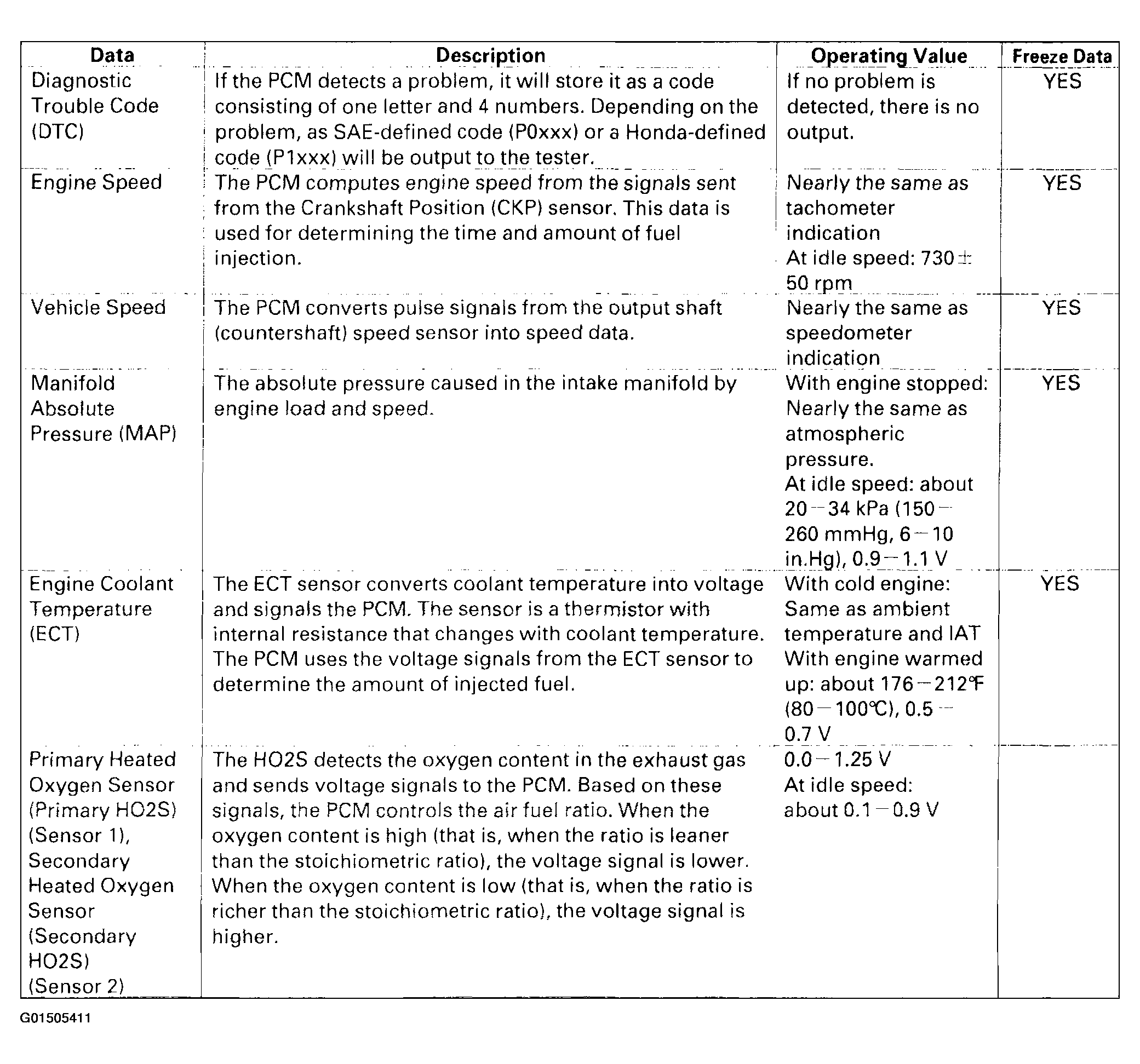

Fig 1: PCM Data Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

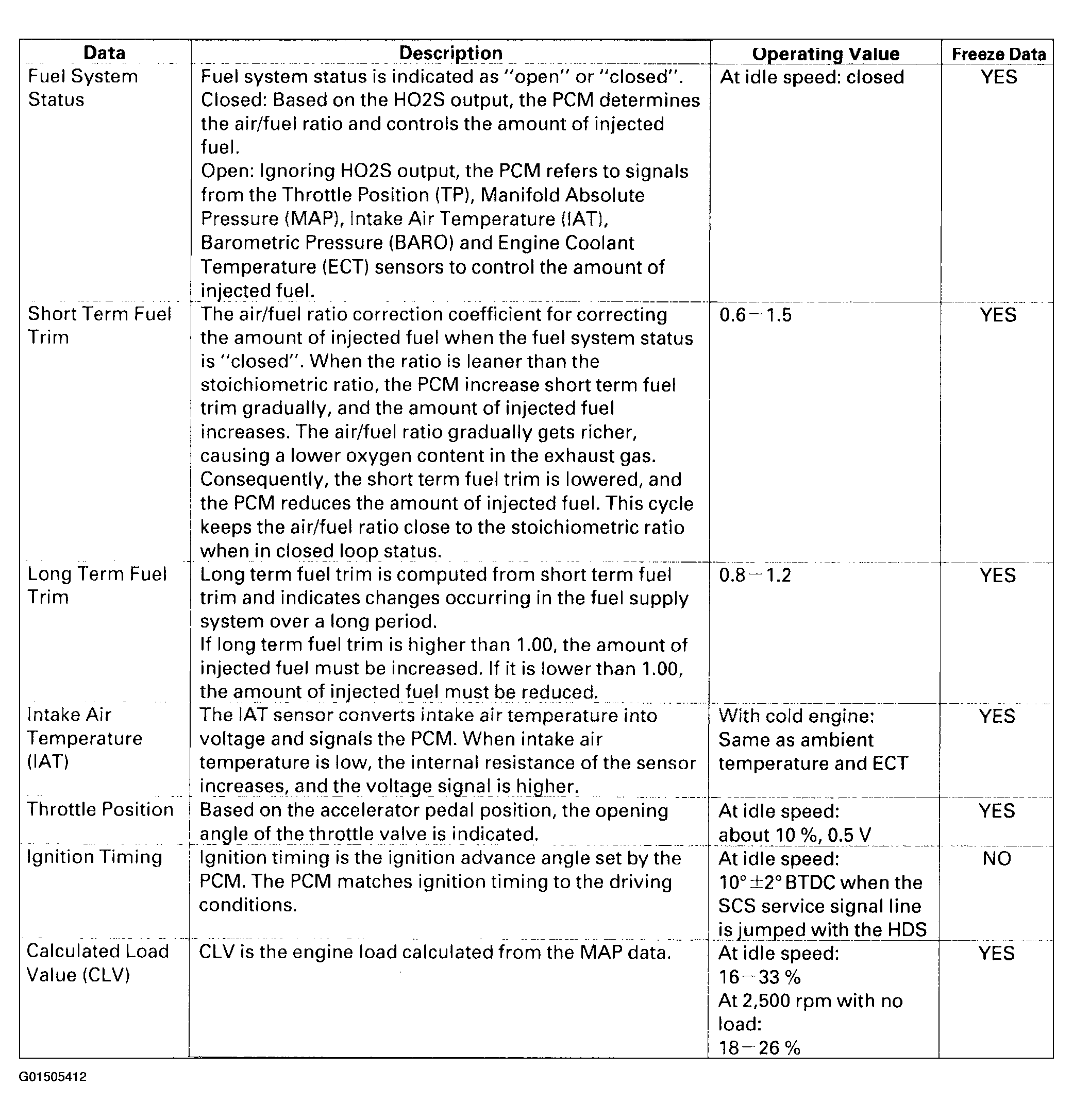

Fig 2: PCM Data Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
