Throttle Position (TP) Sensor

The TP sensor is a potentiometer connected to the throttle valve shaft. As the throttle position changes, the sensor varies the signal voltage to the PCM. The TP sensor is not available separately from the throttle body.

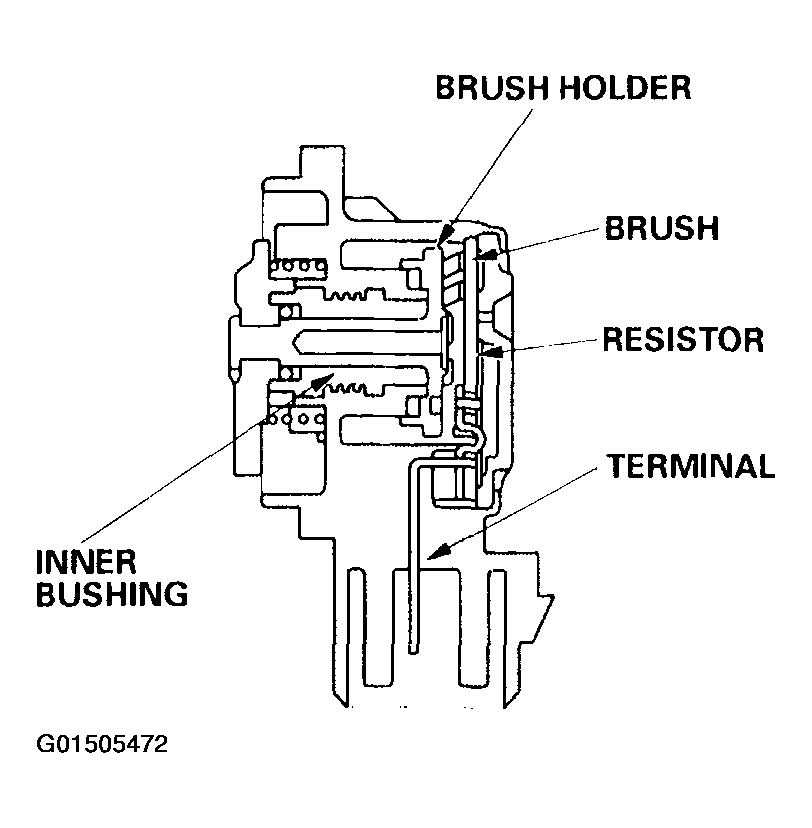

Fig 1: Identifying Throttle Position Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
