ABS Control Unit ('99-'00 LX) Connector End View

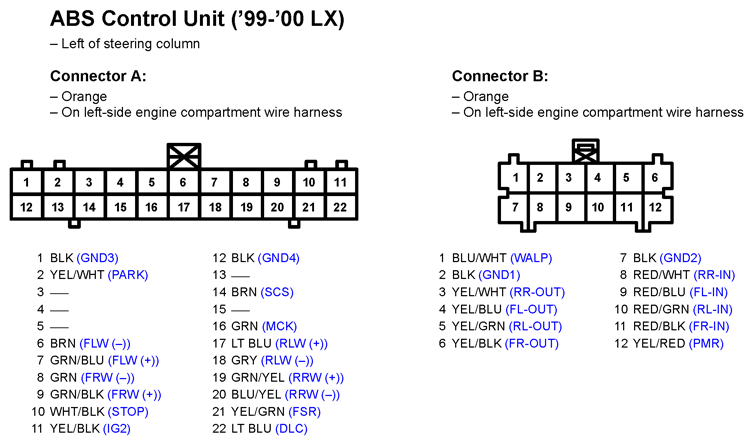

Fig 1: ABS Control Unit ('99-'00 LX) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
