Connector End Views
>>
Monitor Console (Honda Accessory) Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Monitor Console (Honda Accessory) Connector End View

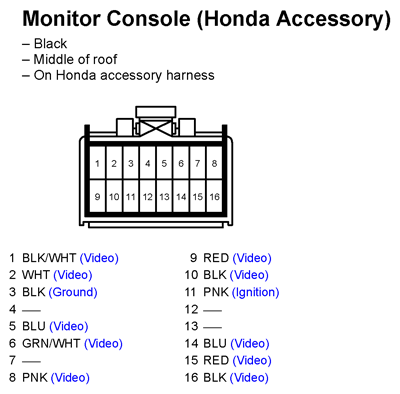

Fig 1: Monitor Console (Honda Accessory) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
