Intermittent Wiper Control Circuit Input Test

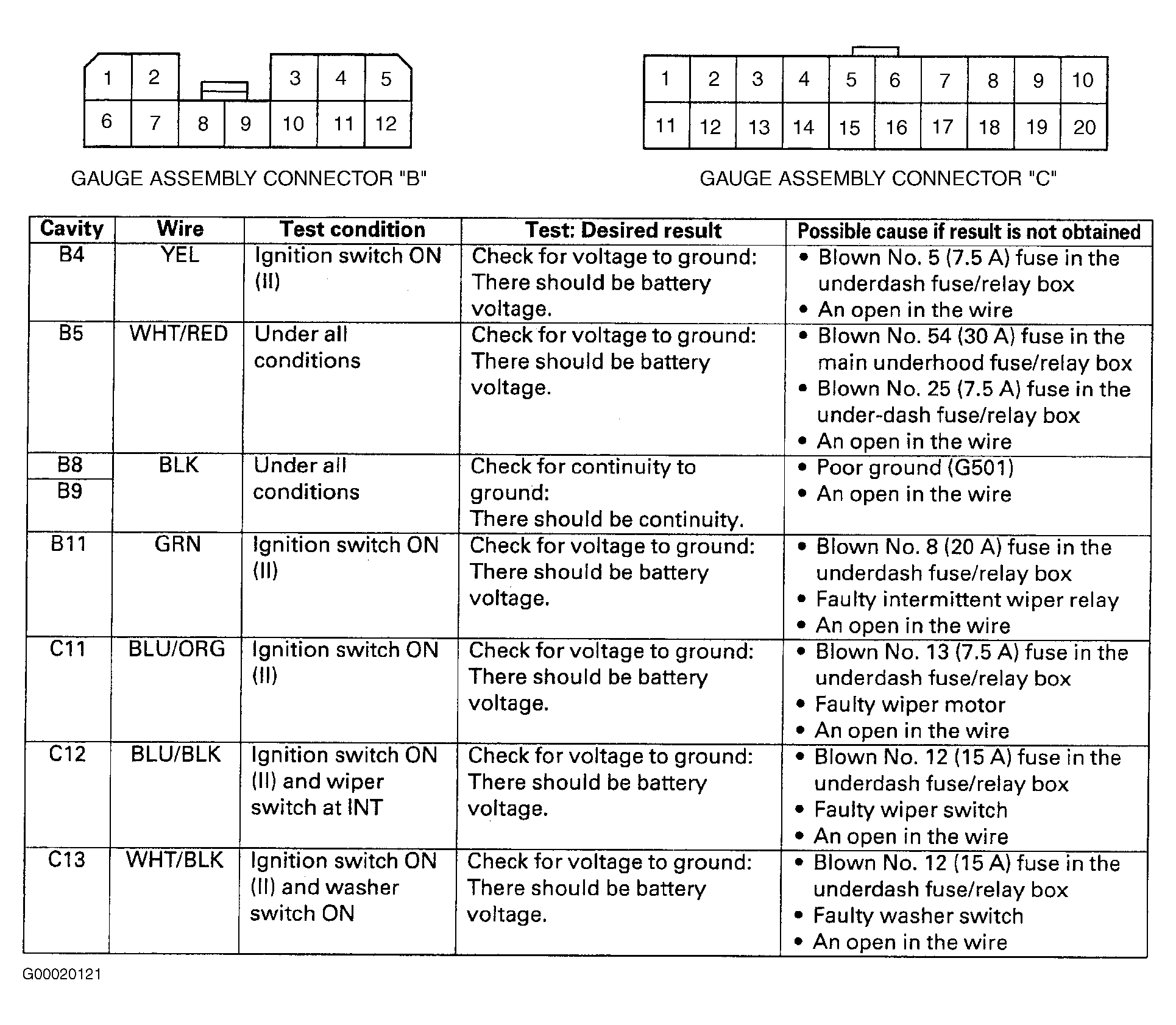

Fig 1: Intermittent Wiper Control Input Test (S2000)
G00020121Courtesy of AMERICAN HONDA MOTOR CO., INC.
