CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| A/C Diode | Above left side of front passenger's footrest, taped to harness. |
| ATTS In-Line Fuse (Type SH) | On underdash fuse/relay box. |
| Auxiliary Fuse Holder | Attached to underdash fuse/relay box. |
| Diode No. 1 (Foglights) | Behind dash, above left kick panel, taped to harness. |
| Diode No. 2 (Foglights) | Behind dash, above left kick panel, taped to harness. |
| Diode No. 3 (Foglights) | Behind dash, above left kick panel, taped to harness. |
| Foglight In-Line Fuse | Above underdash fuse/relay box, taped to harness. |
| Security Diode (2) | Behind driver's left air vent. |
| Security In-Line Fuse Holder No. 1 | Behind dash, above left kick panel. |
| Security In-Line Fuse Holder No. 2 | Behind lower dash panel, left of steering column, taped to harness. |
| Security In-Line Fuse Holder No. 3 | Behind lower dash panel, left of steering column, taped to harness. |
| Shift Lock Diode | Under front passenger's footrest, taped to ECM breakout. |
| SRS Fuse Block | On front of underdash fuse/relay box. See Figure . |
| Turn Signal Light Diode | Above underdash fuse/relay box, taped to harness. |

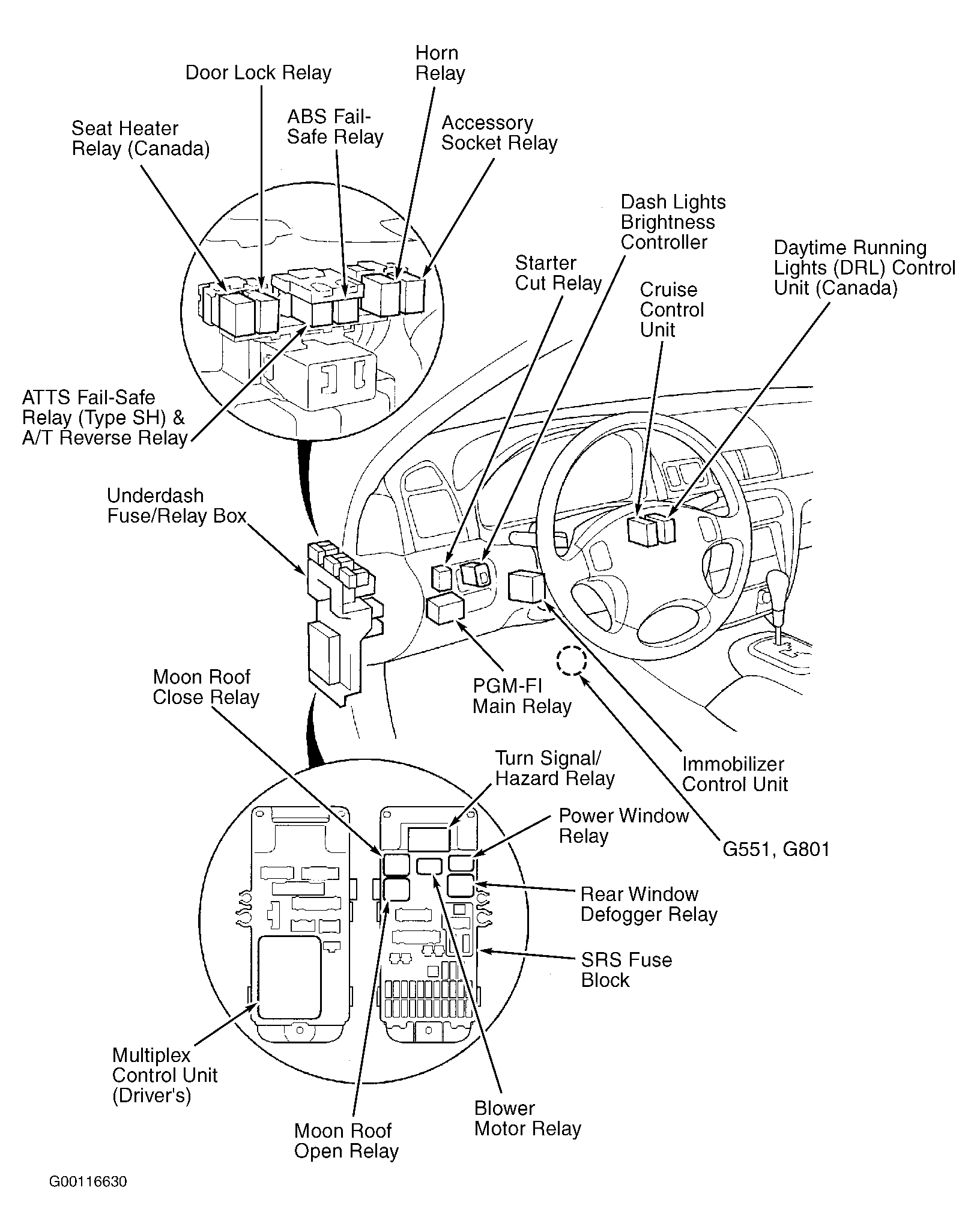

| Underdash Fuse/Relay Box | Behind left kick panel. See Figure . |

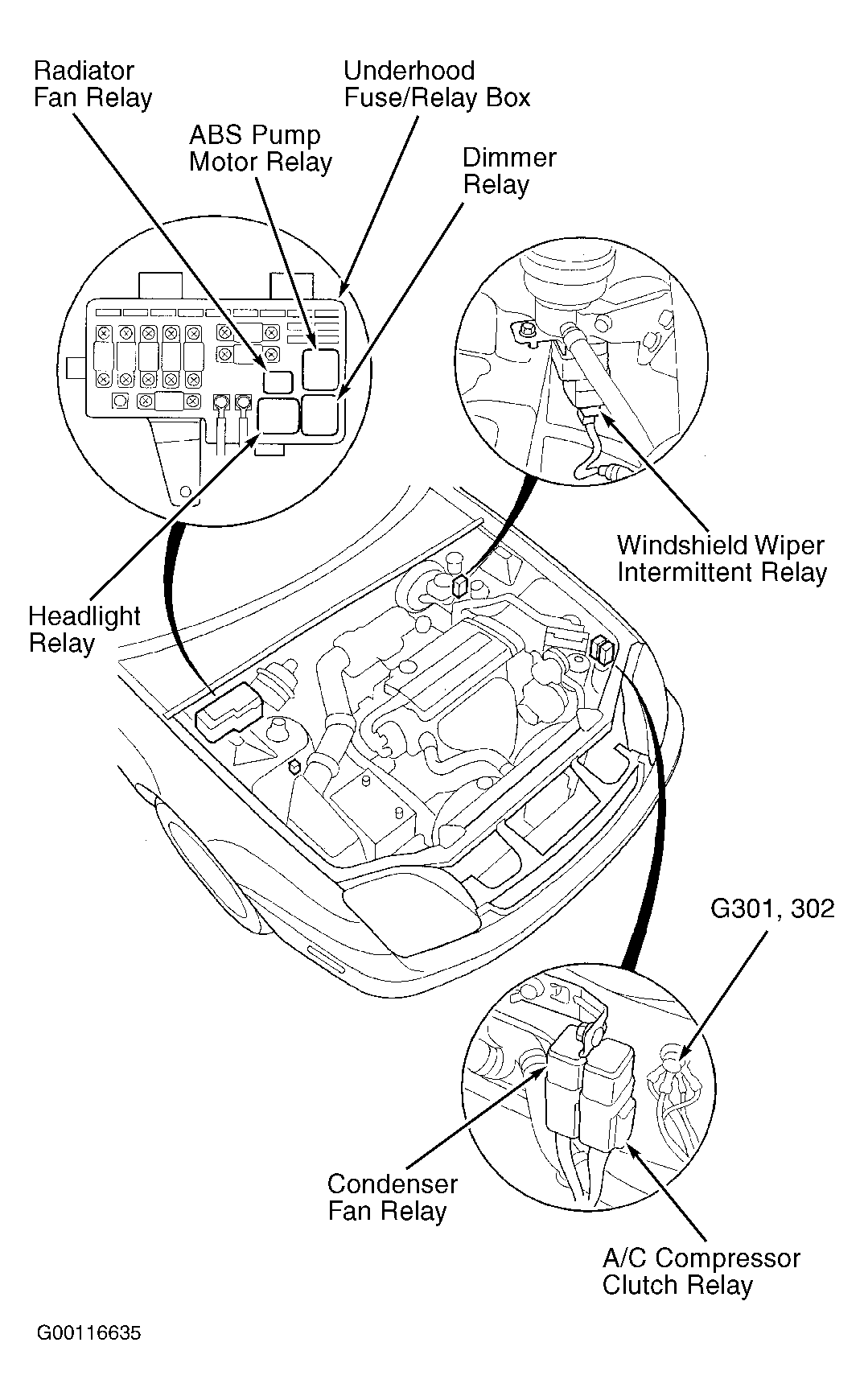

| Underhood Fuse/Relay Box | On right rear corner of engine compartment. See Figure . |
