Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Behind right kick panel. See Figure . |
| ABS Modulator Unit | In left front of engine compartment. |
| ATTS Control Unit (Type SH) | On underside of front passenger's footrest. See Figure . |
| ATTS Unit (Type SH) | Between left drive shaft and transaxle. |
| Cruise Control Unit | Behind dash, above accelerator pedal. See Figure . |
| Daytime Running Lights (DRL) Control Unit (Canada) | Behind dash, above accelerator pedal. See Figure . |

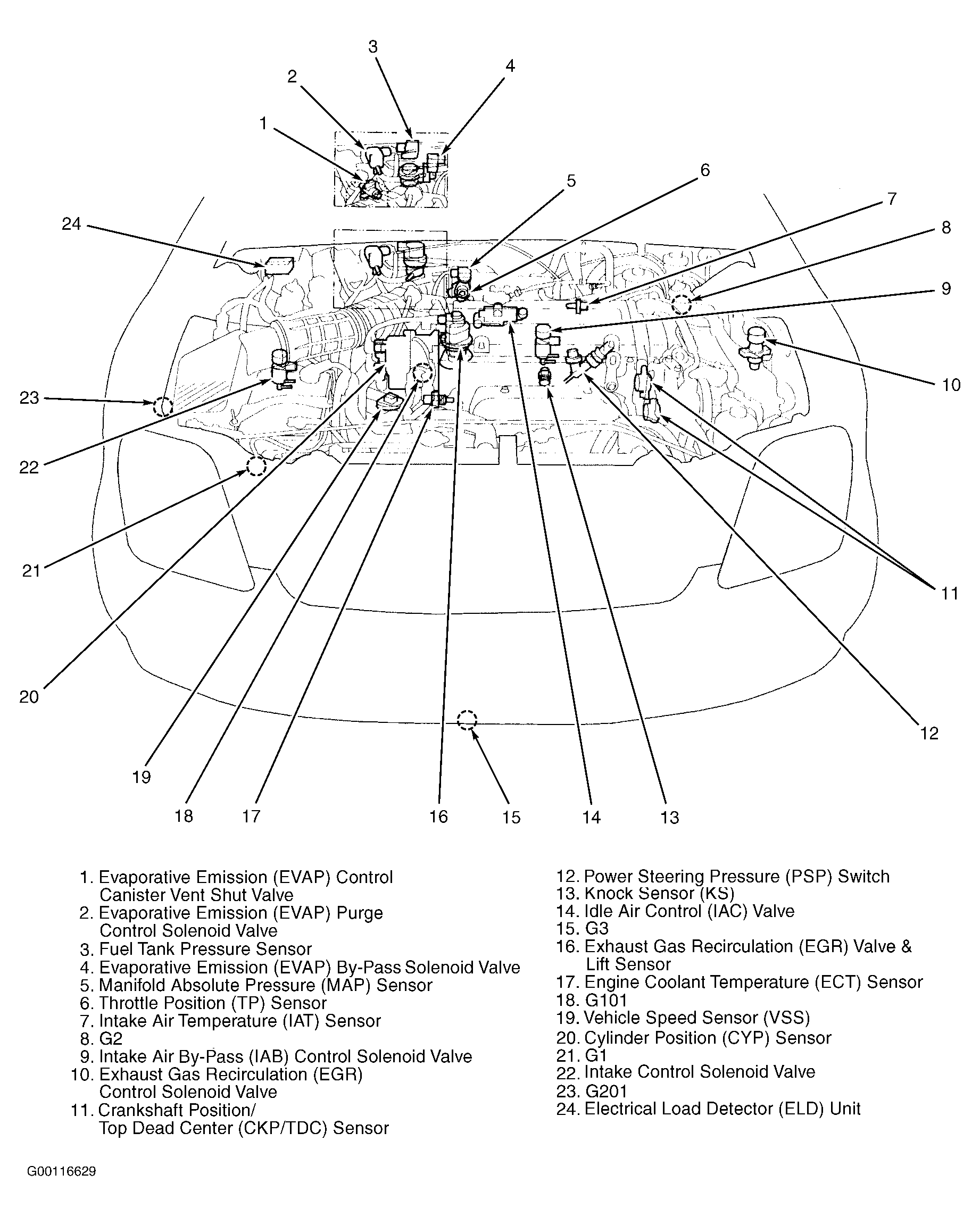

| Electrical Load Detector (ELD) Unit | In underhood fuse/relay box. See Figure . |
| Engine Control Module (ECM) | On underside of front passenger's footrest. See Figure . |
| Immobilizer Control Unit | Behind dash, on left side of steering column. See Figure . |

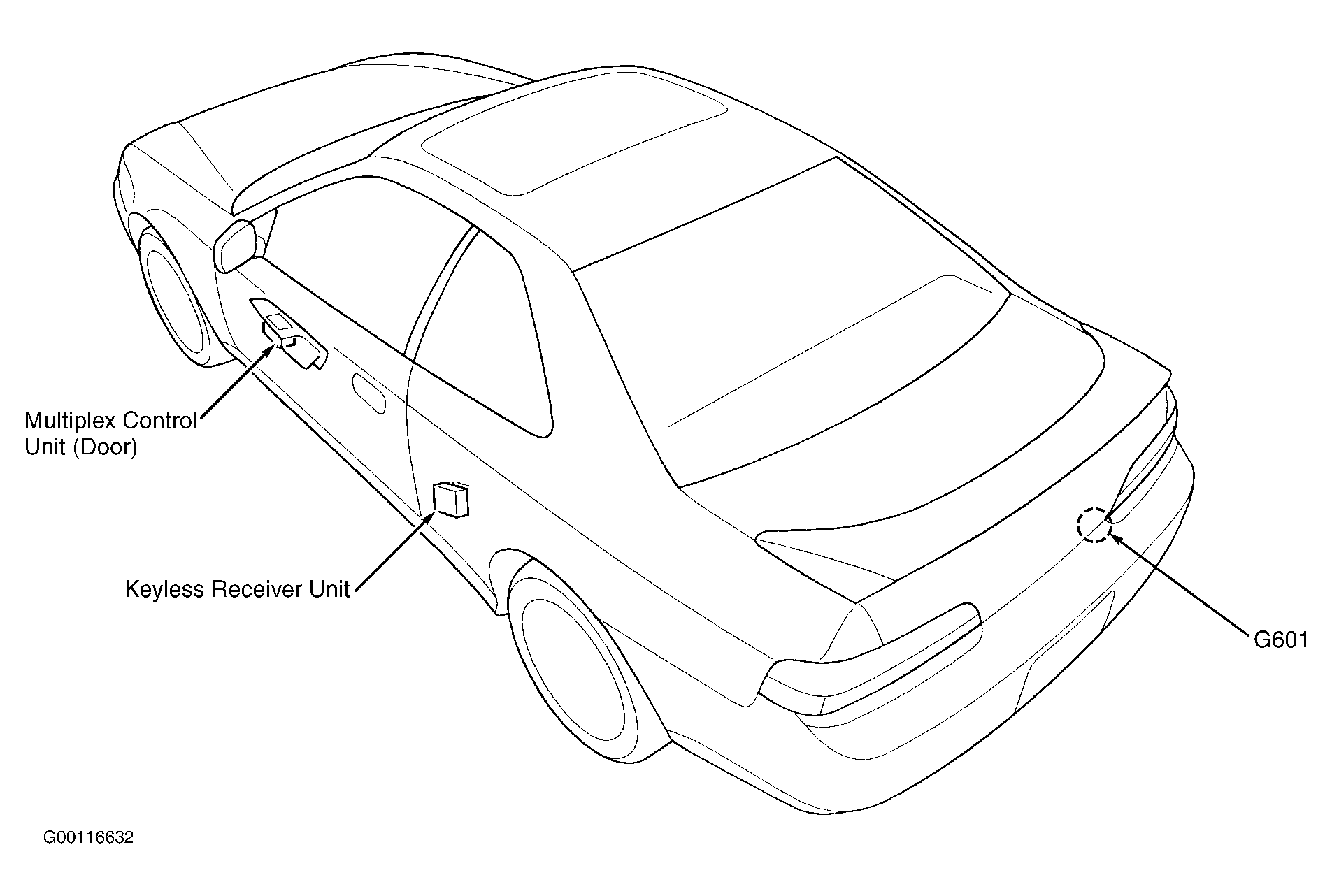

| Multiplex Control Unit (Door) | In driver's door. See Figure . |
| Multiplex Control Unit (Driver's) | On rear of underdash fuse/relay box. See Figure . |
| Multiplex Control Unit (Passenger's) | Behind right kick panel. See Figure . |
| Security Control Unit | Behind dash, above accelerator pedal. |

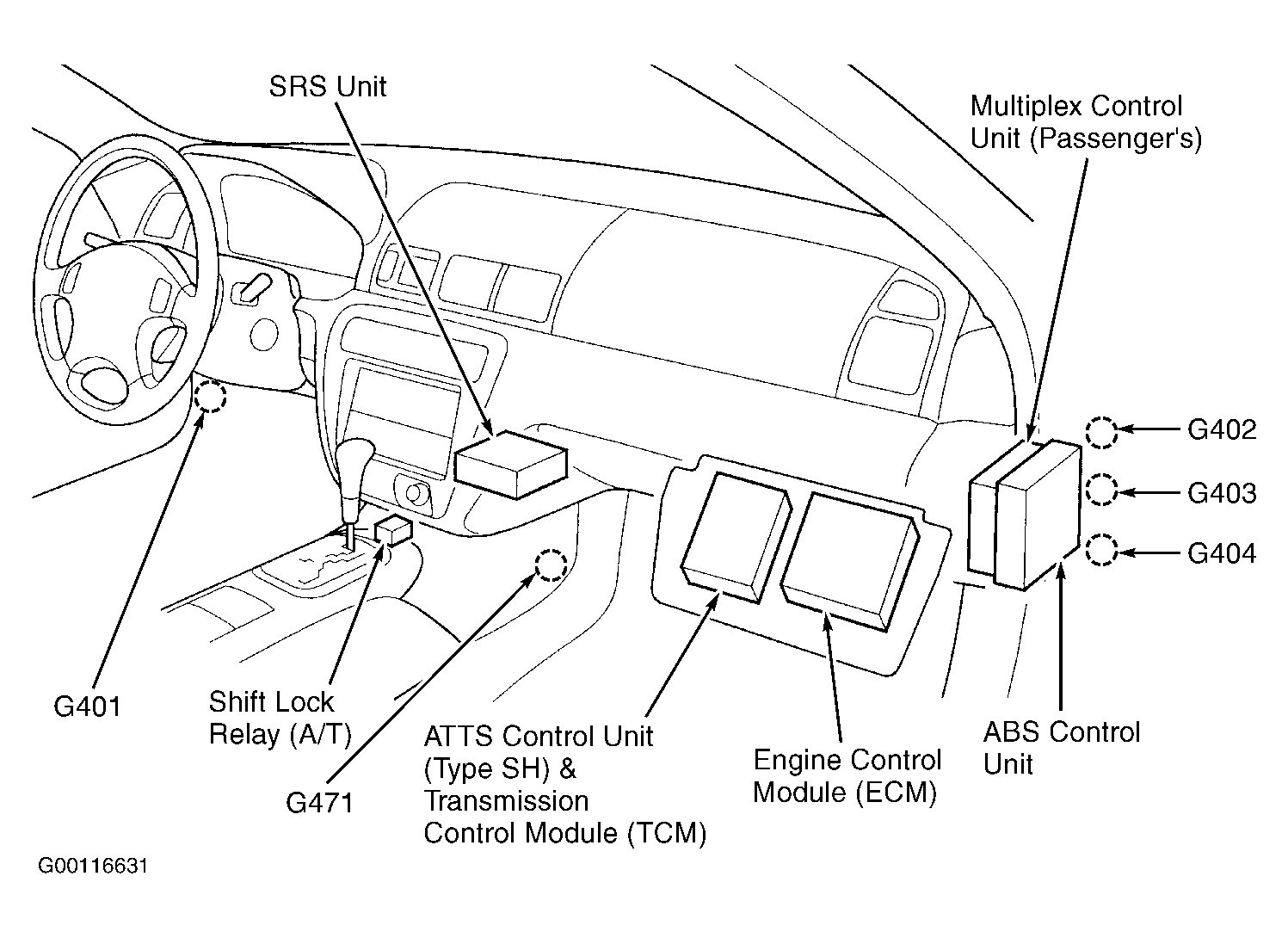

| SRS Unit | Below center of dash. See Figure . |
| Transmission Control Module (TCM) | On underside of front passenger's footrest. See Figure . |
