Seat-Back Cover '00-05 Models

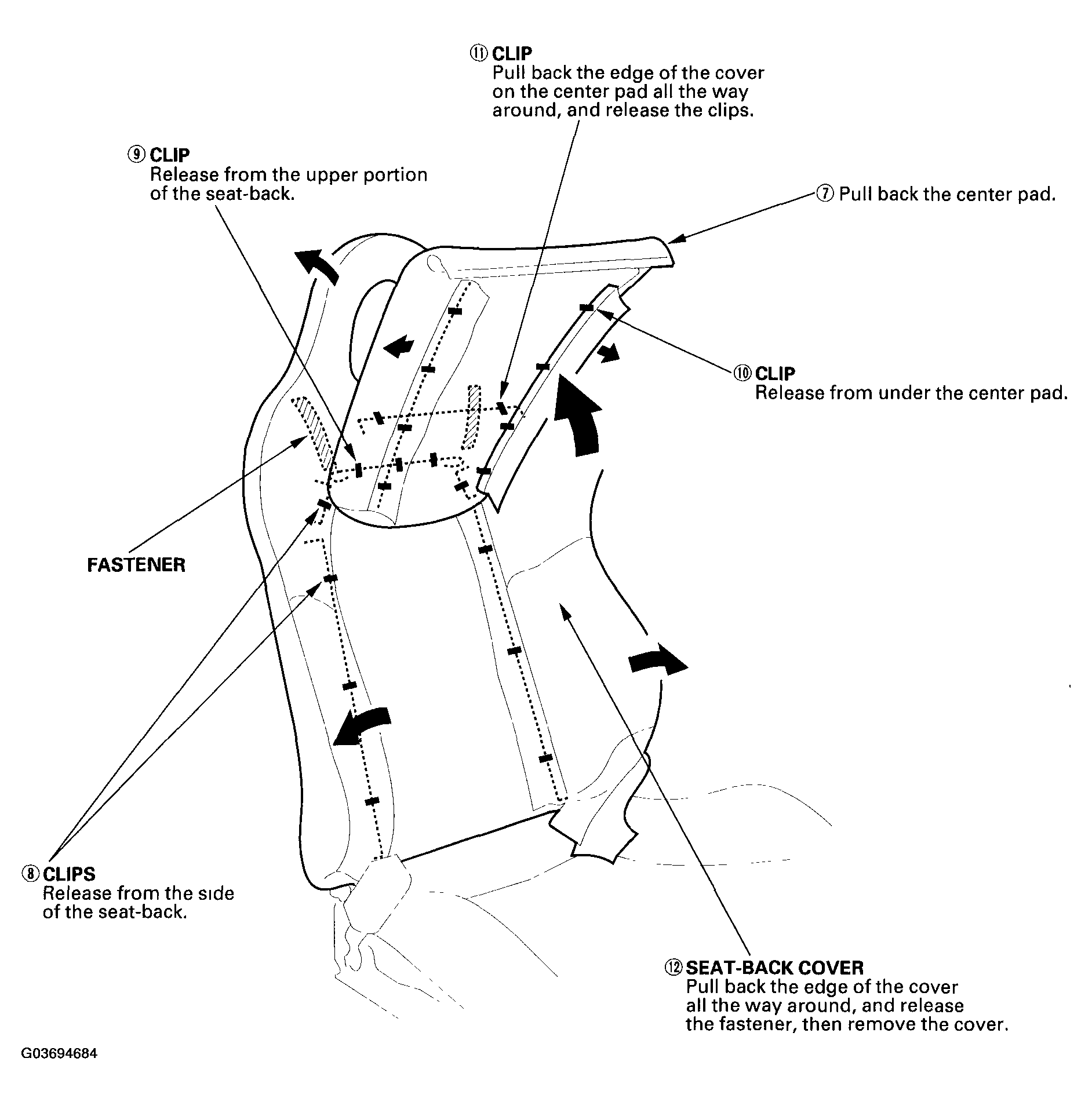

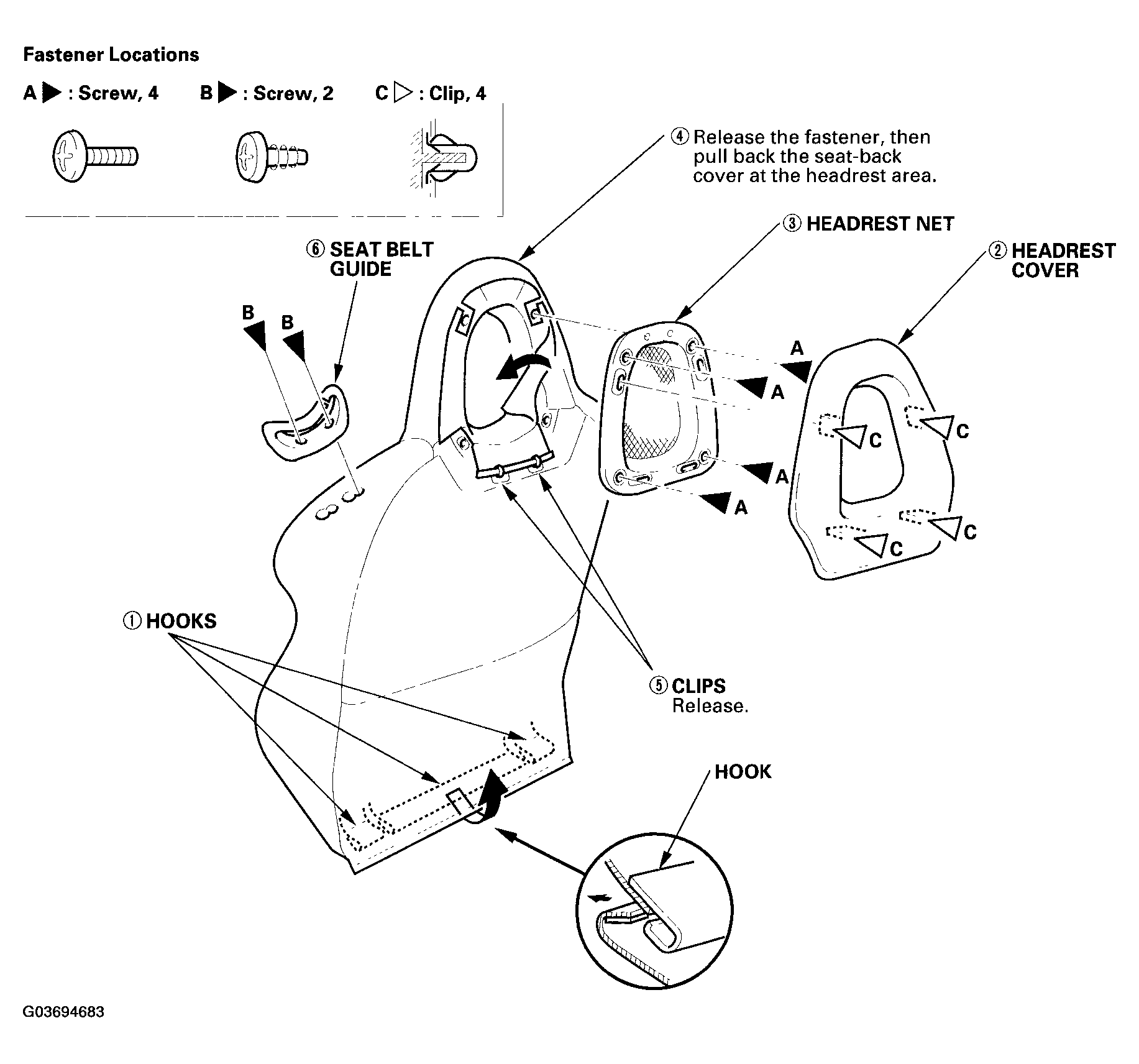

- Remove the seat-back cover in numbered sequence.
- Install the cover in the reverse order of removal, and note these items:
- To prevent wrinkles when installing a seat-back cover, make sure the material is stretched evenly over the pad before securing the clips, fasteners and hooks.
- Replace the released clips with new ones using commercially available upholstery pliers.
- Replace any damaged headrest cover clips.
