Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2009 Honda S2000 and 2008 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's dashboard lower cover and the right kick panel (see PASSENGER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Disconnect the dashboard wire harness connector from the passenger's door wire harness connector, then remove it. Remove the wire harness connectors and the convertible top control unit from the steering hanger beam.
  3. Disconnect the connectors (A) from the blower motor, the power transistor and the recirculation control motor, then remove the wire harness clips (B). Remove the self-tapping screw, the mounting bolts, the mounting nuts and the blower unit (C).

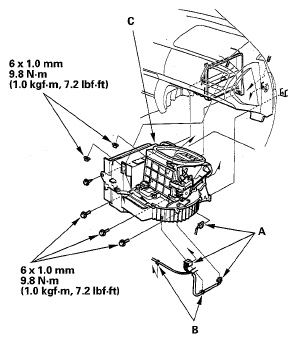

    Fig 1: Identifying Blower Unit Remove/Install Components
    G05115927Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install in the reverse order of removal. Make sure that there is no air leakage.
