How to Retrieve a DTC: Notes

WARNING: This page is about a different car, the 2009 Honda S2000 and 2008 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.

The heater control panel has a self-diagnostic function. To run the self-diagnostic function, do the following:

Set the mode control dial on the Vent position.
Turn the ignition switch to ON (II).
Within 5 seconds after turning the ignition switch on, press the recirculation control switch the required number of times depending on the recirculation indicator status:
- If the indicator is ON, press the recirculation control switch 5 times.
- If the indicator is OFF, press the recirculation control switch 6 times.
The recirculation indicator will come on for 2 seconds, then blink the Diagnostic Trouble Code (DTC) to indicate a faulty component. If no DTCs are found, the indicator will not blink after the initial 2 seconds light.

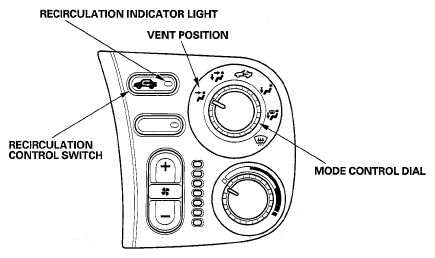

Fig 1: Identifying Heater Control Panel Parts Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.

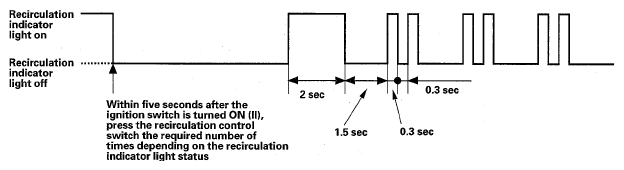

Fig 2: Identifying DTC Indication Pattern (DTC 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
