Mode Control Motor Replacement: Notes

WARNING: This page is about a different car, the 2009 Honda S2000 and 2008 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the mode control dial on DEF with the ignition switch to ON (II).
  2. Remove the driver's heater outlet.
  3. Disconnect the 7P connector (A) from the mode control motor (B). Remove the rods (C) from the mode control linkage (D). Remove the self-tapping screws and the mode control motor from the heater unit.

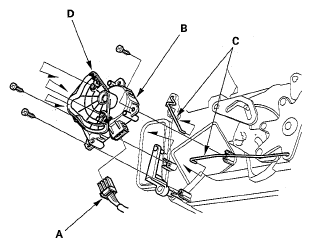

    Fig 1: Identifying Connector, Mode Control Motor And Rods
    G05115923Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the linkage is properly engaged with the motor. After installation, make sure the motor runs smoothly.
