Engine Performance: Application: Introduction: Introduction: Notes

2001 MODEL COVERAGE

MODEL

ENGINE ⁽¹⁾

BODY/ENGINE CODE ⁽²⁾

FUEL SYSTEM

IGNITION SYSTEM ⁽³⁾

Accord

2.3L 4-Cyl. (F23A5)

CF8

SFI

Magnetic

2.3L 4-Cyl. (F23A1) ⁽⁴⁾ Or (F23A4) ⁽⁴⁾

CG3 ⁽⁵⁾

SFI

Magnetic

2.3L 4-Cyl. (F23A1) ⁽⁴⁾

CG5

SFI

Magnetic

2.3L 4-Cyl. (F23A4) ⁽⁴⁾

CG6 ⁽⁵⁾

SFI

Magnetic

3.0L V6 (J30A1) ⁽⁴⁾

CG1

SFI

DIS

3.0L V6 (J30A1) ⁽⁴⁾

CG2

SFI

DIS

Civic

1.7L 4-Cyl. (D17A1) ⁽⁵⁾

ES1

SFI

DIS

1.7L 4-Cyl. (D17A2) ⁽⁴⁾⁽⁵⁾

ES2

SFI

DIS

1.7L 4-Cyl. (D17A6) ⁽⁵⁾⁽⁶⁾

EM2

SFI

DIS

CR-V

2.0L 4-Cyl. (B20Z2) ⁽⁷⁾

RD1

SFI

Magnetic

2.0L 4-Cyl. (B20Z2) ⁽⁷⁾

RD2

SFI

Magnetic

Insight

1.0L 3-Cyl. (ECA1) ⁽⁵⁾⁽⁶⁾⁽⁸⁾

ZE1

SFI

DIS

Odyssey

3.5L V6 (J35A1) ⁽⁴⁾

RL1

SFI

DIS

Passport

3.2L V6 (6VD1) ⁽⁷⁾

K (2WD)/W

SFI

DIS

3.2L V6 (6VD1) ⁽⁷⁾

M (4WD)/W

SFI

DIS

Prelude

2.2L 4-Cyl. (H22A4) ⁽⁴⁾⁽⁷⁾

BB6

SFI

Magnetic

S2000

2.0L 4-Cyl. (F20C1) ⁽⁴⁾⁽⁷⁾

AP1

SFI

DIS

⁽¹⁾	Engine Code is the first 5 characters of the 12 characters stamped or tagged on engine block.

⁽²⁾	On all models except Passport, Body/Engine ID is the fourth, fifth and sixth digit of VIN. On Passport, Body/Engine ID is the fifth, sixth, seventh and eighth digit of VIN.

⁽³⁾	Ignition timing is controlled by Powertrain Control Module (PCM).

⁽⁴⁾	Variable Valve Timing with Electronic Control (VTEC) system.

⁽⁵⁾	Ultra Low Emission Vehicle (ULEV) Engine.

⁽⁶⁾	VTEC-E system.

⁽⁷⁾	Dual Overhead Camshafts (DOHC).

⁽⁸⁾	Hybrid vehicle is equipped with gasoline engine and an electric motor. Only service procedures for gasoline engine are covered. Use caution during service to prevent touching Orange-colored, high-voltage wiring.

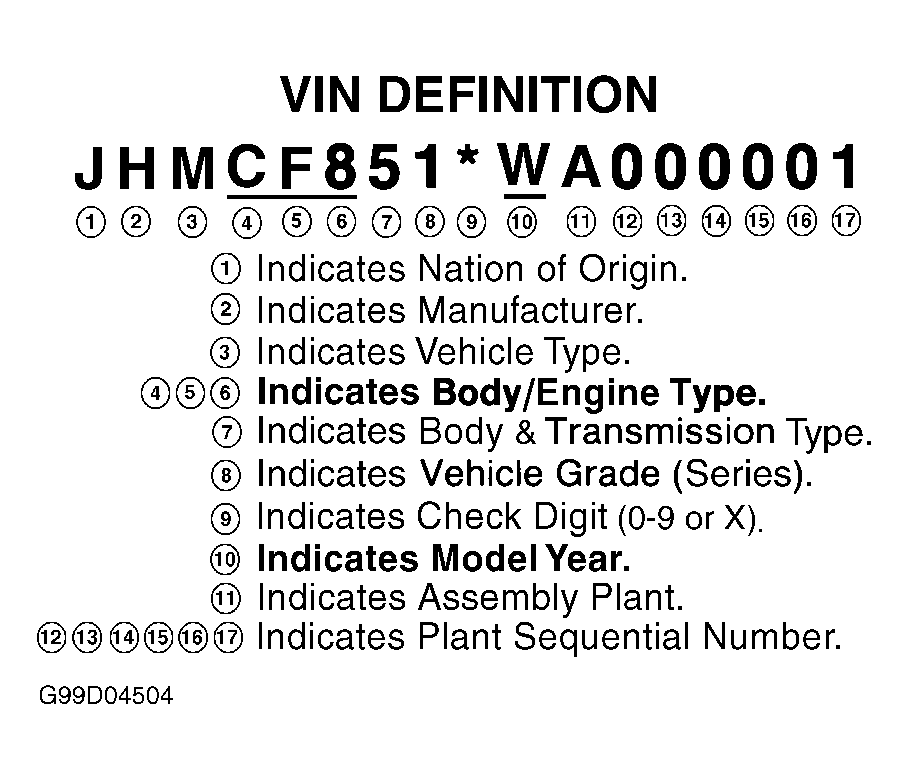

Fig 1: VIN Definition

G99D04504

Courtesy of AMERICAN HONDA MOTOR CO., INC.
