Spark Plugs

SPARK PLUG TYPE (4-CYLINDER)

Application

NGK

Denso

Accord

PZFR5F-11

PKJ16CR-11

Civic

PZFR6F-11

PKJ20CR-M11

CR-V

ZFR6F-11

KJ20CR-L11

Insight

ILZFR5A-11 ⁽¹⁾

.....

Prelude

PZFR6F-11

PKJ20CR-L11

S2000

PFR7G-11

PK22PR-L11

⁽¹⁾	Order spark plug according to mark stamped on cylinder head. See Fig 1.

SPARK PLUG TYPE (V6)

Application	NGK	Denso
Accord	PZFR5F-11	PKJ16CR-L11
Odyssey	PZFR5F-11	PKJ16CR-L11

SPARK PLUG SPECIFICATIONS

Application

Gap In. (mm)

Service Limit In. (mm)

Torque Ft. Lbs. (N.m)

All Except CR-V ⁽¹⁾

.039-.043 (1.0-1.1)

.051 (1.3)

13 (18)

CR-V

.039-.043 (1.0-1.1)

.....

13 (18)

⁽¹⁾	Platinum tip spark plugs. Replace plug if gap has exceeded service limit or center electrode is rounded.

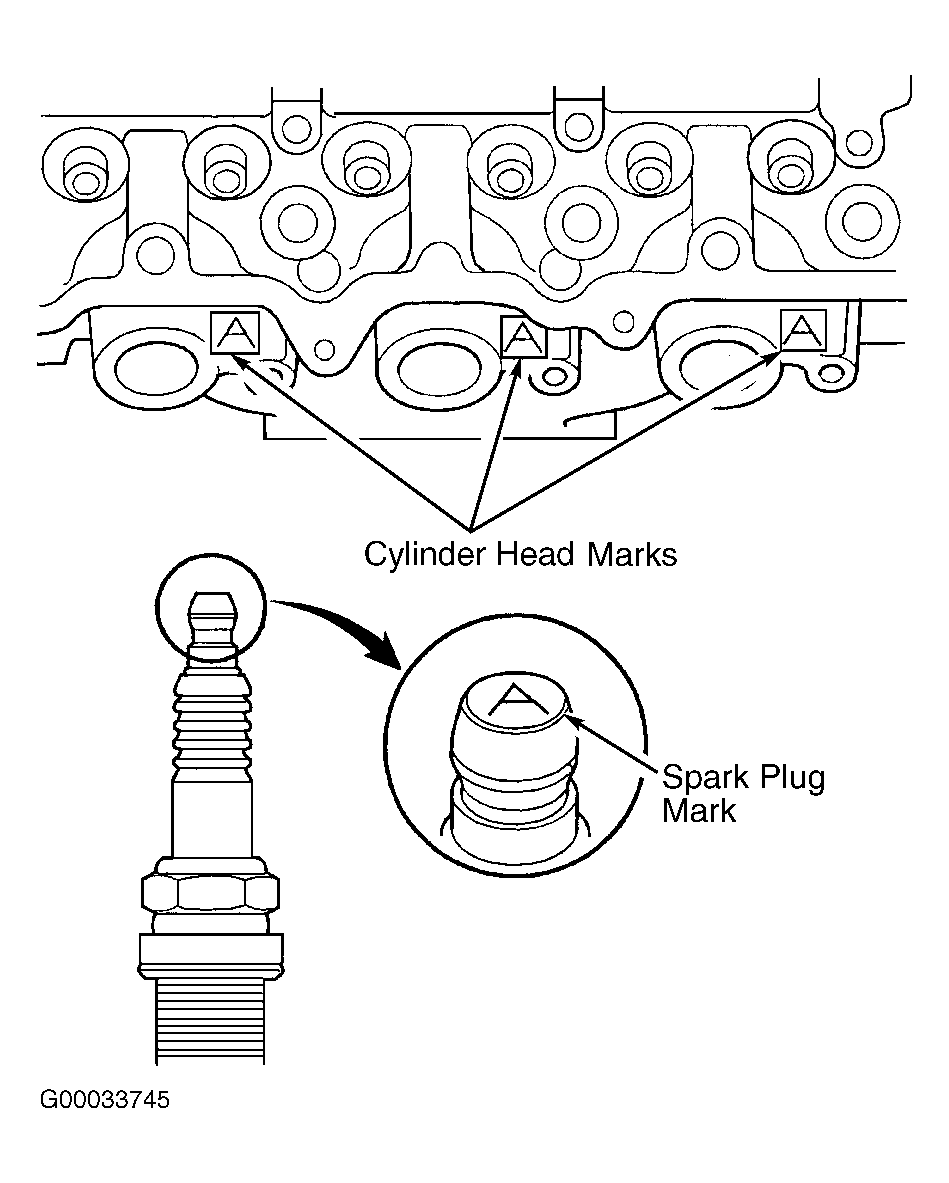

Fig 1: Locating Spark Plug Marks (Insight)

G00033745

Courtesy of AMERICAN HONDA MOTOR CO., INC.
