Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ECT Sensor Replacement

1. Remove the air cleaner.
2. Disconnect the ECT sensor 2P connector.

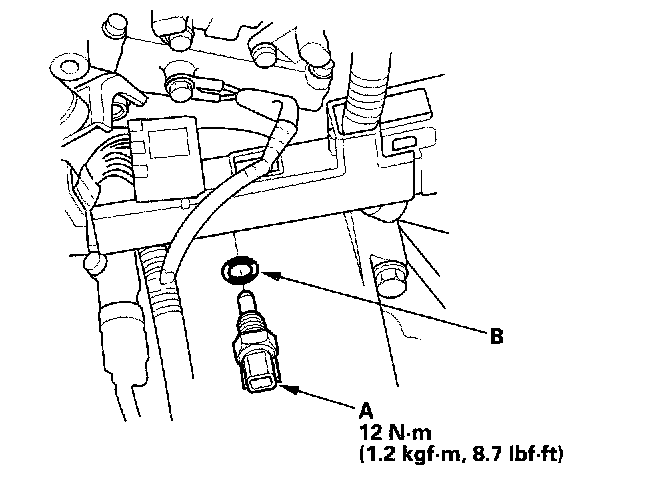

ECT Sensor Replacement:

3. Remove the ECT sensor (A)
4. Install the sensor in the reverse order of removal with a new O-ring (B).
