Symptom Troubleshooting Index

When the vehicle has one of these symptoms, check for a diagnostic trouble code (DTC) with the scan tool. If there is no DTC, do the diagnostic procedure for the symptom, in the sequence listed, until you find the cause.

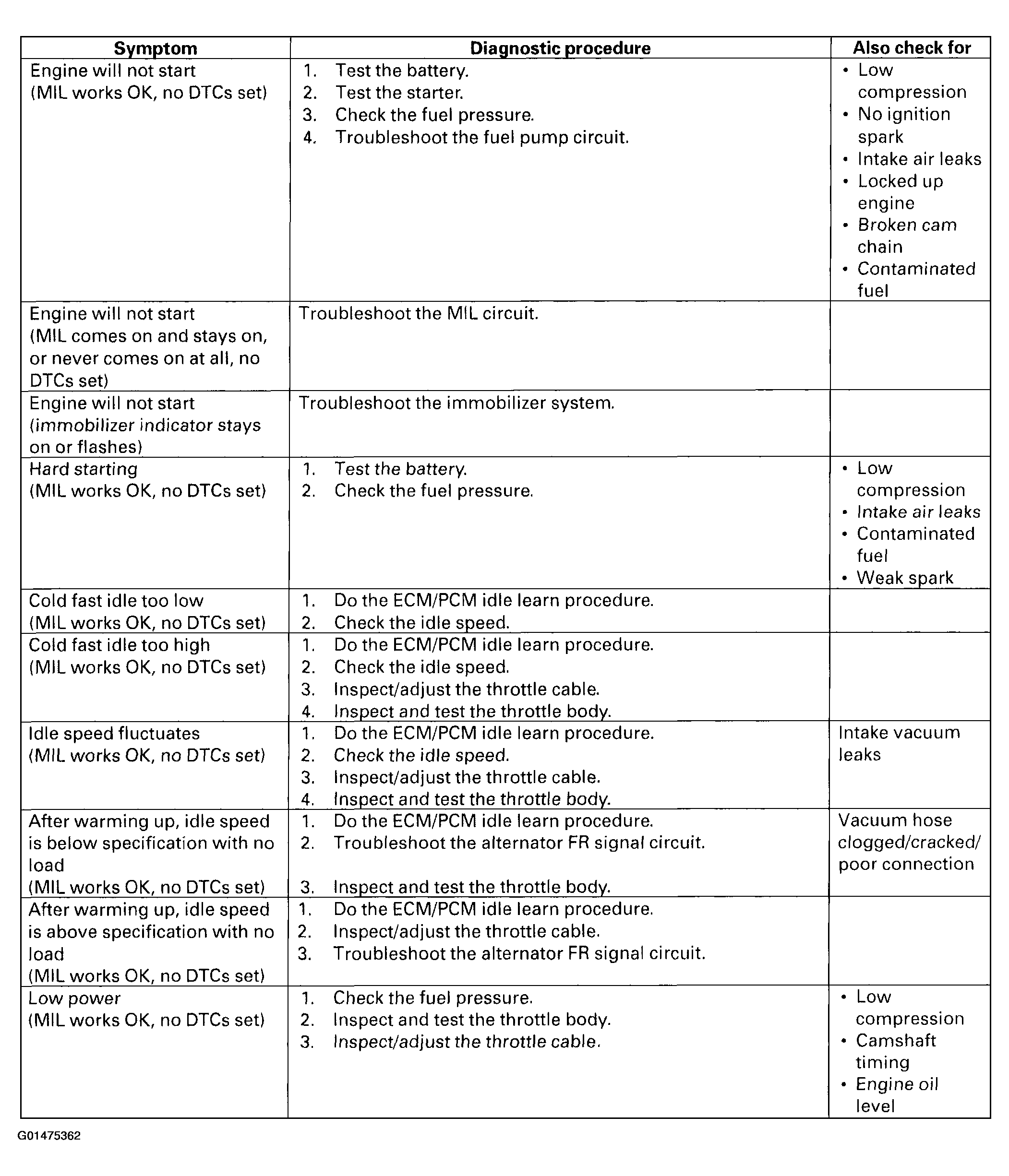

Fig 1: Symptom Troubleshooting Chart (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

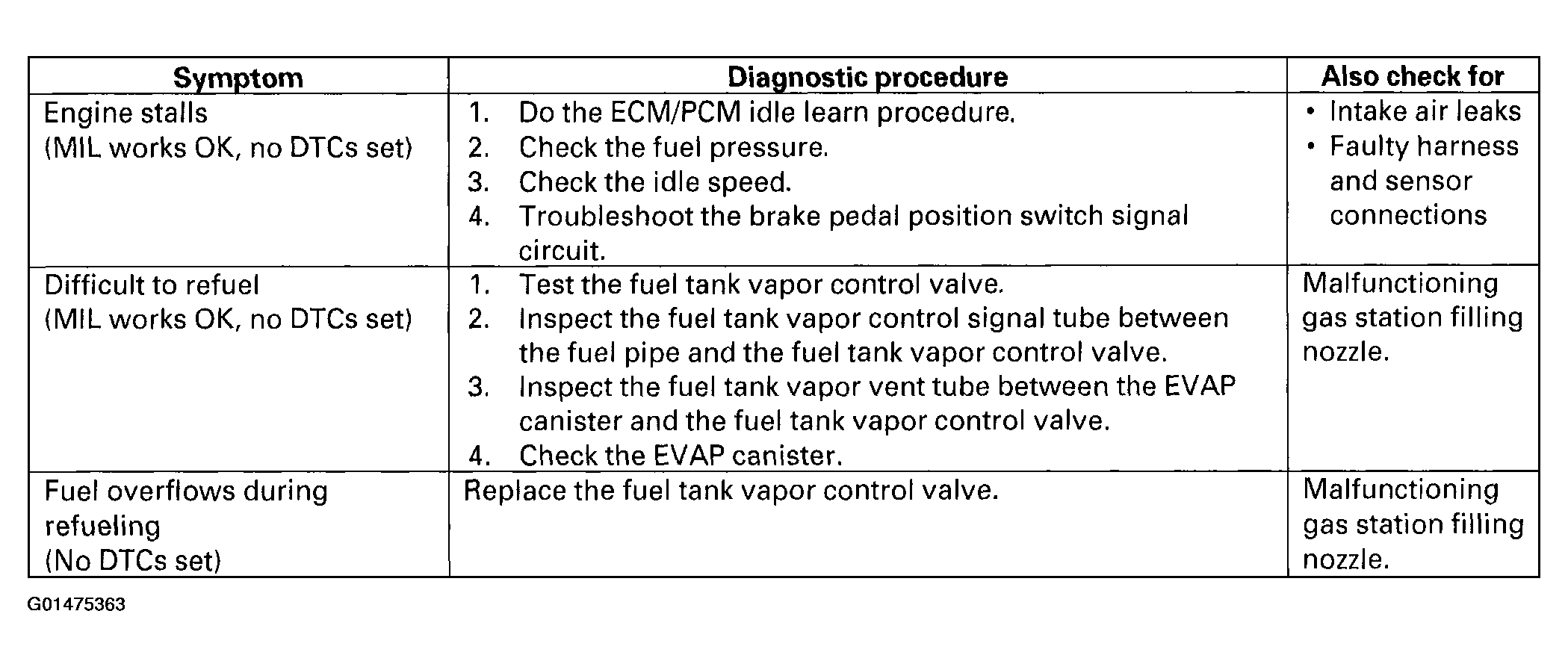

Fig 2: Symptom Troubleshooting Chart (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
