Self-diagnostic Function Mode Display

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

CONNECT
The screen will display connection check status for each device while in this self-diagnostic mode.
- "RR DISPLAY" (rear controller and screen) will always indicate OK (green color).
- The screen indicates connecting device codes.
- If the connection for the "H/U" (audio unit) is "DVD" (DVD player unit), or "JACK" (auxiliary jack assembly) is faulty, the screen will display NG (red color).

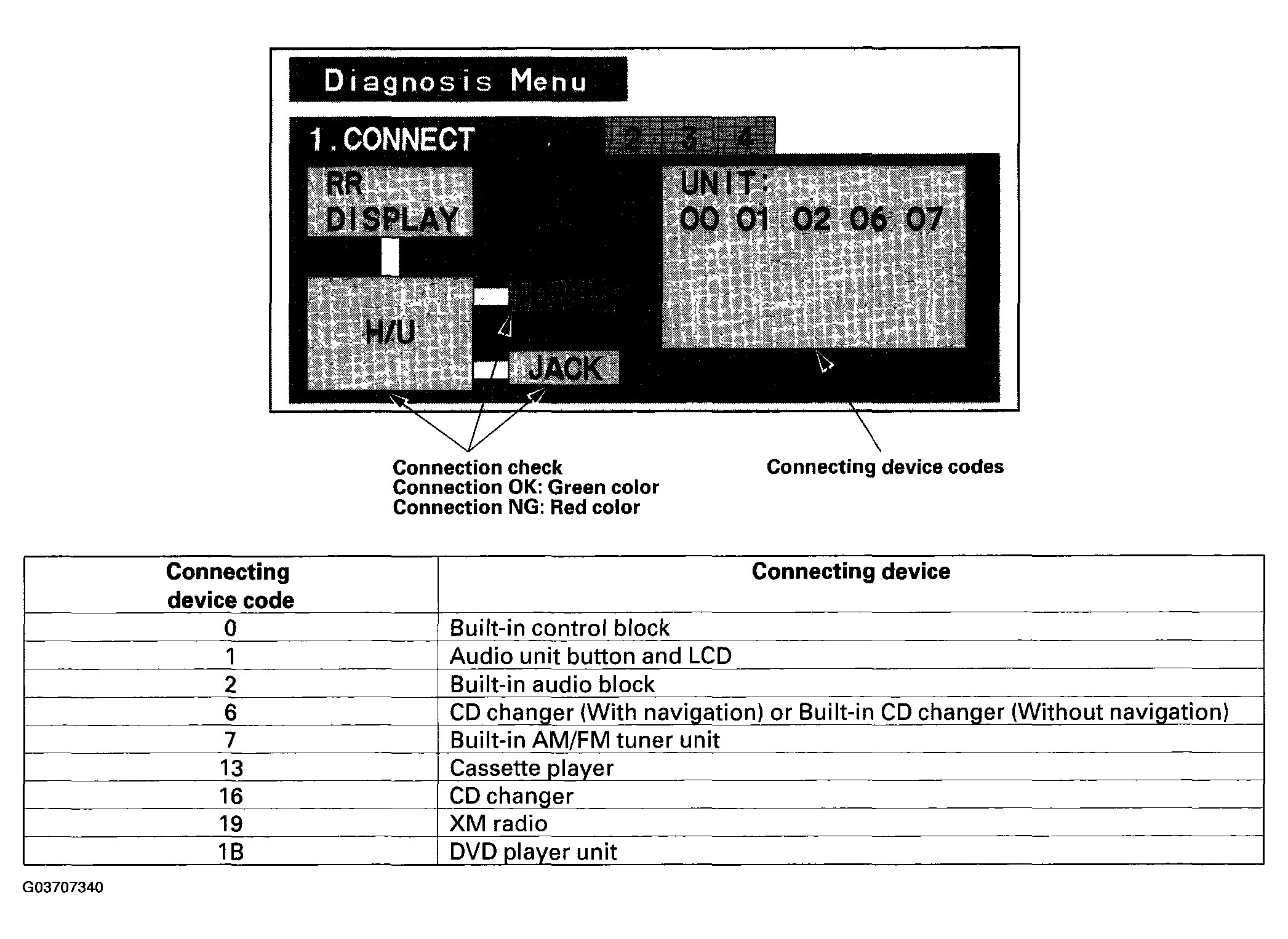

Fig 1: Identifying Self-Diagnostic Function Mode Display - Connect
Courtesy of AMERICAN HONDA MOTOR CO., INC.
STATUS
The screen will display screen status while in this self-diagnostic mode.
- If there is a change (analog to digital) of signal error for the categories "+B VOLT" or "TEMP", the screen will display "Err".
- The screen indicates open or closed condition of the screen.

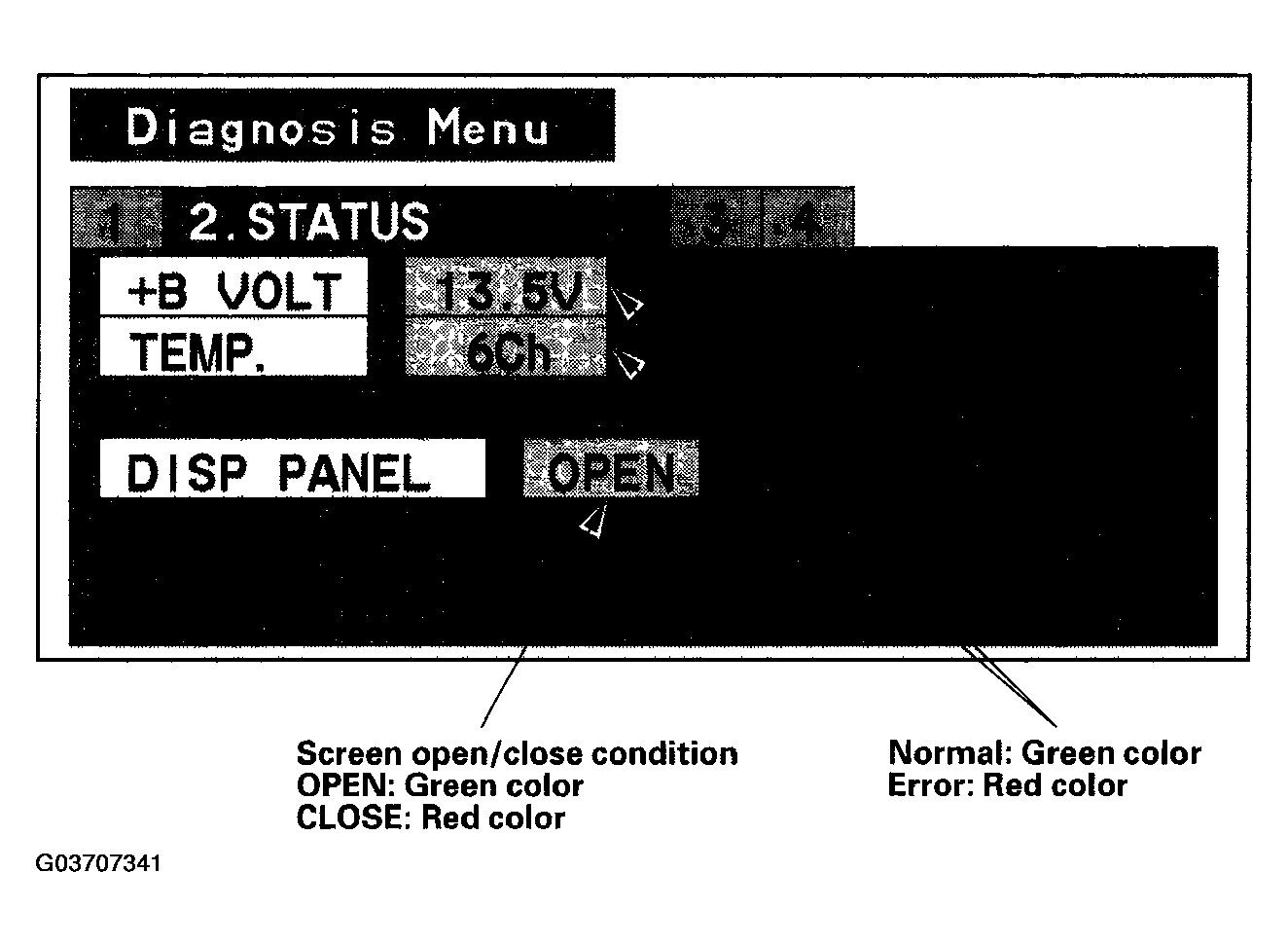

Fig 2: Identifying Self-Diagnostic Function Mode Display - Status
Courtesy of AMERICAN HONDA MOTOR CO., INC.
UNIT CHECK
The screen will display self-diagnostic status while in this self-diagnostic mode.

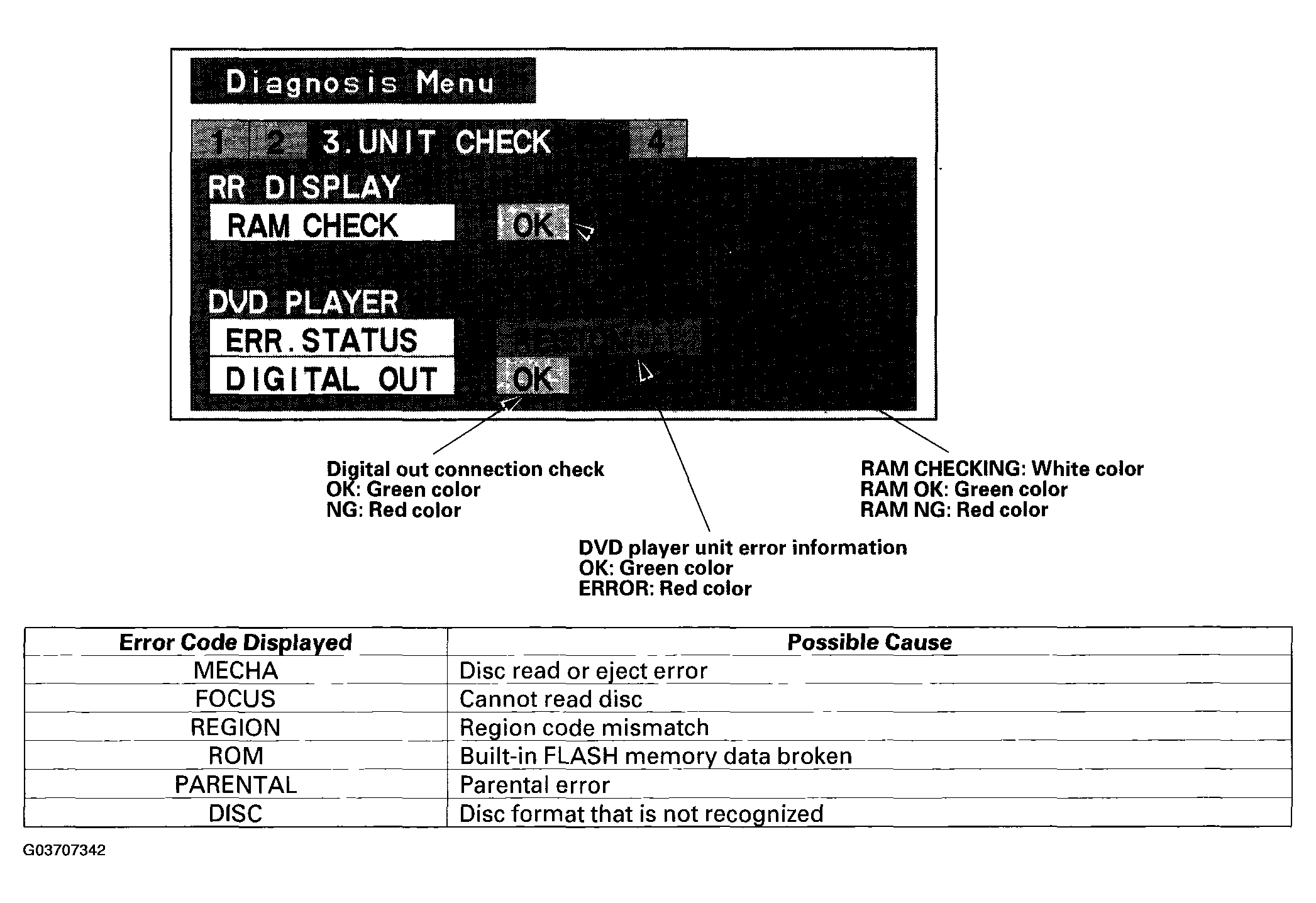

Fig 3: Identifying Self-Diagnostic Function Mode Display - Unit Check
Courtesy of AMERICAN HONDA MOTOR CO., INC.
VERSION
The screen will display device version information while in this self-diagnostic mode.

If a connection to a device is no-good, the screen will display "-".

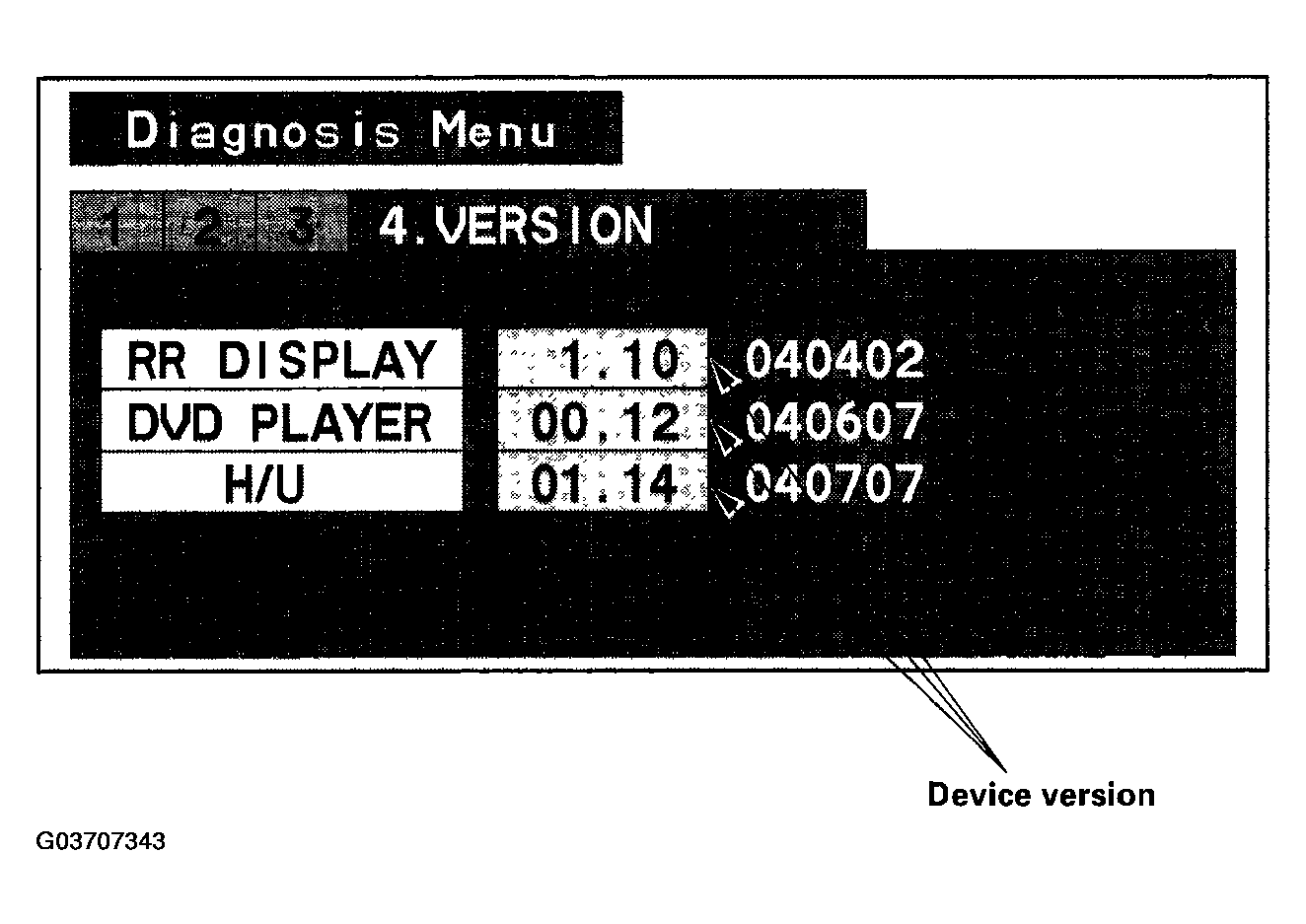

Fig 4: Identifying Self-Diagnostic Function Mode Display - Version
Courtesy of AMERICAN HONDA MOTOR CO., INC.
