Front Subframe Alignment

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Before removing the subframe, make a mark where the subframe lines up with the body for reinstallation.
When installing, align both installation reference holes in the subframe with the reference holes in the body using a screwdriver or tapered punch as a guide.
After mounting the subframe and brackets loosely, align the reference marks with the body, then tighten the bolts.

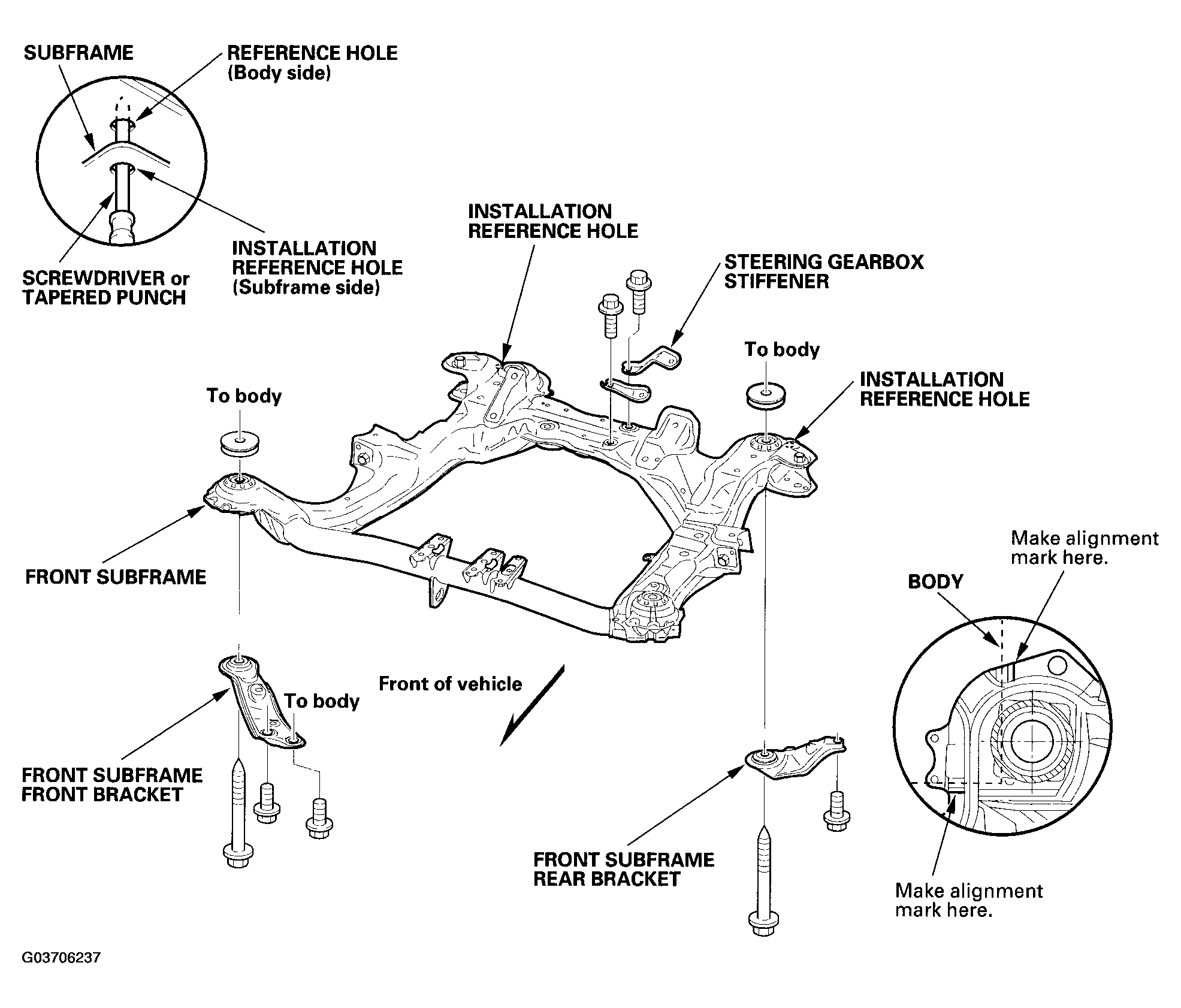

Fig 1: Identifying Front Subframe Alignment

Courtesy of AMERICAN HONDA MOTOR CO., INC.
