Connected ECUs
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

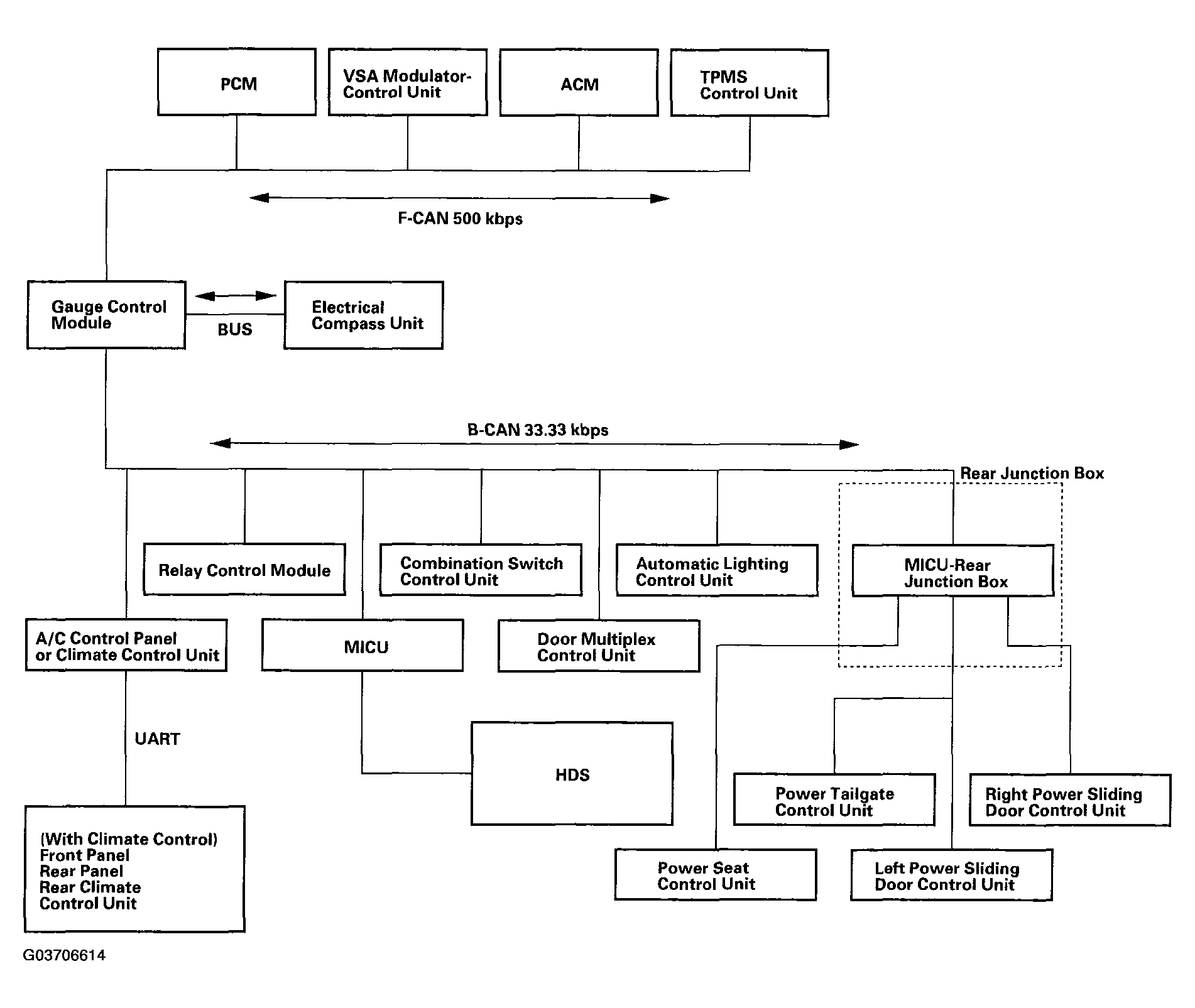

Several ECUs are connected to each of the two networks. The gauge control module is part of both networks since it is the "gateway" between them. Here is a list of ECUs and the network they are connected to.
B-CAN ECUs
- Gauge control module
- Relay control module
- Multiplex integrated control unit (MICU)
- Door multiplex control unit
- Combination switch control unit
- MICU-rear junction box
- Power tailgate control unit
- Power seat control unit
- Left power sliding door control unit
- Right power sliding door control unit
- A/C control panel/climate control unit
- Automatic lighting control unit
F-CAN ECUs
- Gauge control module
- PCM
- VSA modulator-control unit
- ACM
- TPMS control unit
