Knock Sensor Replacement

  1. Remove the splash shield (see ENGINE REMOVAL ).
  2. Disconnect the knock sensor 1P connector.
  3. Remove the knock sensor (A).

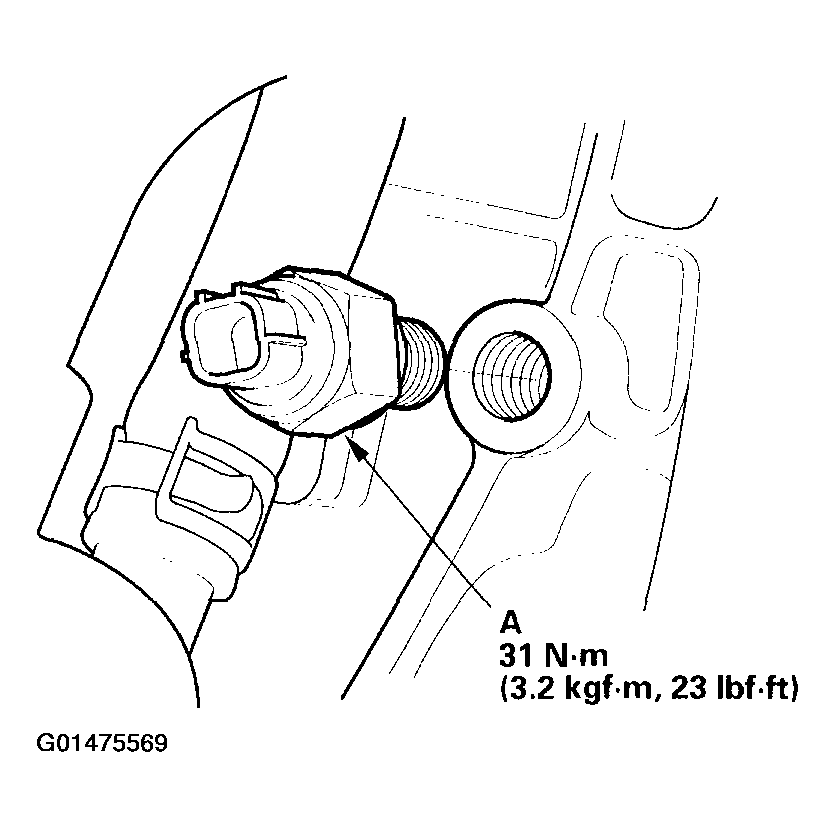

    Fig 1: Removing/Installing Knock Sensor
    G01475569Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the sensor in the reverse order of removal.
