Vacuum Hose Routing

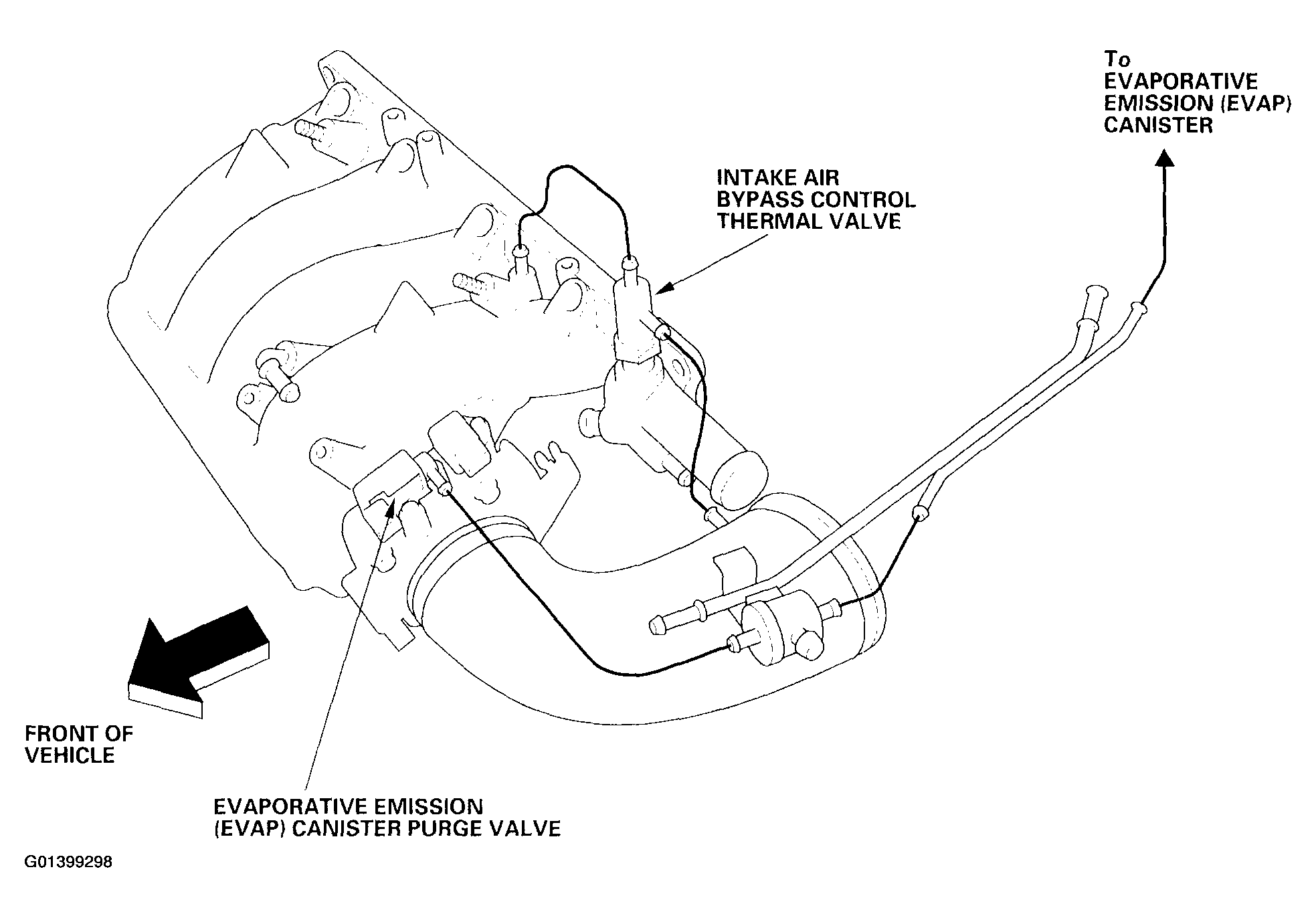

Fig 1: Identifying Vacuum Hose Routing (1 Of 2)
G01399298Courtesy of AMERICAN HONDA MOTOR CO., INC.

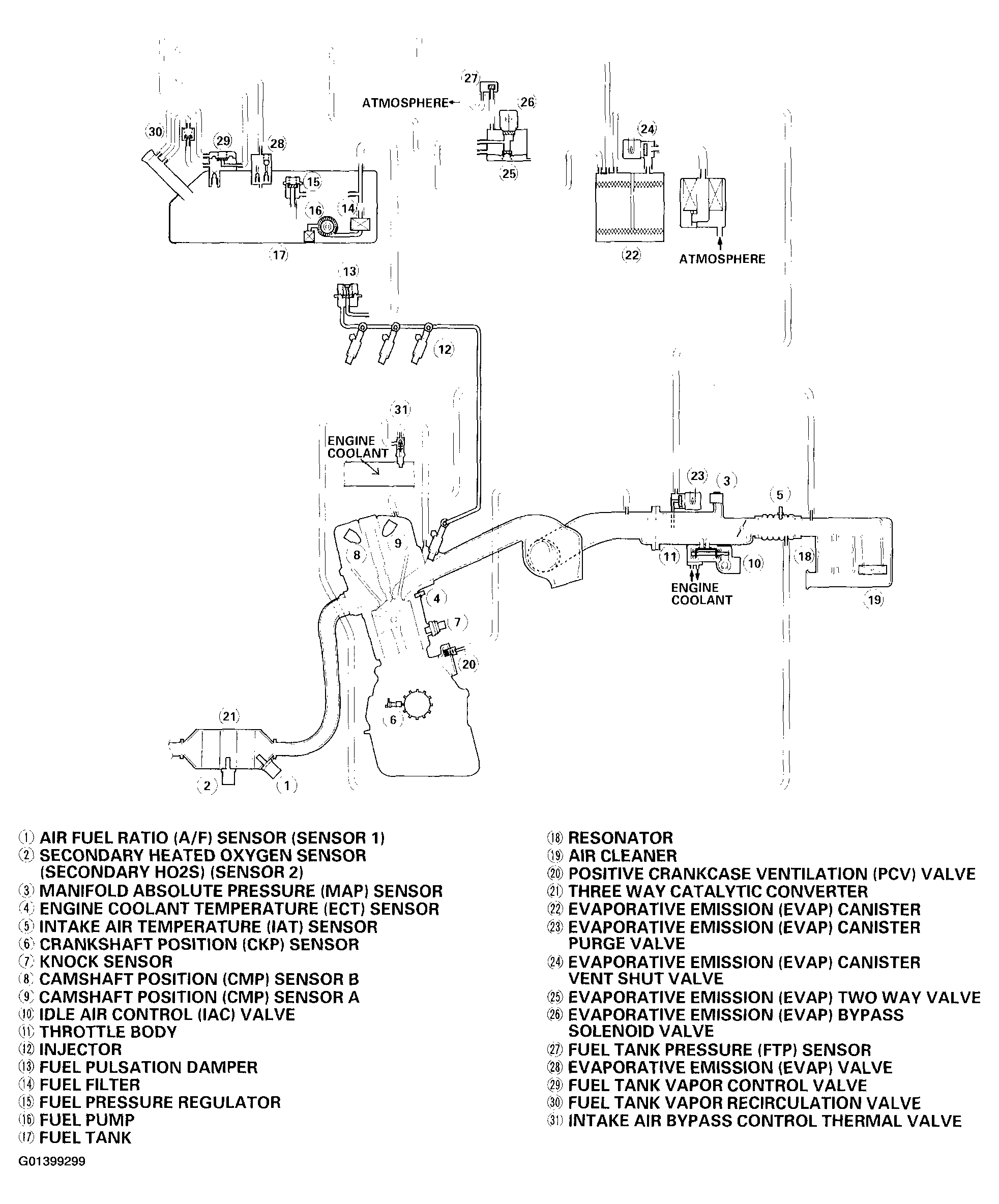

Fig 1: Identifying Vacuum Hose Routing (2 Of 2)
G01399299Courtesy of AMERICAN HONDA MOTOR CO., INC.
