FTP Sensor Replacement

Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).
Remove the FTP sensor (A).

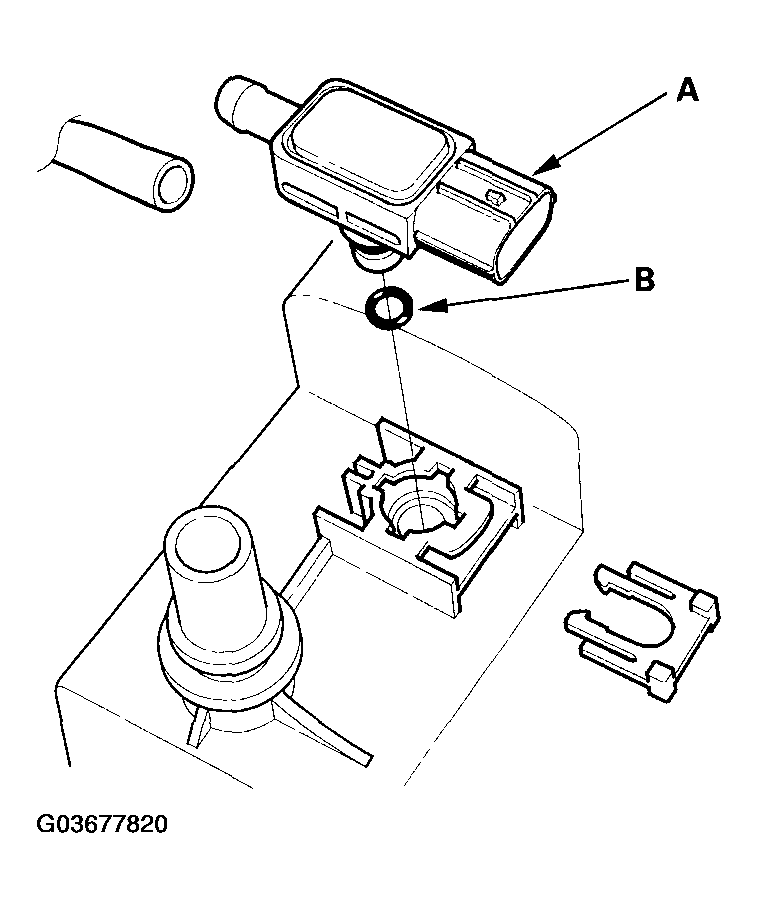

Fig 1: Removing FTP Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal with a new O-ring (B).
