Air Cleaner Element Inspection/Replacement

  1. Remove the air cleaner bolts (A) and the air cleaner housing cover (B).

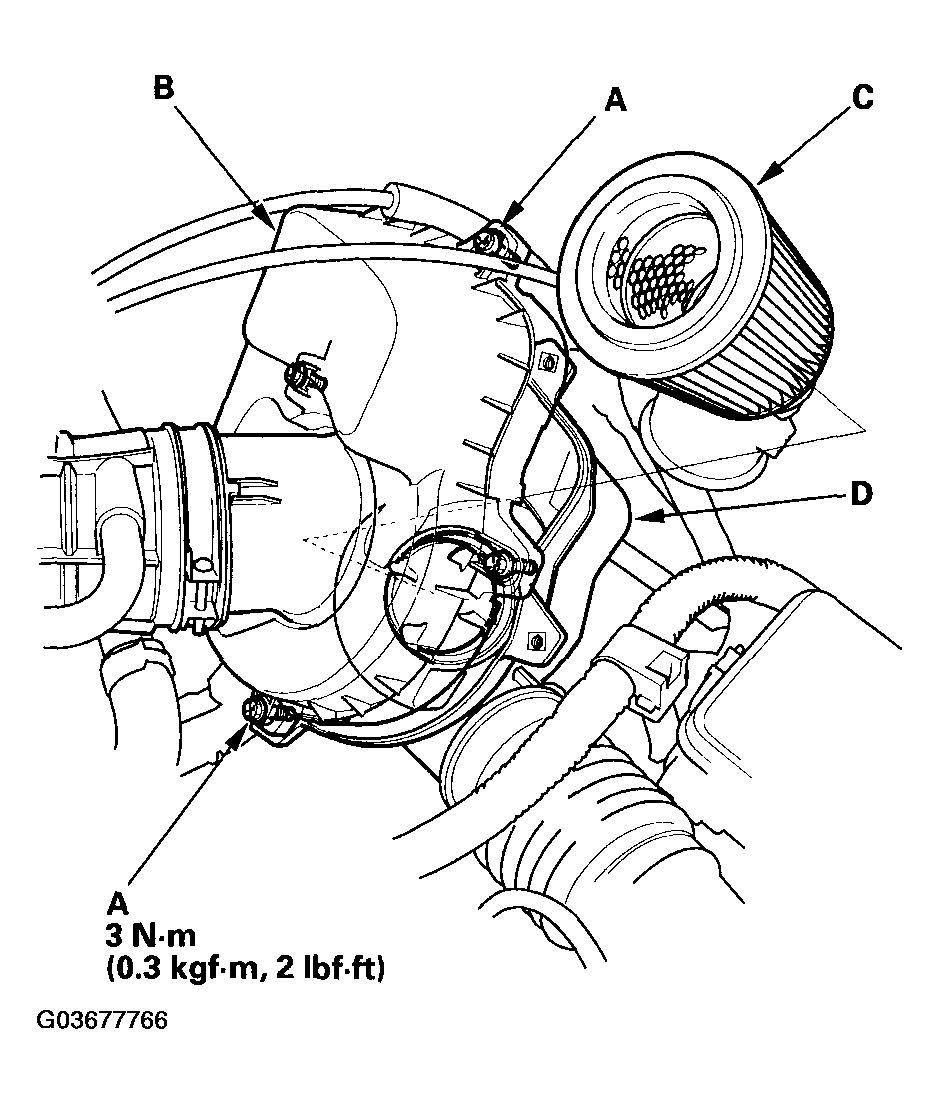

    Fig 1: Removing Air Cleaner Housing Cover And Torque Specifications
    G03677766Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner element (C) from the air cleaner housing (D).
  3. Check the air cleaner element for damage or clogging. If there is damage or clogging, replace the air cleaner element.
    NOTE: Do not use compressed air to clean the air cleaner element.
  4. Clean and remove any debris from inside the air cleaner housing.
  5. Install the parts in the reverse order of removal.
