Intake Air Bypass Control Thermal Valve Replacement

Remove the intake manifold cover (see step 3 on REMOVAL ).
Disconnect the hoses (A).

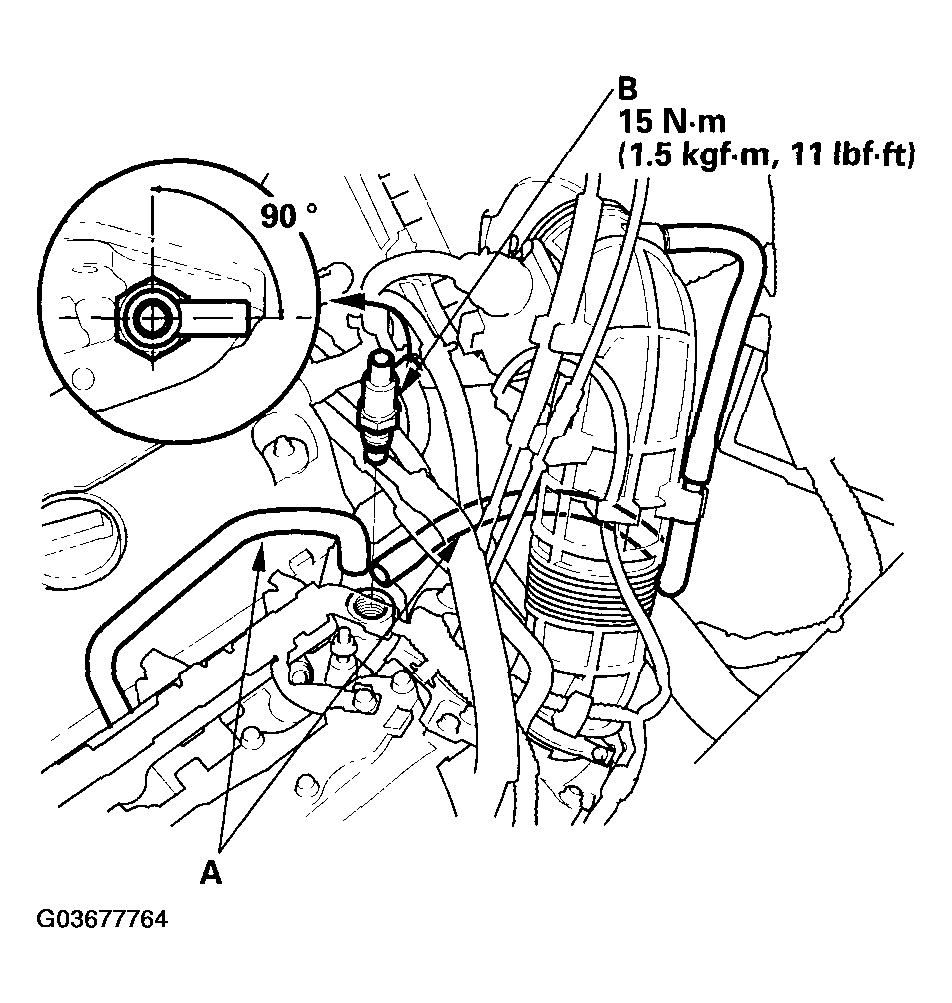

Fig 1: Removing Intake Air Bypass Control Thermal Valve And Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake air bypass control thermal valve (B).
Install the valve in the reverse order of removal.
NOTE: Position the valve angle as shown.
