Throttle Body Disassembly/Reassembly

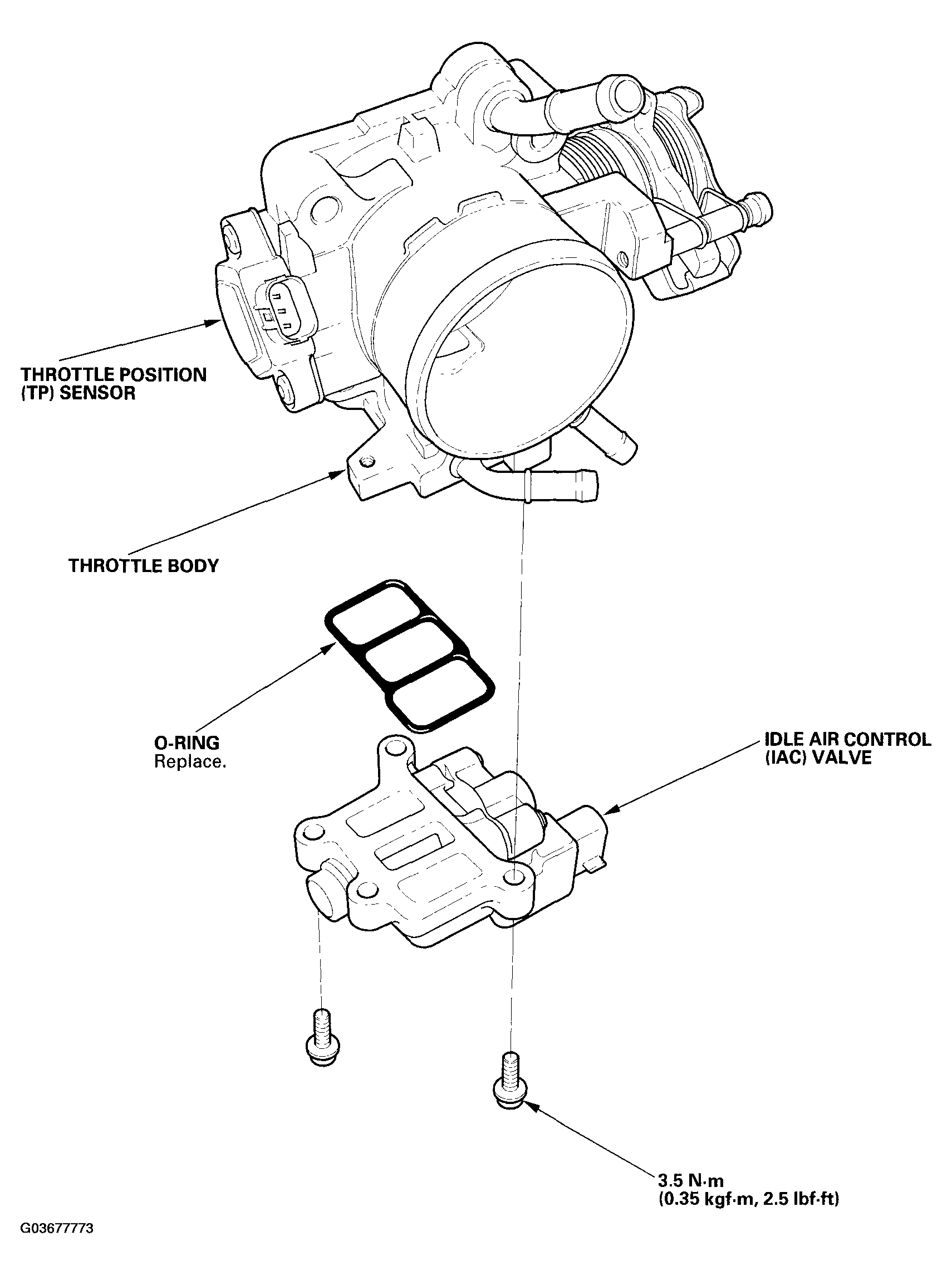

Fig 1: Disassembling View Of Throttle Body And Torque Specifications
G03677773Courtesy of AMERICAN HONDA MOTOR CO., INC.
