ECM/PCM Inputs and Outputs at Connector A (31P)

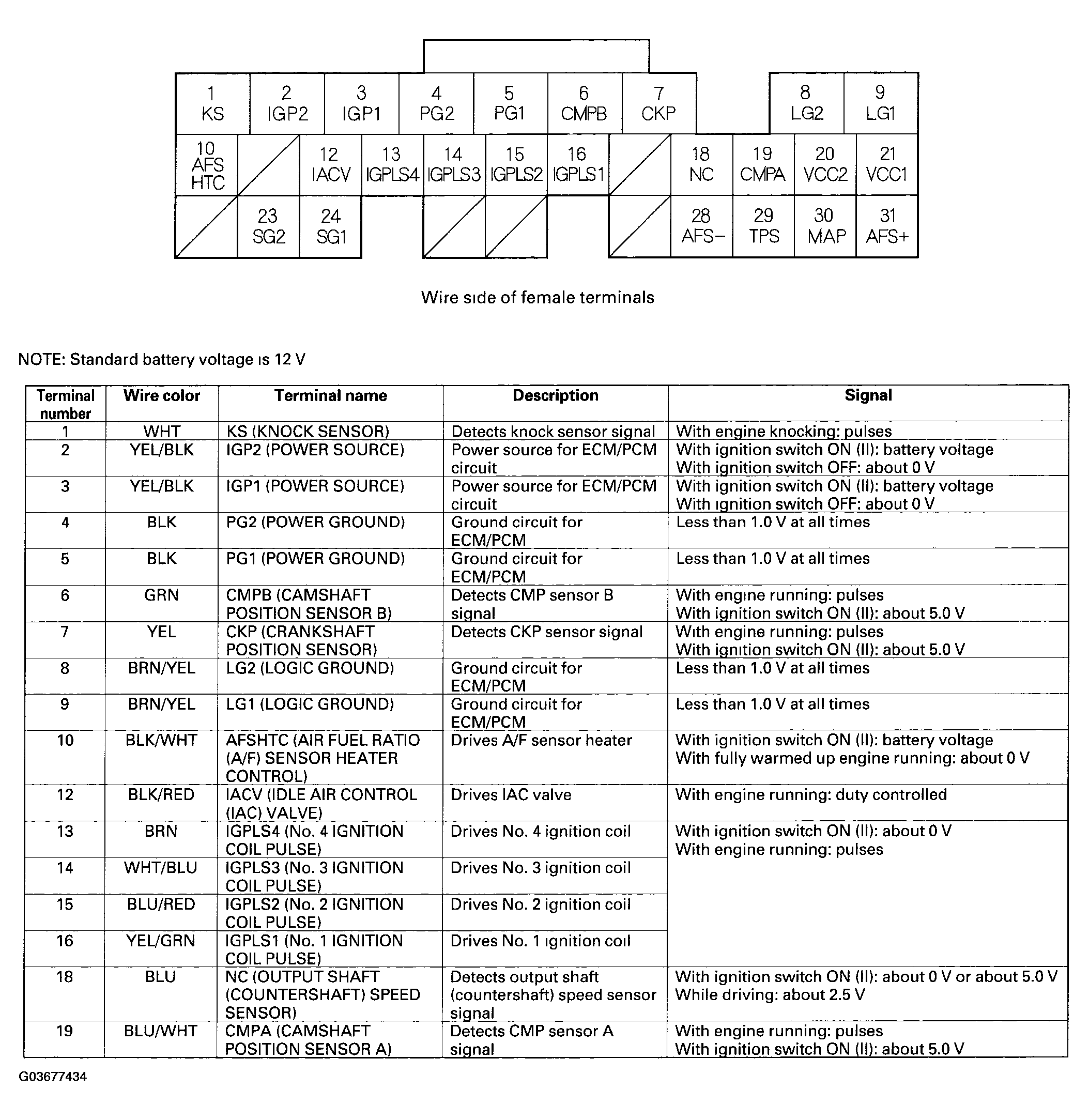

Fig 1: Identifying ECM/PCM Inputs And Outputs Connector A (31P) And Terminal Description (1 Of 2)
G03677434Courtesy of AMERICAN HONDA MOTOR CO., INC.

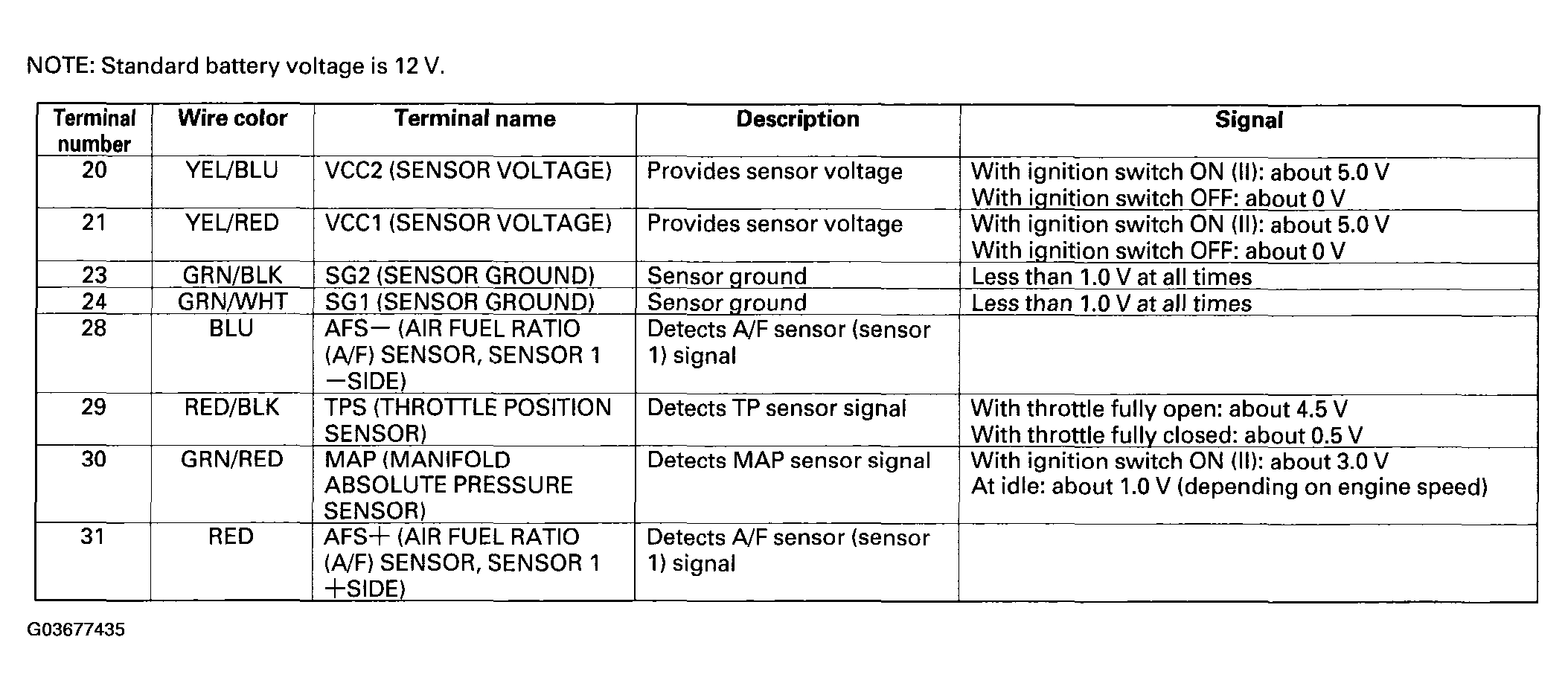

Fig 2: Identifying ECM/PCM Inputs And Outputs Connector A (31P) And Terminal Description (2 Of 2)
G03677435Courtesy of AMERICAN HONDA MOTOR CO., INC.
