Engine Control Module Terminal Arrangement

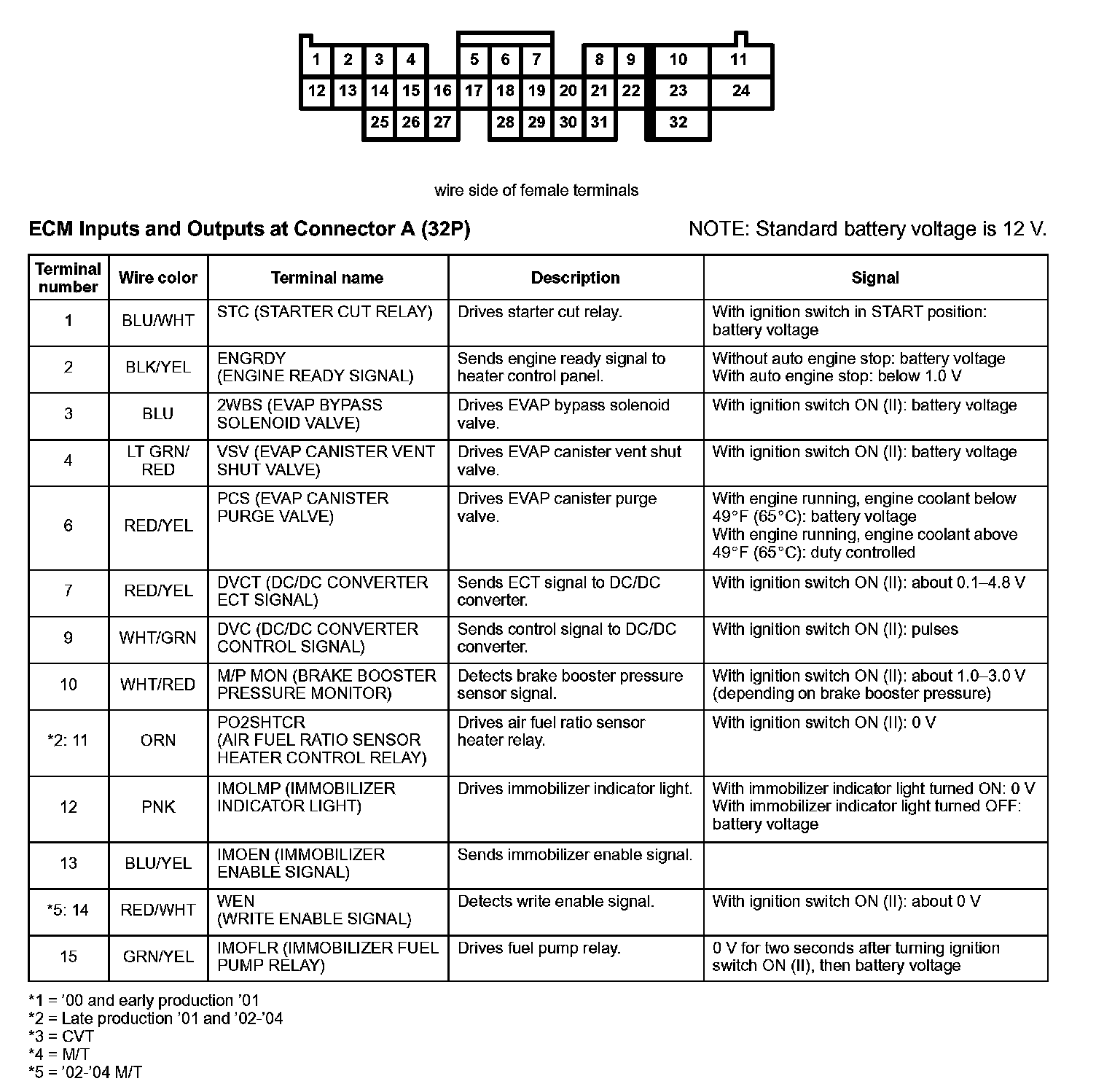

ECM Inputs and Outputs at Connector A (32P) Part 1:

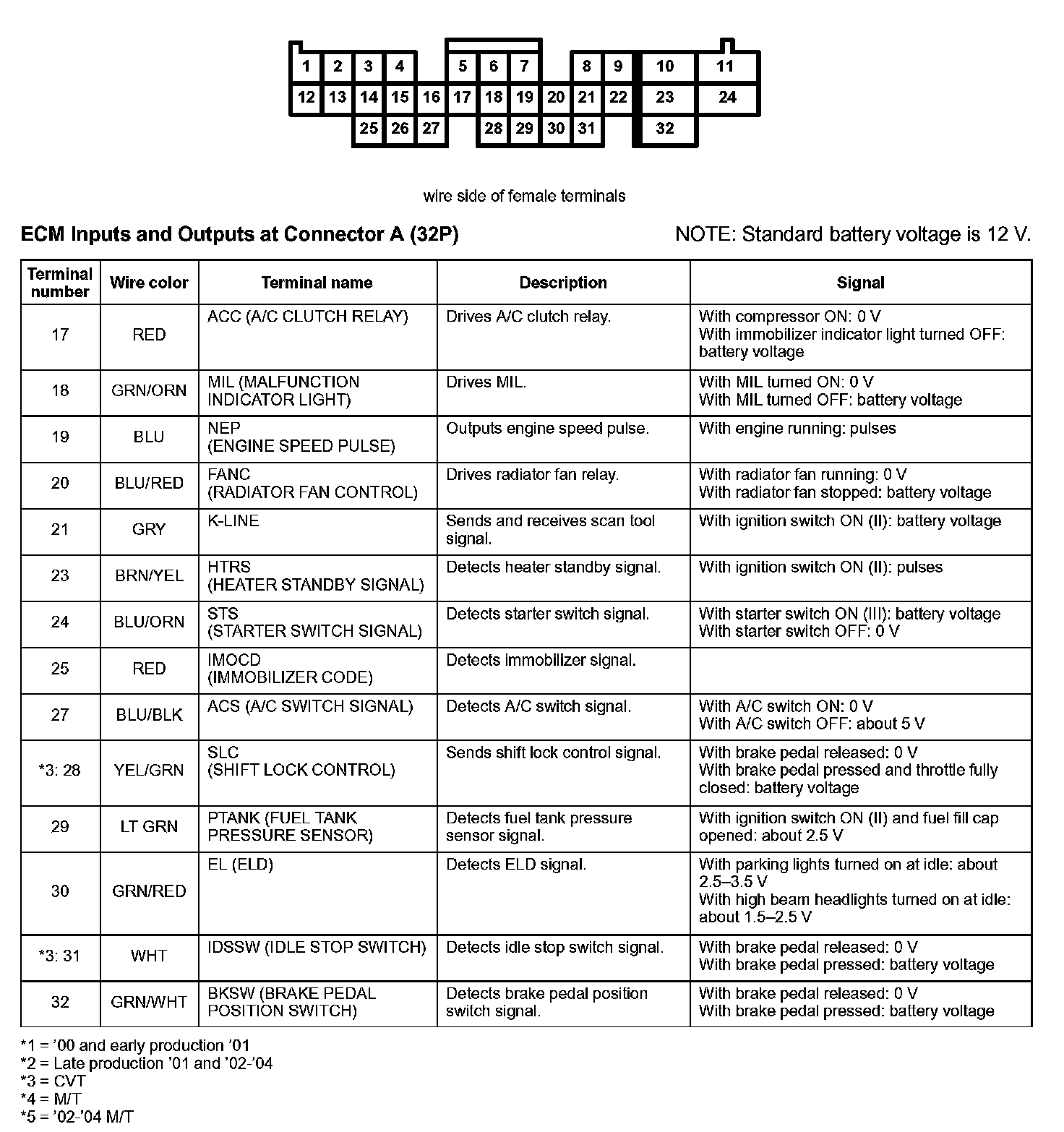

ECM Inputs and Outputs at Connector A (32P) Part 2:

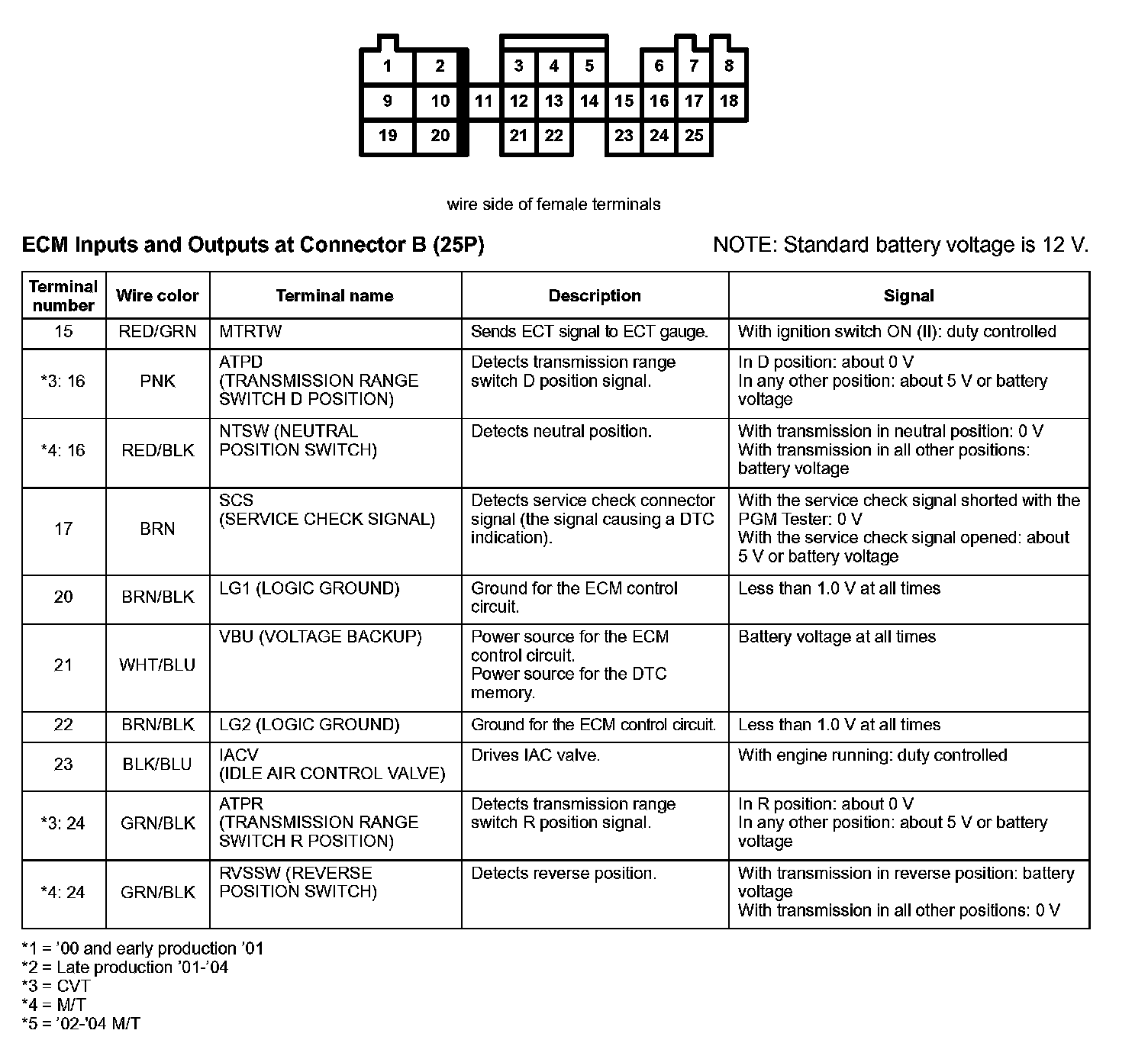

ECM Inputs and Outputs at Connector B (25P) Part 1:

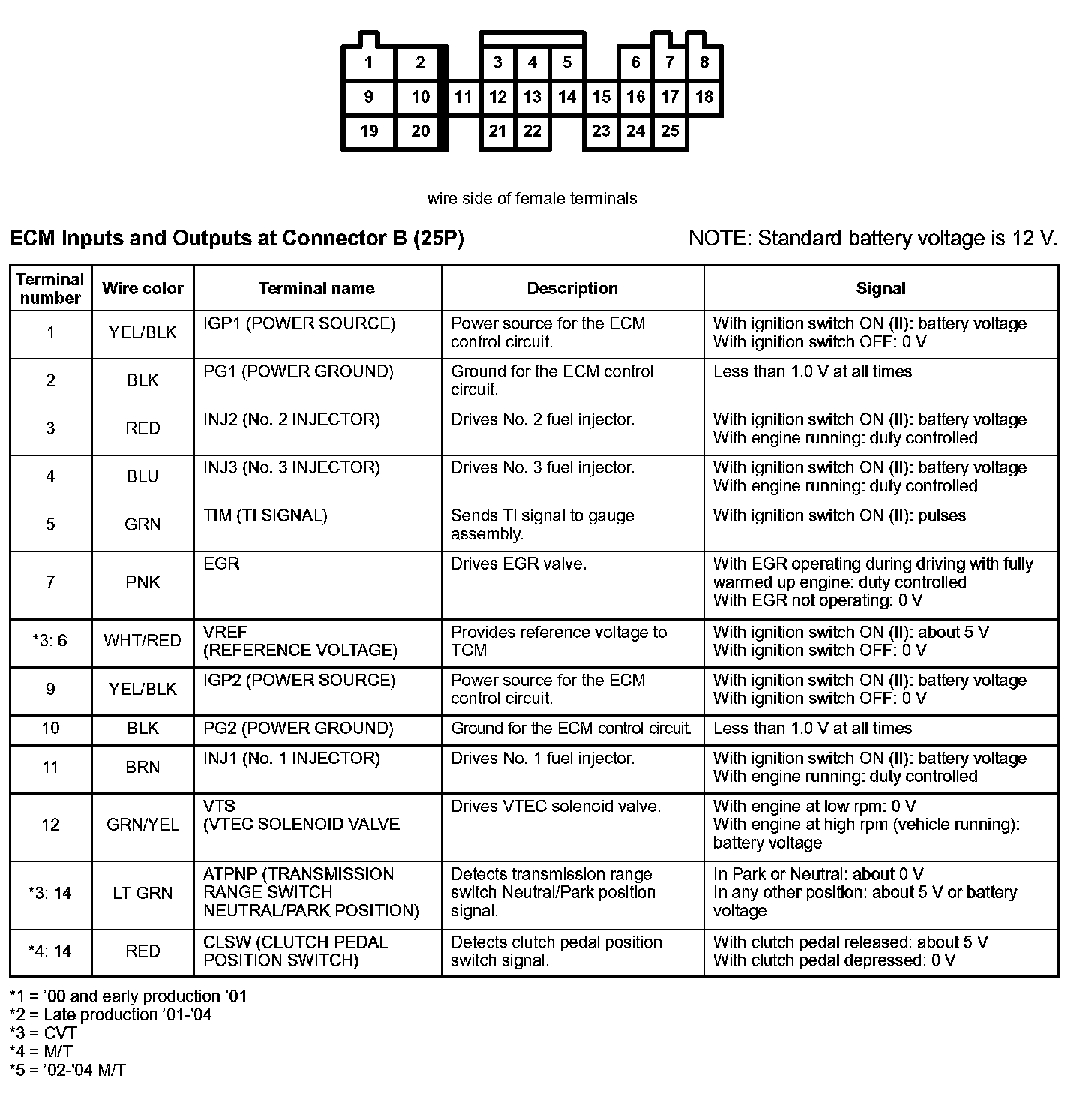

ECM Inputs and Outputs at Connector B (25P) Part 2:

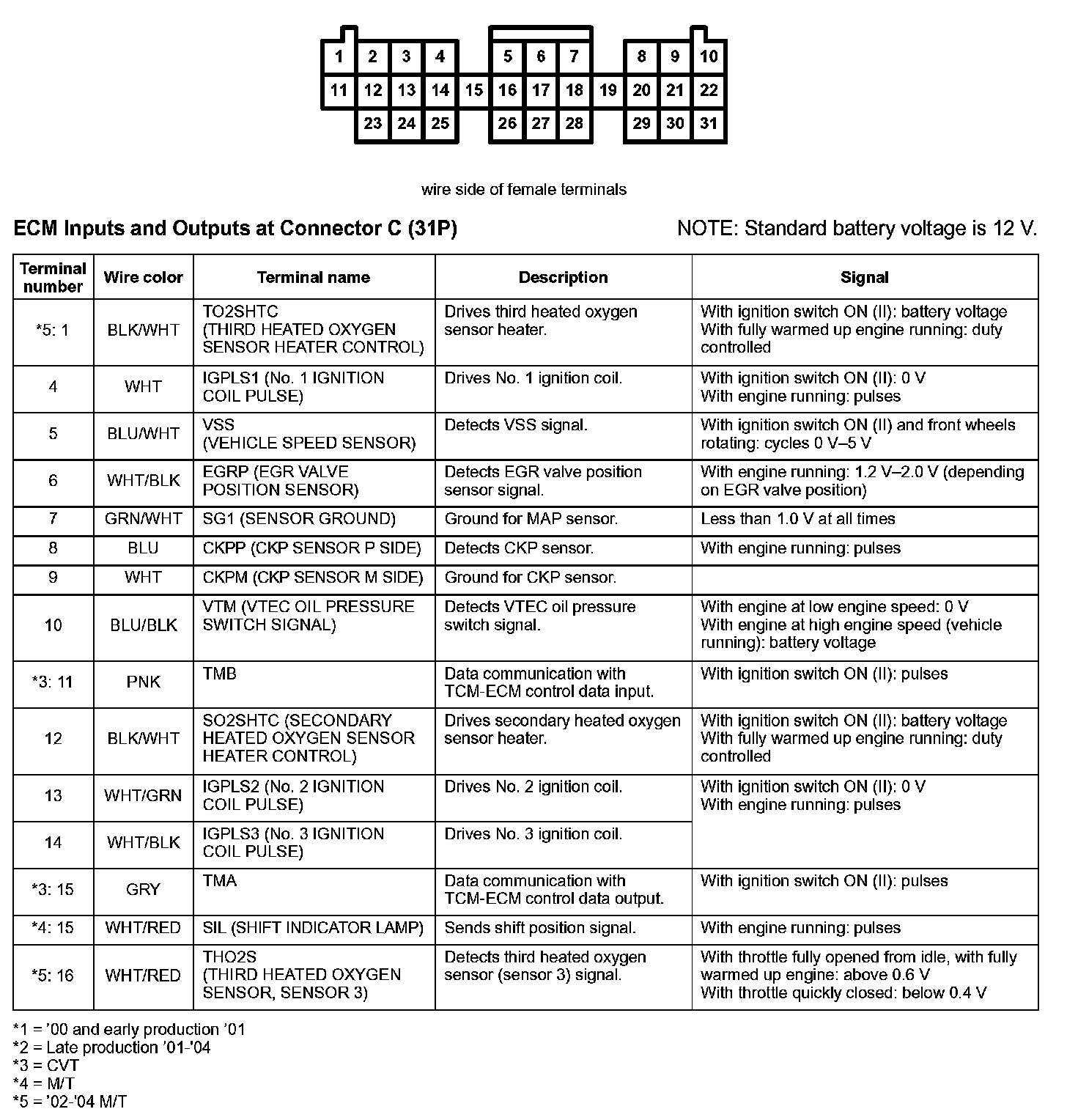

ECM Inputs and Outputs at Connector C (31P) Part 1:



ECM Inputs And Outputs At Connector C (31P) Part 2:

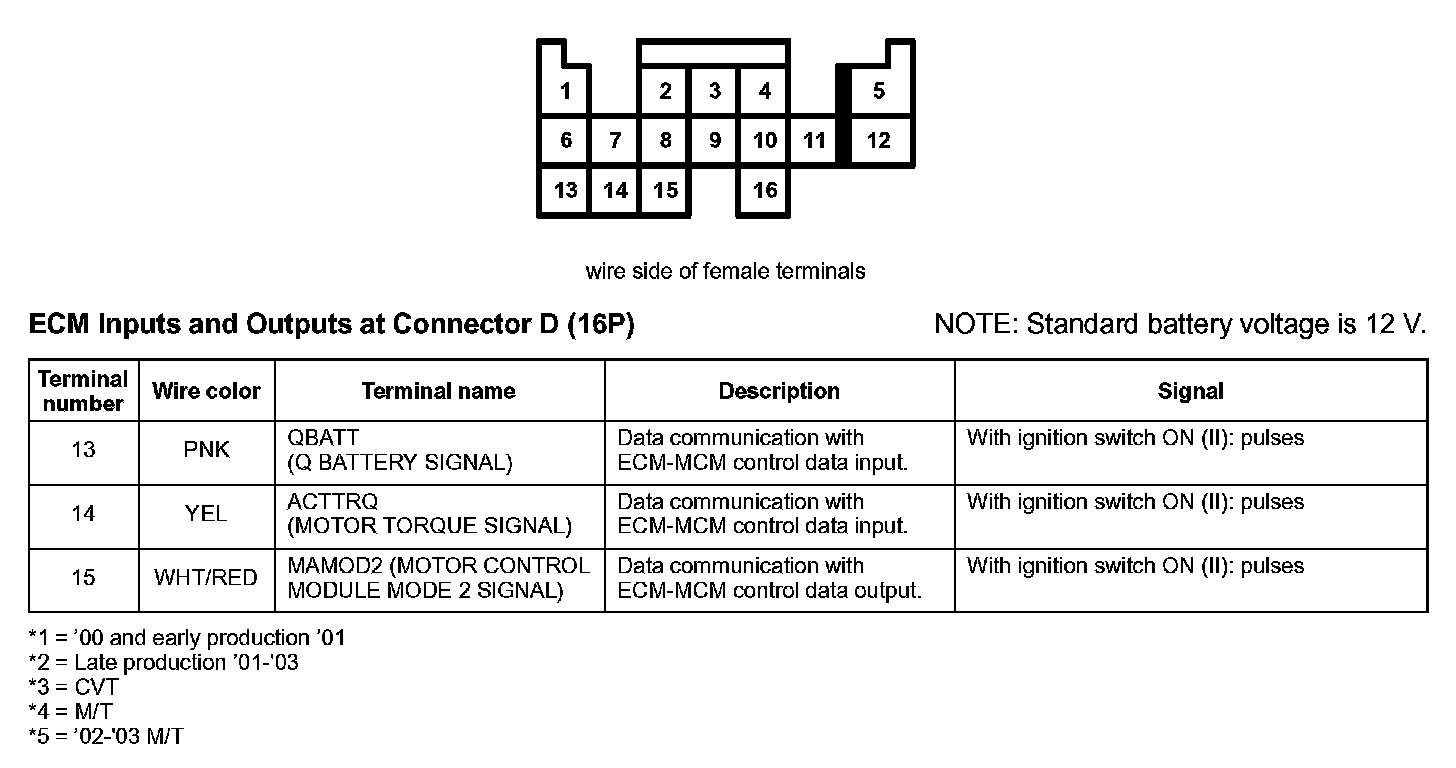

ECM Inputs and Outputs at Connector D (16P) Part 1:

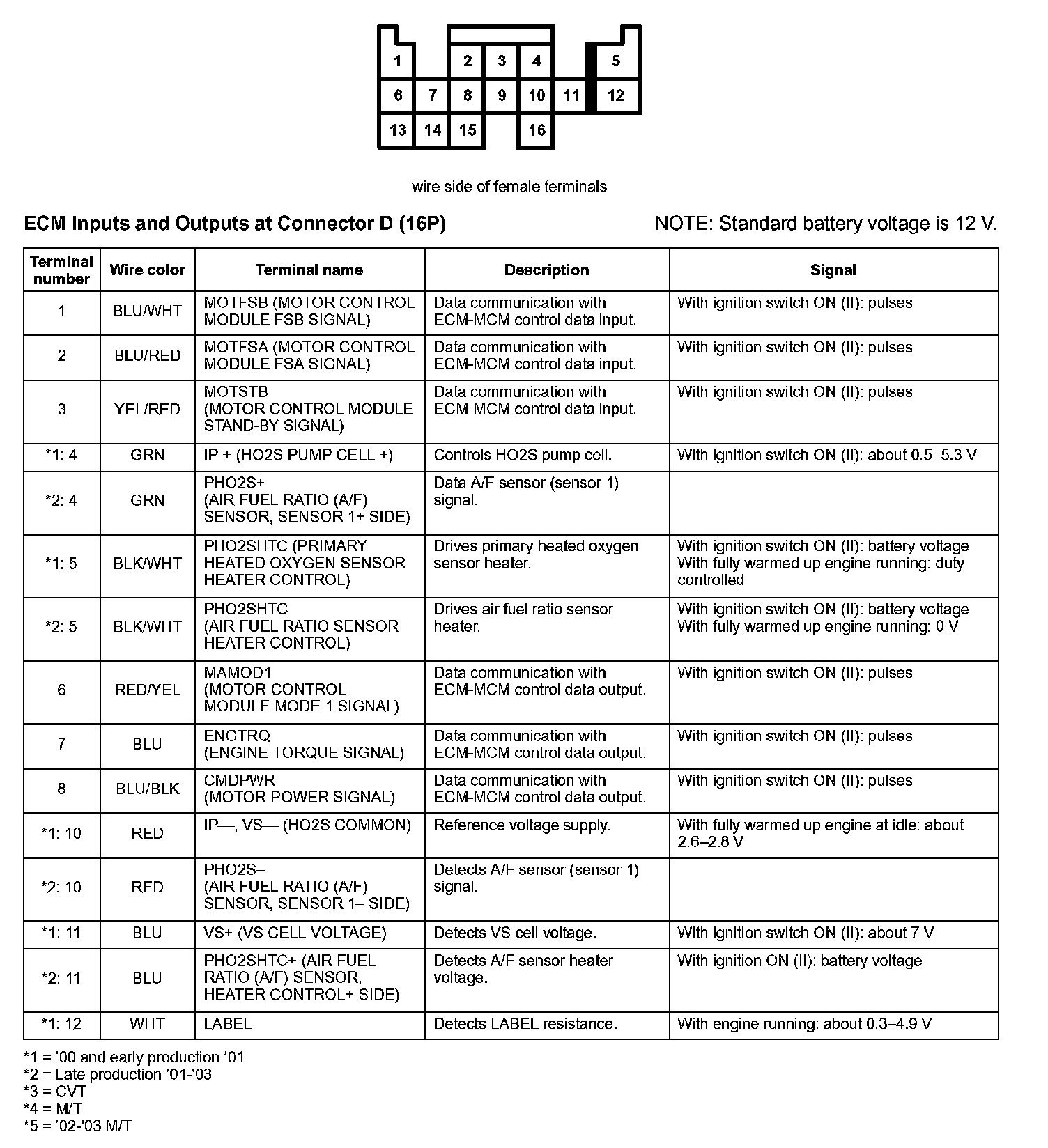

ECM Inputs and Outputs at Connector D (16P) Part 2:
