Engine Control Module: Locations

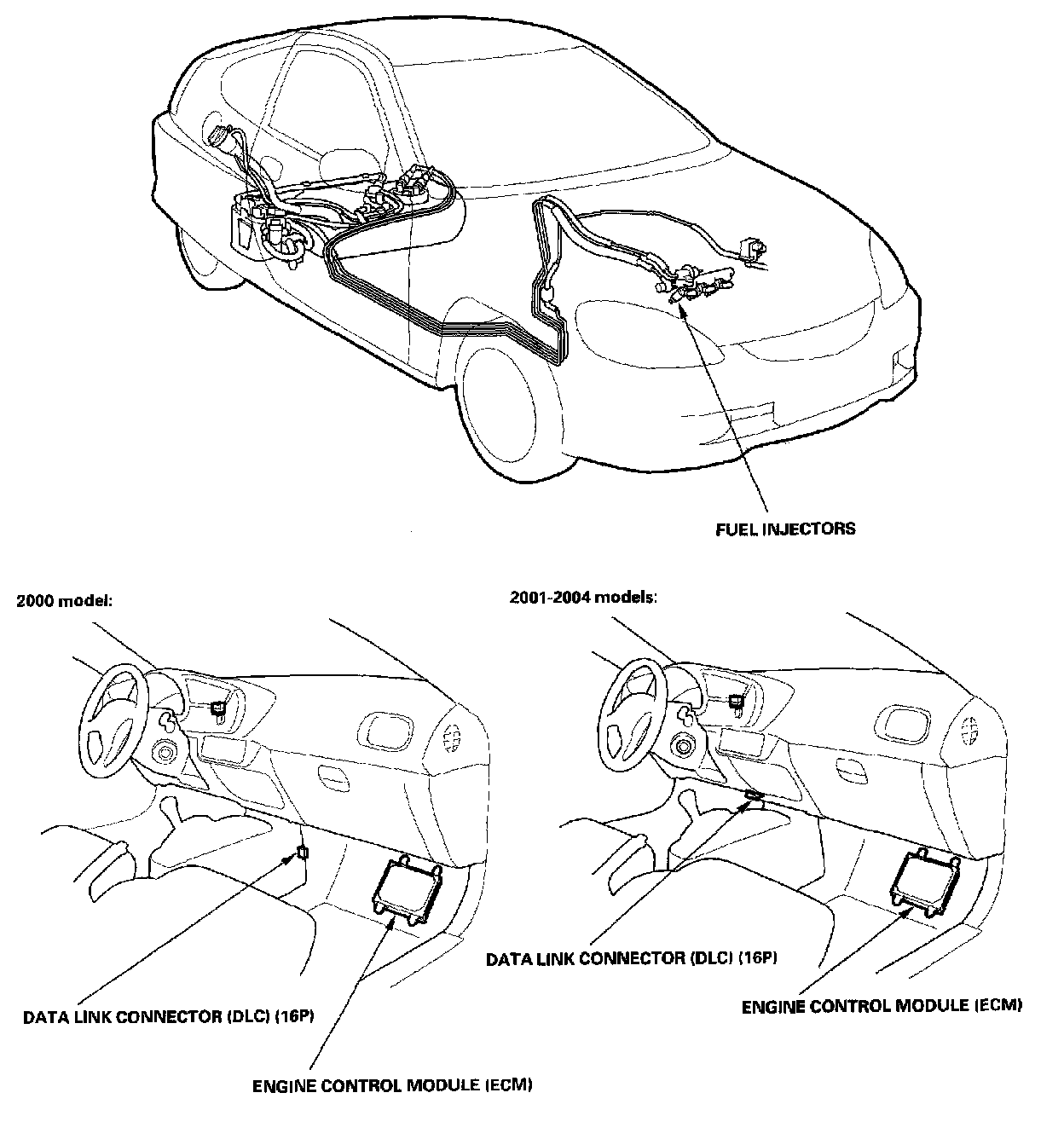

PGM-FI System - Component Location Index:

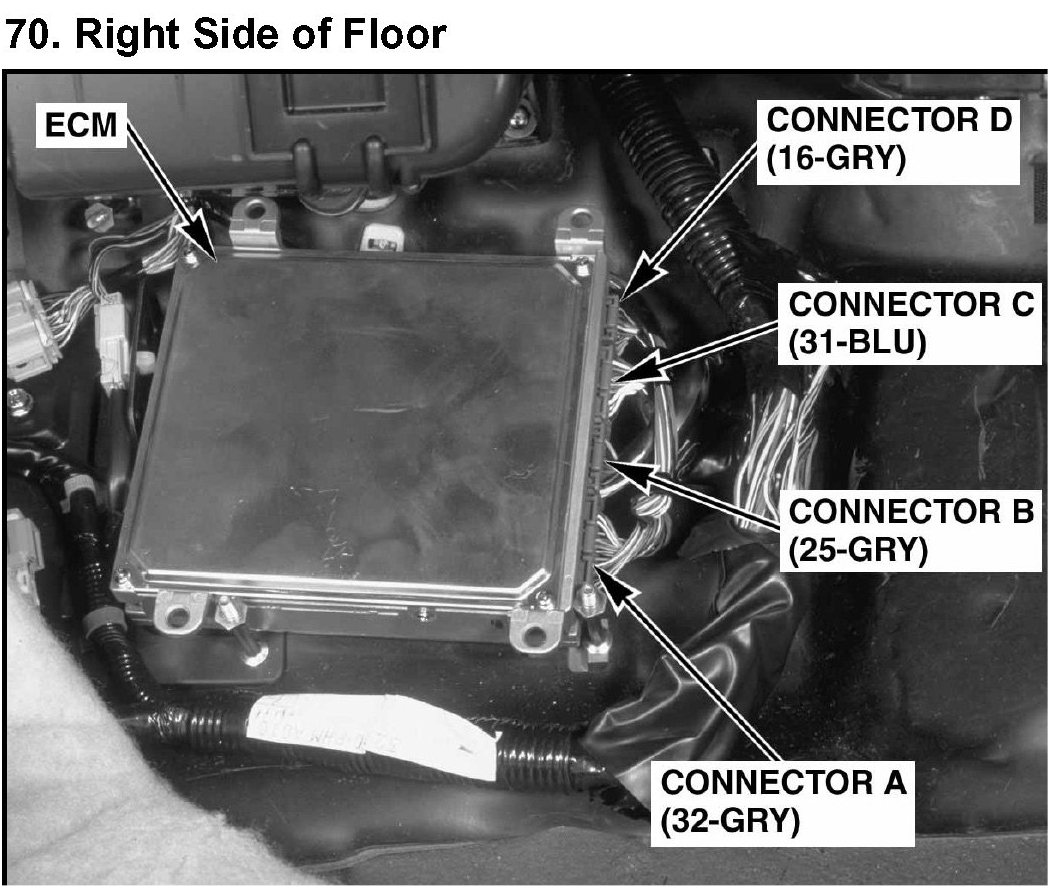

70. Right Side of Floor:

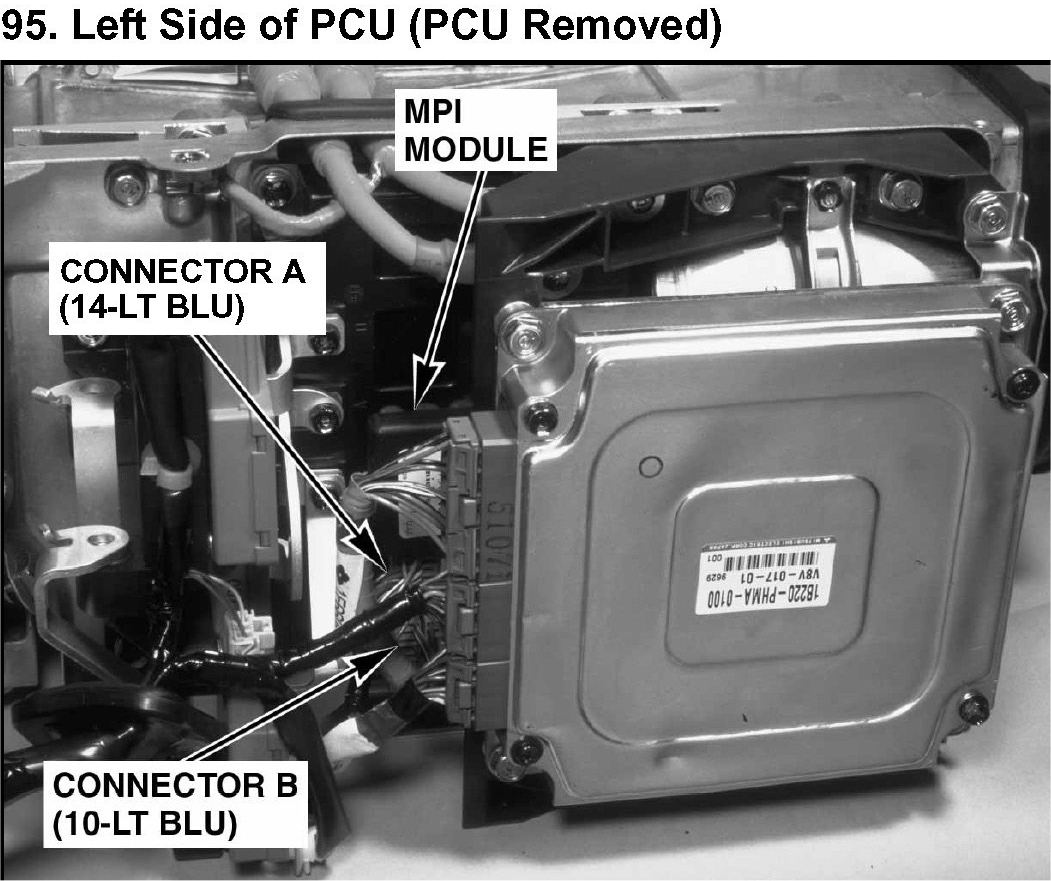

95. Left Side of PCU (PCU Removed):
