Air Mix Control Motor Connector End View

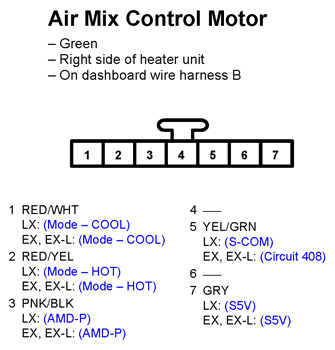

Fig 1: Air Mix Control Motor Connector End View
G11250792Courtesy of AMERICAN HONDA MOTOR CO., INC.
