Navigation Module: Service and Repair

Navigation Unit Removal/Installation

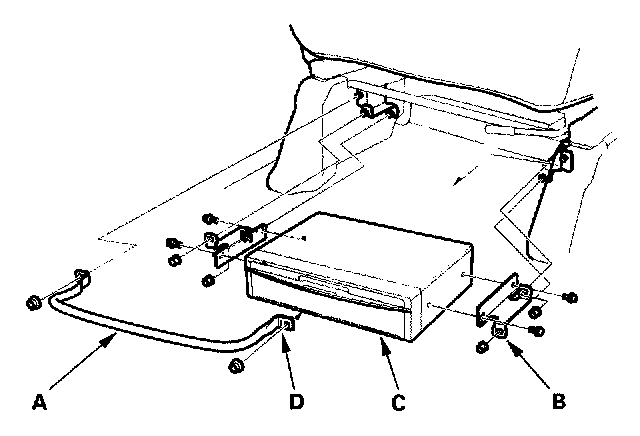

1. Remove the navigation unit guard (A) from the bracket.
2. Remove the navigation unit bracket (B) from the passenger's seat.
3. Remove the navigation unit (C) from the bracket.
4. Install the parts in the reverse order of removal.

NOTE: Install the navigation unit guard with the arrow (D) pointing up.

5. Perform After servicing Procedures.
