Home >> Honda >> 2003 >> Odyssey V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry >> Keyless Entry Module
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Keyless Entry Module

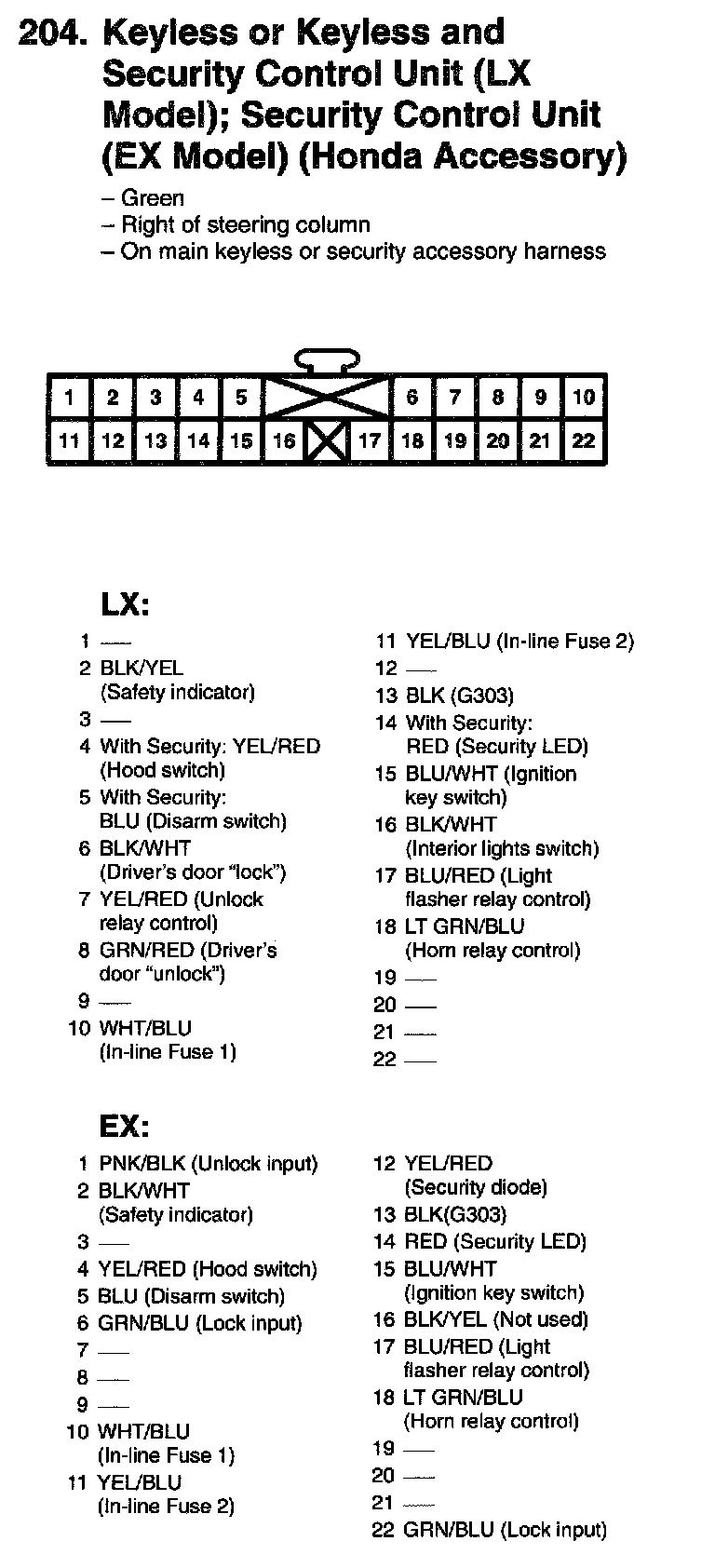

204. Keyless Or Keyless And Security Control Unit (LX Model); Security Control Unit (EX Model) (Honda Accessory):
