With Navigation System

Climate Control Panel Removal and Installation (With Navigation System)

1. Remove the instrument panel with the climate control panel.

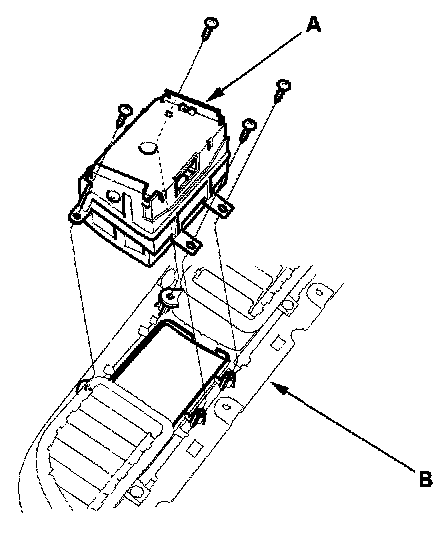

2. Remove the self-tapping screws and the climate control panel (A) from the instrument panel (B).
3. Install the control panel in the reverse order of removal. After installation, operate the climate control panel to see whether it works properly.
4. Run the self-diagnosis function to confirm that there are no problems in the system.
