Component Location

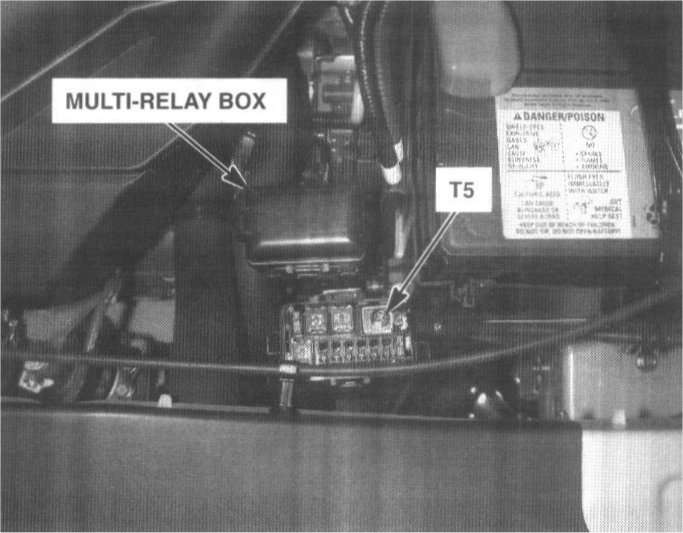

19. Right Side Of Engine Compartment:



79. Below Left End Of Dash:

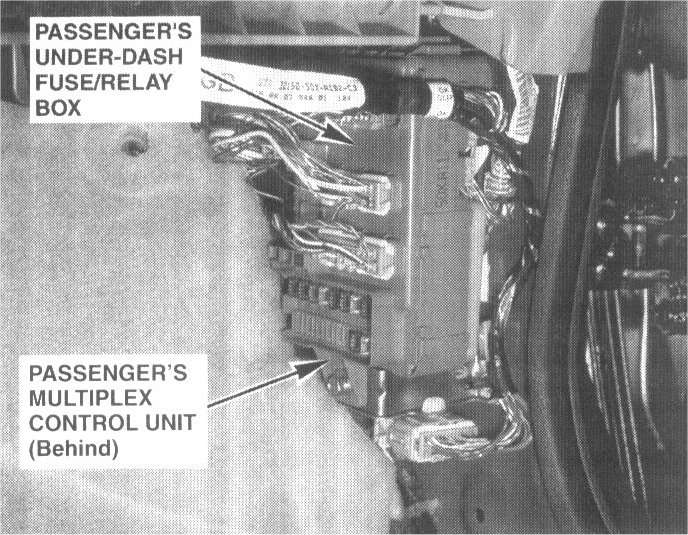

98. Behind Right Kick Panel:

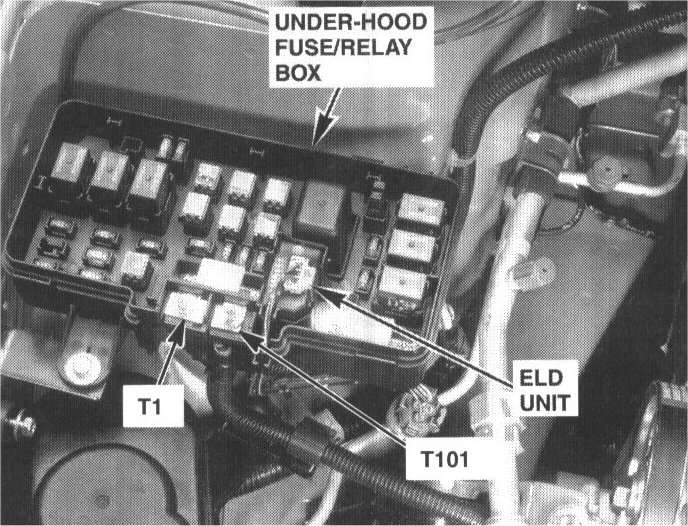

198. Left Front Of Engine Compartment (03):
