Fuse and Relay Box

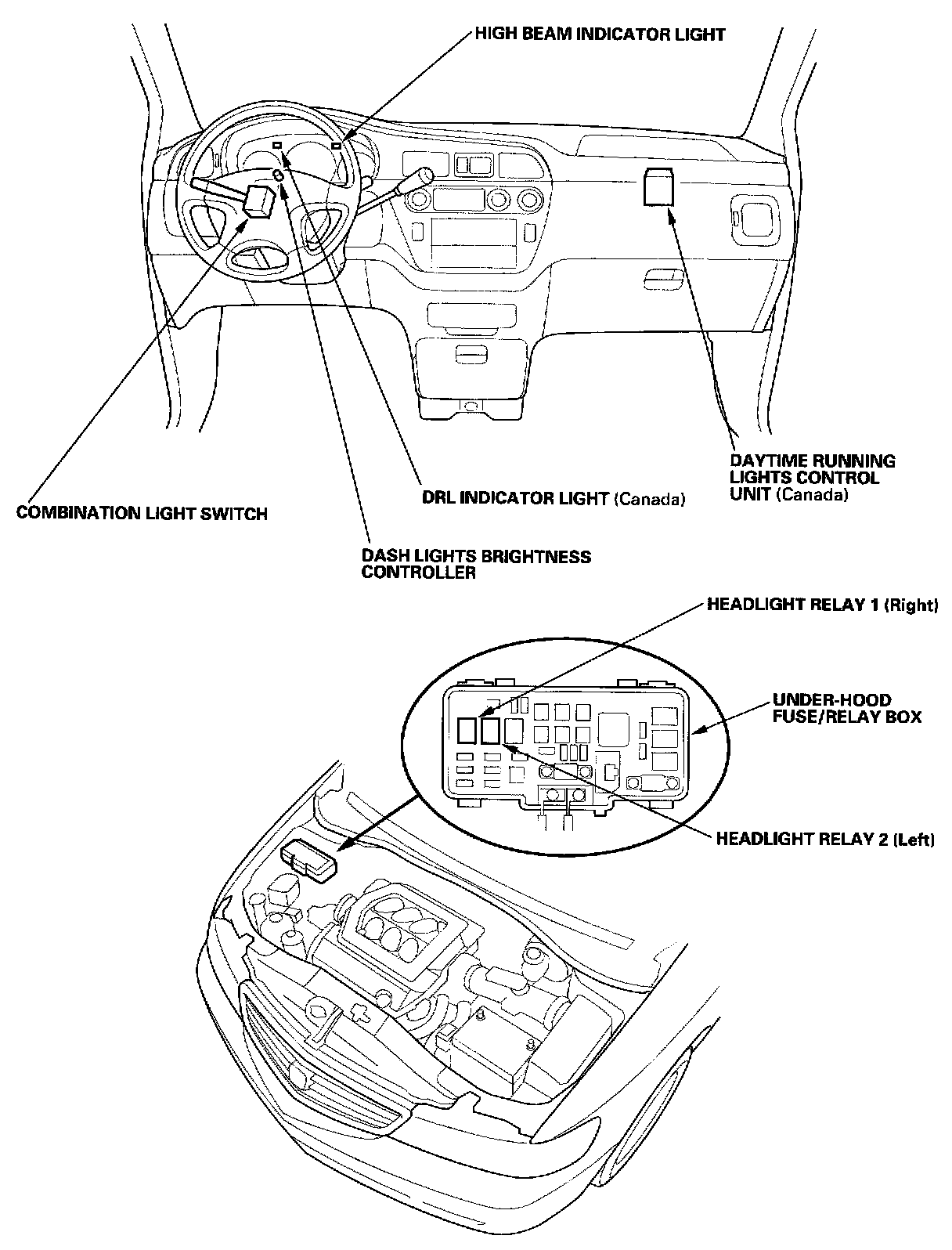

Relay And Control Unit Locations - Engine Compartment:

Relay And Control Unit Locations - Dashboard:

Relay And Control Unit Locations - Dashboard:

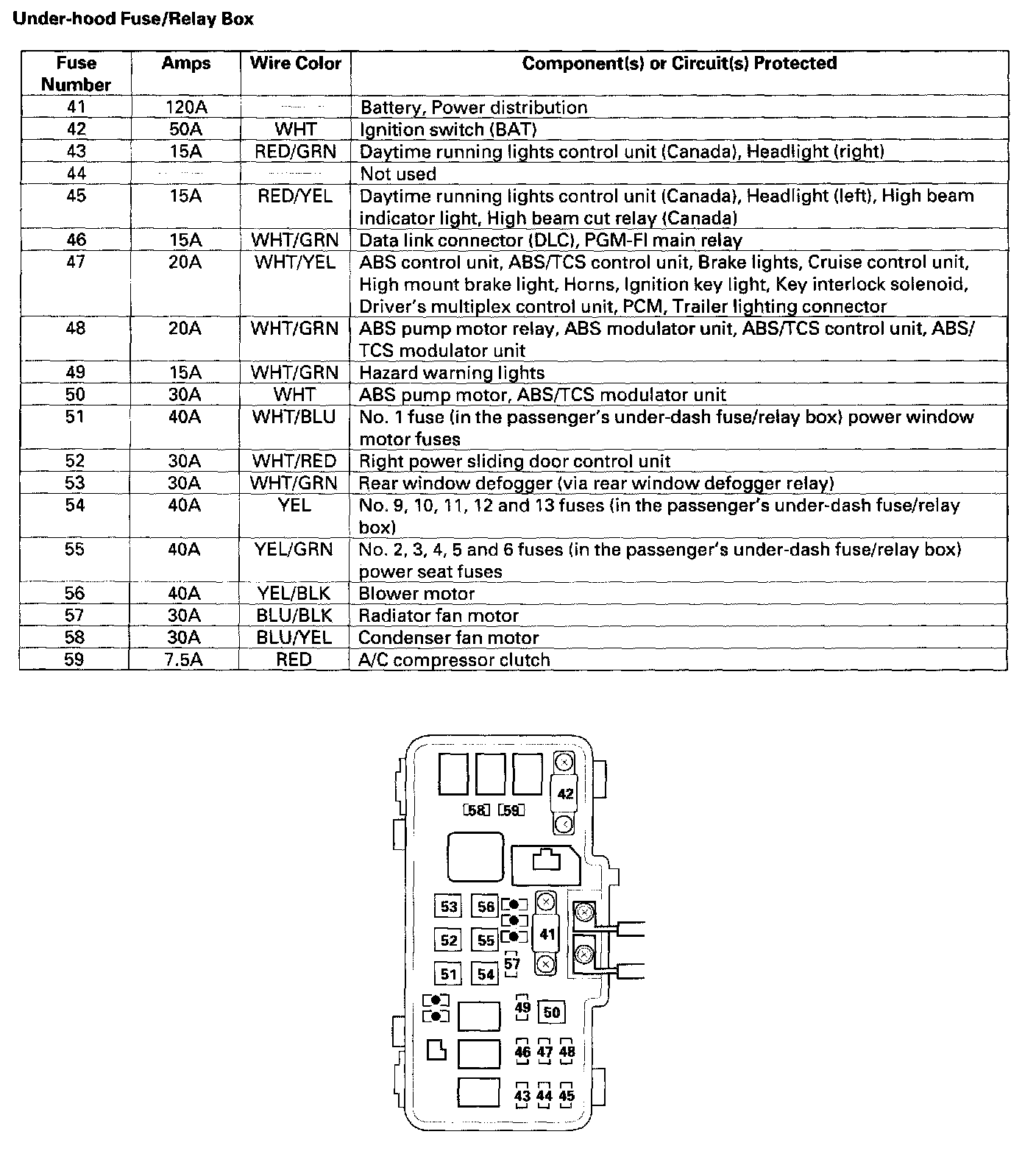

Under-hood Fuse/Relay Box:

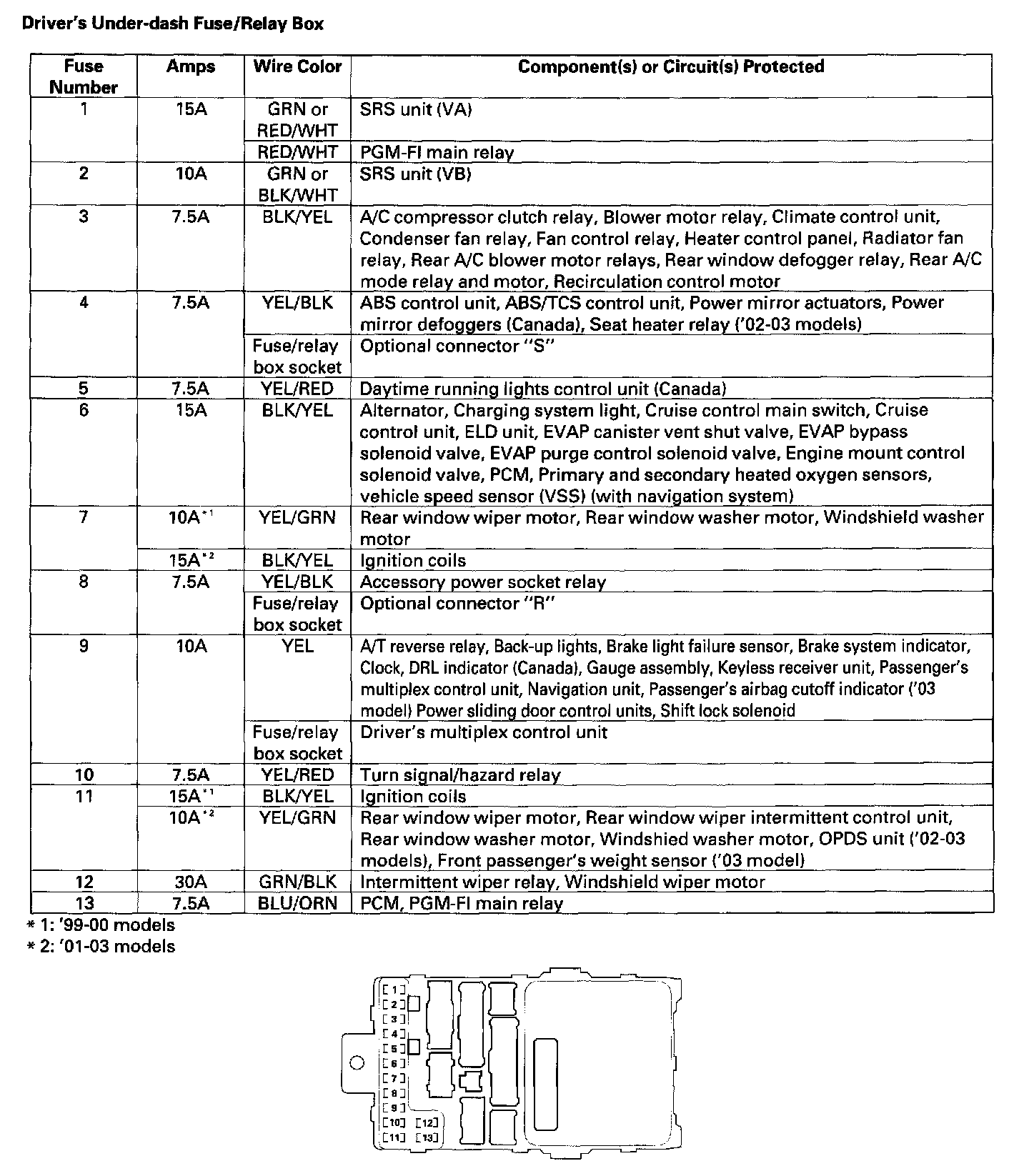

Driver's Under-dash Fuse/Relay Box:

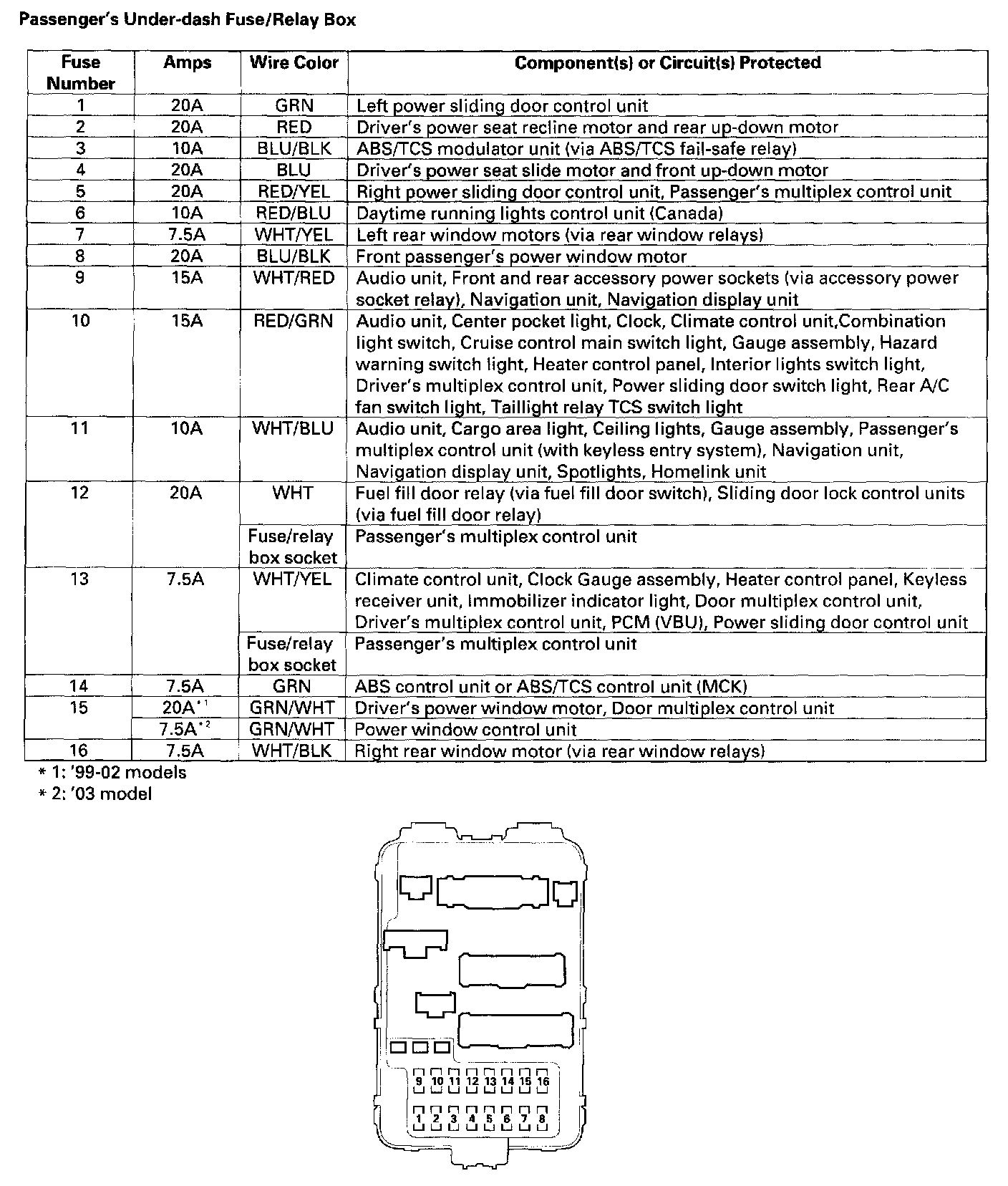

Passenger's Under-dash Fuse/Relay Box:

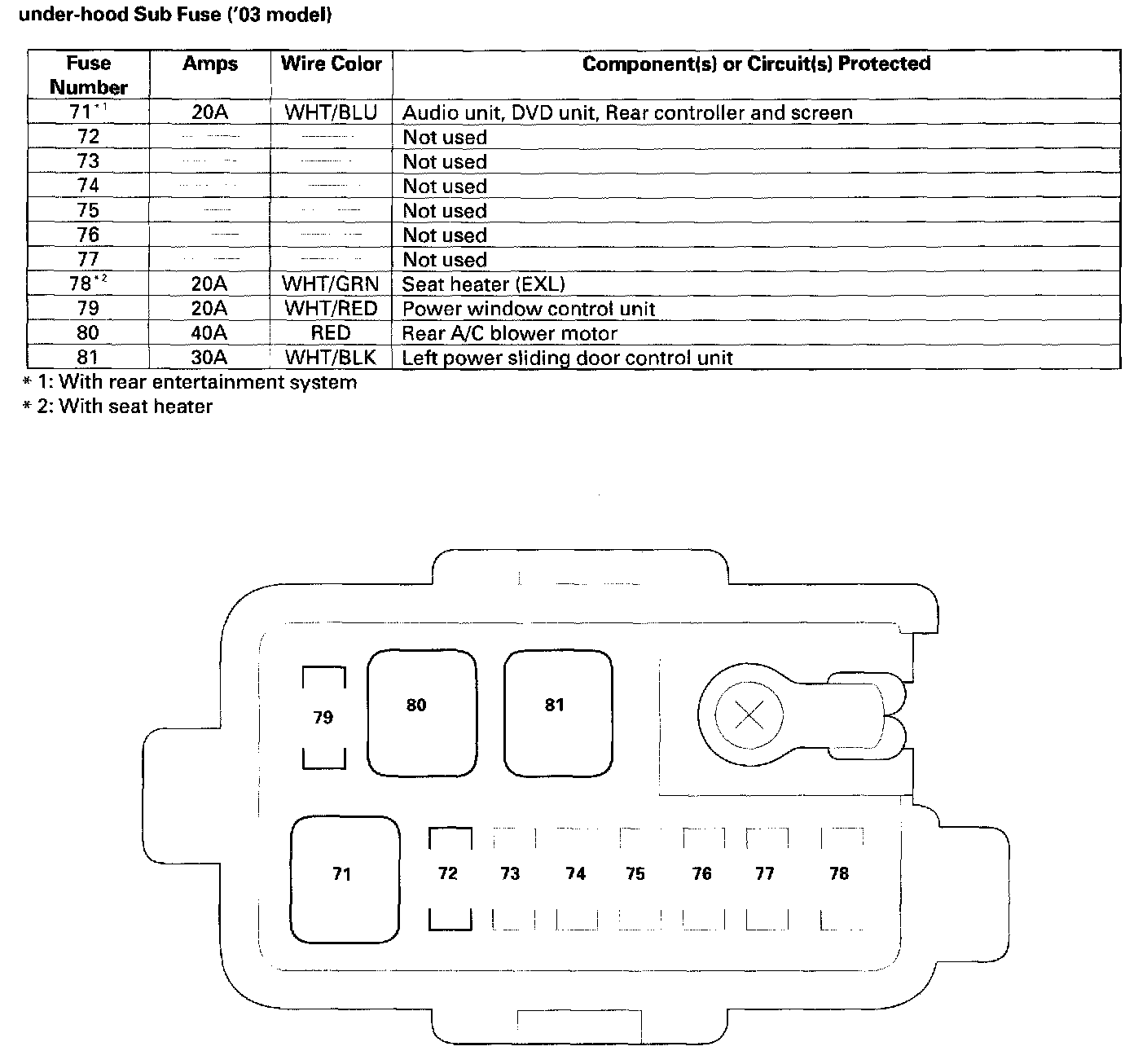

Under-hood Sub Fuse:

Exterior Lights Component Location Index:

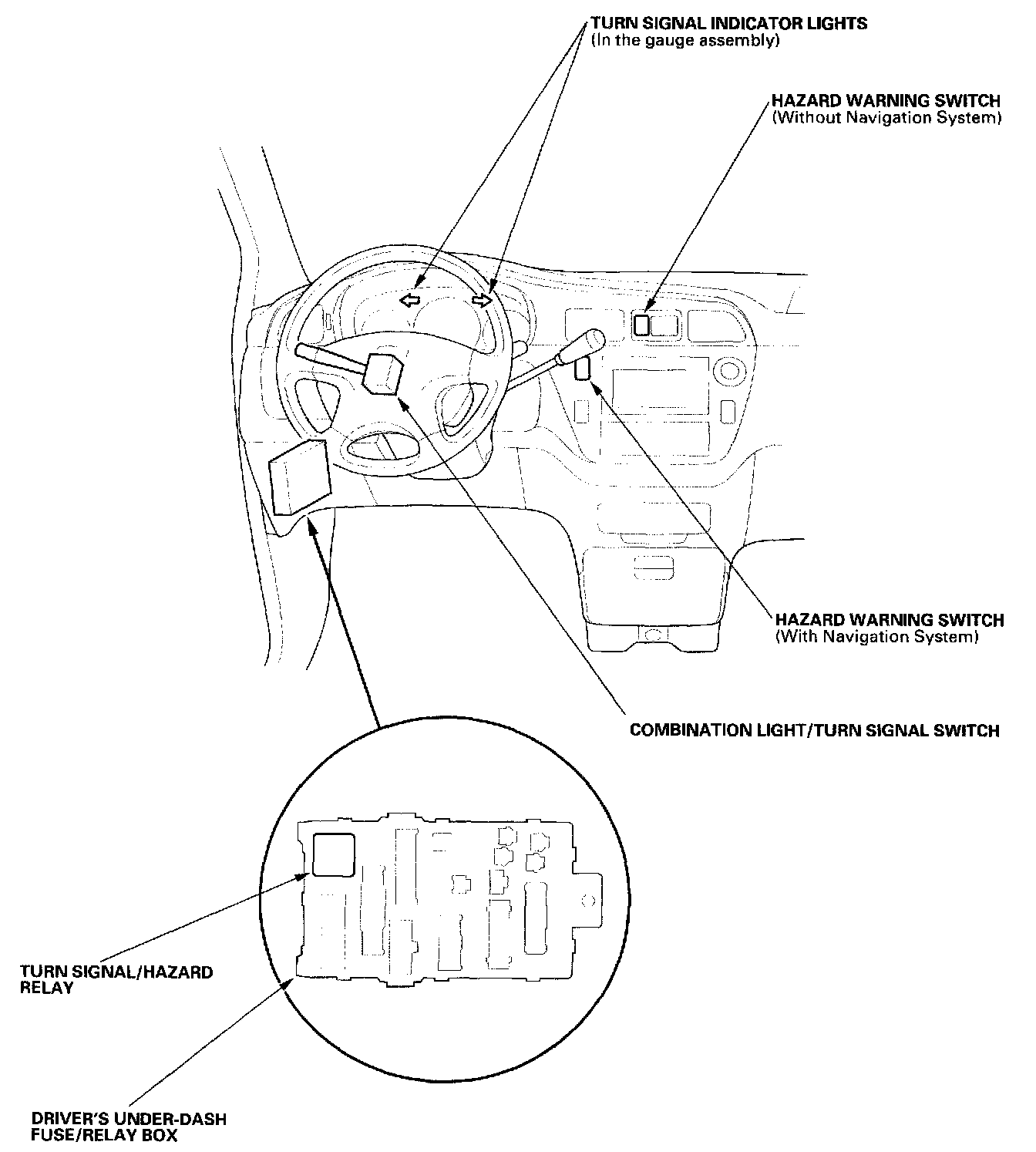

Turn Signal/Hazard Flasher Component Location Index:

Power Windows Component Location Index:

Starting System Component Location Index:

Charging System Component Location Index:
